I. Product Overview

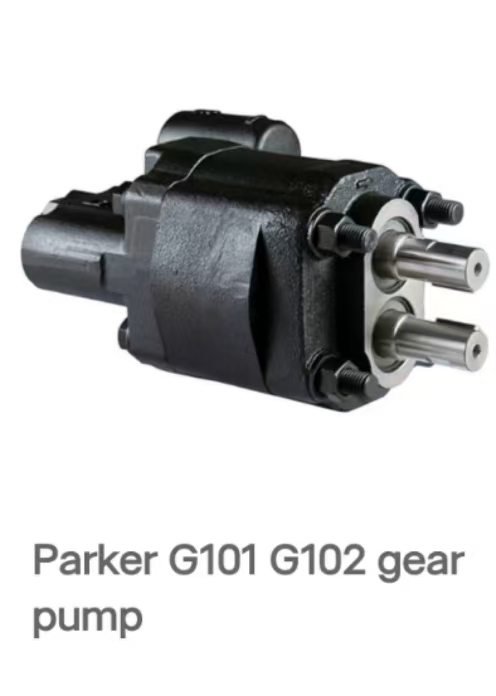

The Parker G101/G102 series gear pumps are high-performance hydraulic gear pumps specifically designed by Parker Hannifin for heavy-duty applications such as dump trucks and construction machinery. Built with cast iron construction, these pumps offer high pressure, high flow rates, and excellent wear resistance, ensuring reliable operation in harsh industrial environments.
------
II. Key Features
1. Material & Construction
• Three-piece cast iron design: The pump body, end cover, and gears are all made of cast iron, ensuring durability under high-pressure and high-load conditions. The fully disassemblable structure simplifies maintenance and reduces long-term costs.
• Modular port configurations: Supports multiple port and mounting flange options for flexible integration into various hydraulic systems.
2. Performance Specifications
• Pressure range: Rated pressure up to2,500 psi (172 bar), with some models reaching3,500 psi (241 bar), surpassing standard gear pump capabilities.
• Flow rate & speed: Flow rates range from39–48 gpm (148–182 L/min), with a maximum rotational speed of2,400 rpm, meeting the rapid actuation demands of heavy equipment.
• Temperature tolerance: Operates in hydraulic oil temperatures from-20°C to 80°C, adapting to extreme environments.
3. Critical Components
• High-pressure shaft seals: Utilizes Taiwanese-brand high-pressure seals to prevent leaks and extend service life.
• Pressure-balanced thrust plate: Balances axial forces to reduce wear and improve efficiency.
• Heavy-duty roller bearings: Features U.S.-branded bearings for long-lasting performance, even in rugged dump truck applications.
4. Safety & Control
• Integrated relief valve: Factory-set to2,000 psi or 2,500 psito prevent system overpressure and ensure equipment safety.
• Manual/pneumatic control options: Supports cab-mounted manual control or optional pneumatic shift control for enhanced operational flexibility.
------
III. Technical Details
1. Mounting & Configuration
• Shaft options:
• G101: Dual-shaft design for remote PTO (Power Take-Off) installation, supporting bidirectional rotation.
• G102: Single-shaft design for direct mounting to vehicle drivetrains.
• Oil circuit connections: Compatible with 2-wire or 3-wire systems for controlling single-acting cylinders, adaptable to various hydraulic circuit designs.
2. Customization Options
• Flow & pressure adjustments: Tailorable to specific application requirements.
• Rotation direction & port configurations: Customizable for left-hand or right-hand rotation, with adjustable port positions and types.
• Mounting brackets: Optional C101/G101-specific brackets simplify installation.
------
IV. Applications
1. Dump Trucks: Powers lifting systems for rapid cargo unloading, improving operational efficiency.
2. Construction Machinery: Provides hydraulic power for excavators, loaders, and other equipment, supporting bucket and boom movements.
3. Industrial Equipment: Suitable for machine tools, presses, and other devices requiring high-pressure hydraulic systems.
4. Agricultural Machinery: Drives hydraulic functions in tractors and harvesters for tilling, harvesting, and other operations.
------
V. Advantages Summary
1. High Reliability: Cast iron construction and heavy-duty components ensure long-term stability in demanding conditions.
2. High Efficiency: High-pressure and high-flow design meets the stringent hydraulic power requirements of heavy equipment.
3. Flexibility: Modular design and customization options allow rapid adaptation to diverse equipment and hydraulic systems.
4. Safety: Integrated relief valves and pressure-balancing technology reduce system failure risks and extend equipment lifespan.
