Wet Wire Drawing Machine Series

The company's 160-380 type wet drawing machine has an inlet diameter range 0.35-3.8MM and an outlet diameter range is 0.035-1.6MM. Featuring high automation, stable operation, low noise, and easy maintenance, it has gradually established a good reputation in the market. Notably, the newly developed double-wire wet drawing machine simplifies subsequent production processes by enabling the simultaneous drawing of two wires,increasing drawing efficiency by 20%. This equipment uses servo motor wiring and constant tension control, achieving energy savings of about 10% and increasing site utilization by approximately 30%. Additionally, drawing equipment specifically developed for the photovoltaic industry—such as for tungsten and carbon wires—focuses on producing finer, higher-quality cutting wires.The company's wet drawing machines can all be equipped with an automatic disc changing take-up machine, reducing the frequency of spool changes by workers, saving costs, and improving efficiency.

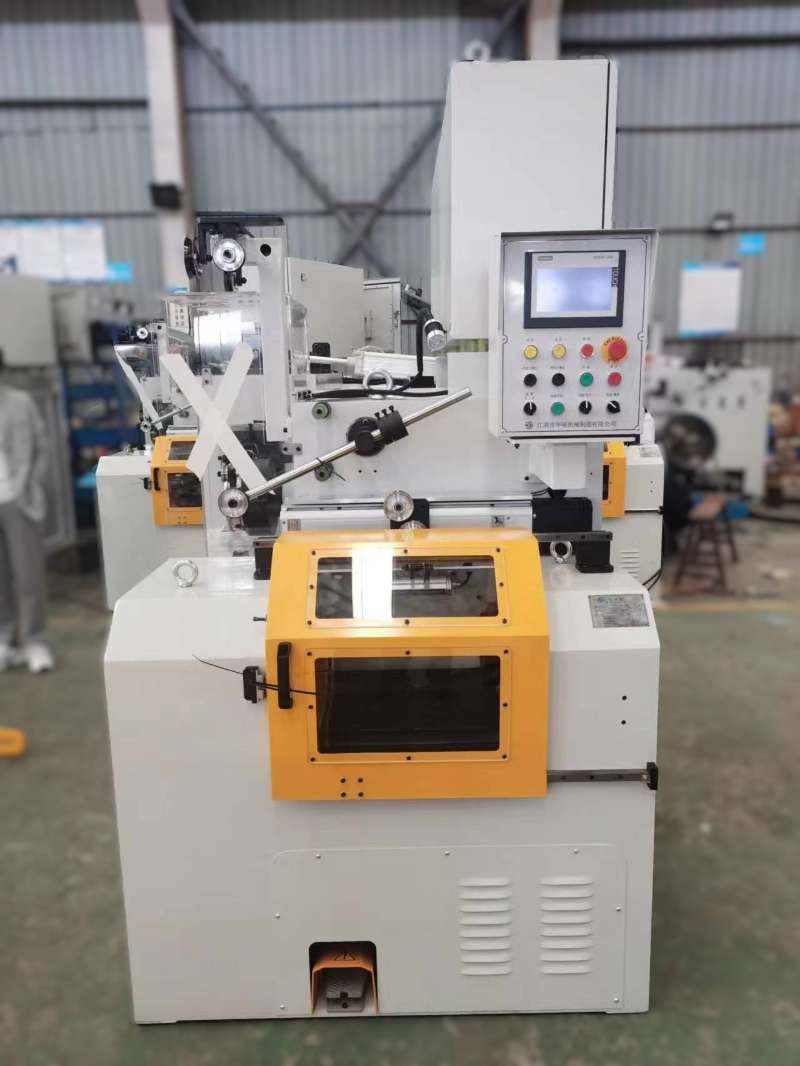

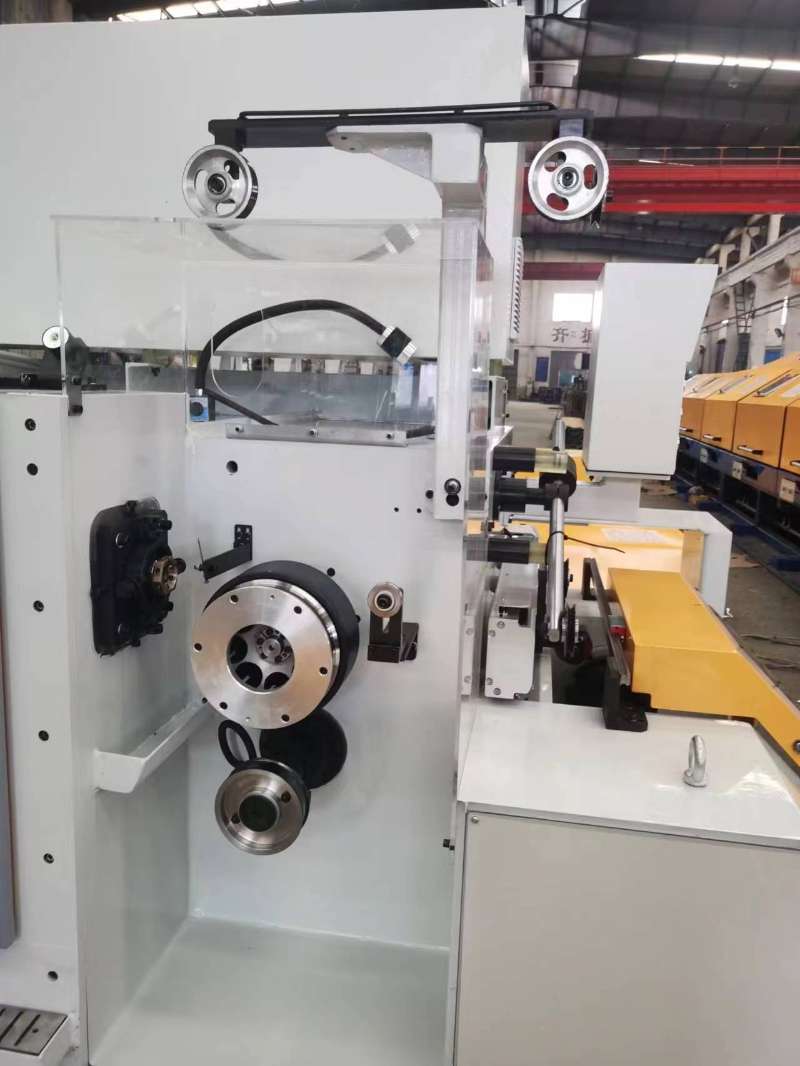

Fine Wire Wet Drawing Machine Series/Flipping Water Tank Wire Drawing Machine Series

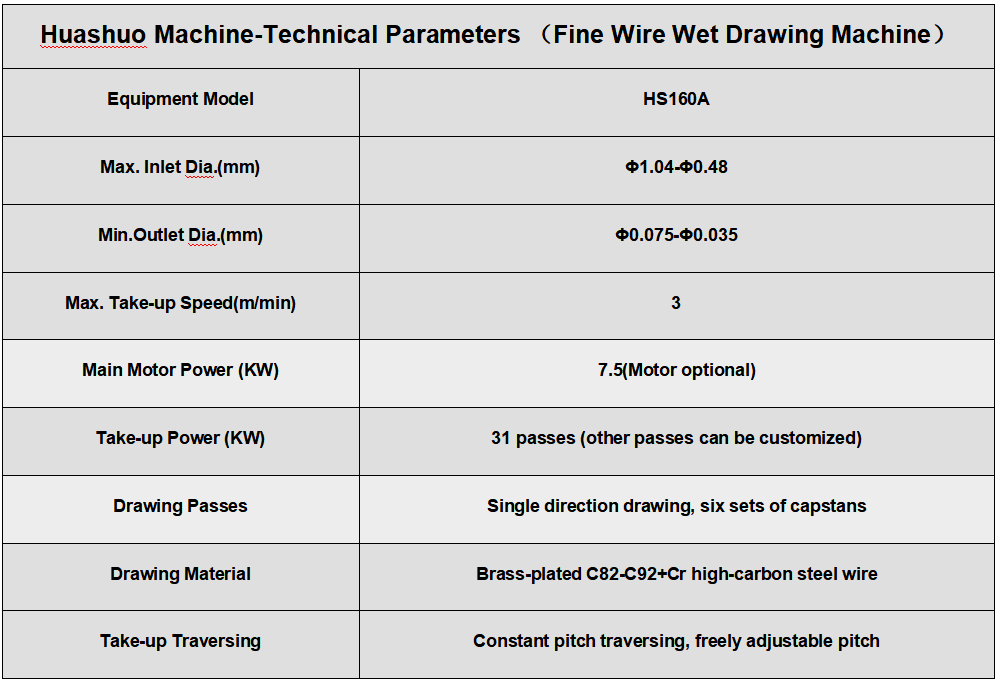

Our Fine wire wet drawing machine consists of pay-off stand, main unit, take-up unit and electric control cabinet.Inlet diameter: 0.48–1.04 mm, outlet diameter: 0.035–0.075 mm.Mainly used for drawing brass-plated C82-C92+Cr high-carbon steel wire(Fine Wire Wet Drawing Machine For Brass-plated High-carbon Steel Wire).Custom mechanical design available according to customer requirements.High automation, stable operation, low noise and easy maintenance.

Fine Wire Wet Drawing Machine For Inlet Wire 0.48 to 1.04 mm

Fine Wire Wet Drawing Machine For Outlet Wire 0.035 to 0.075 mm
