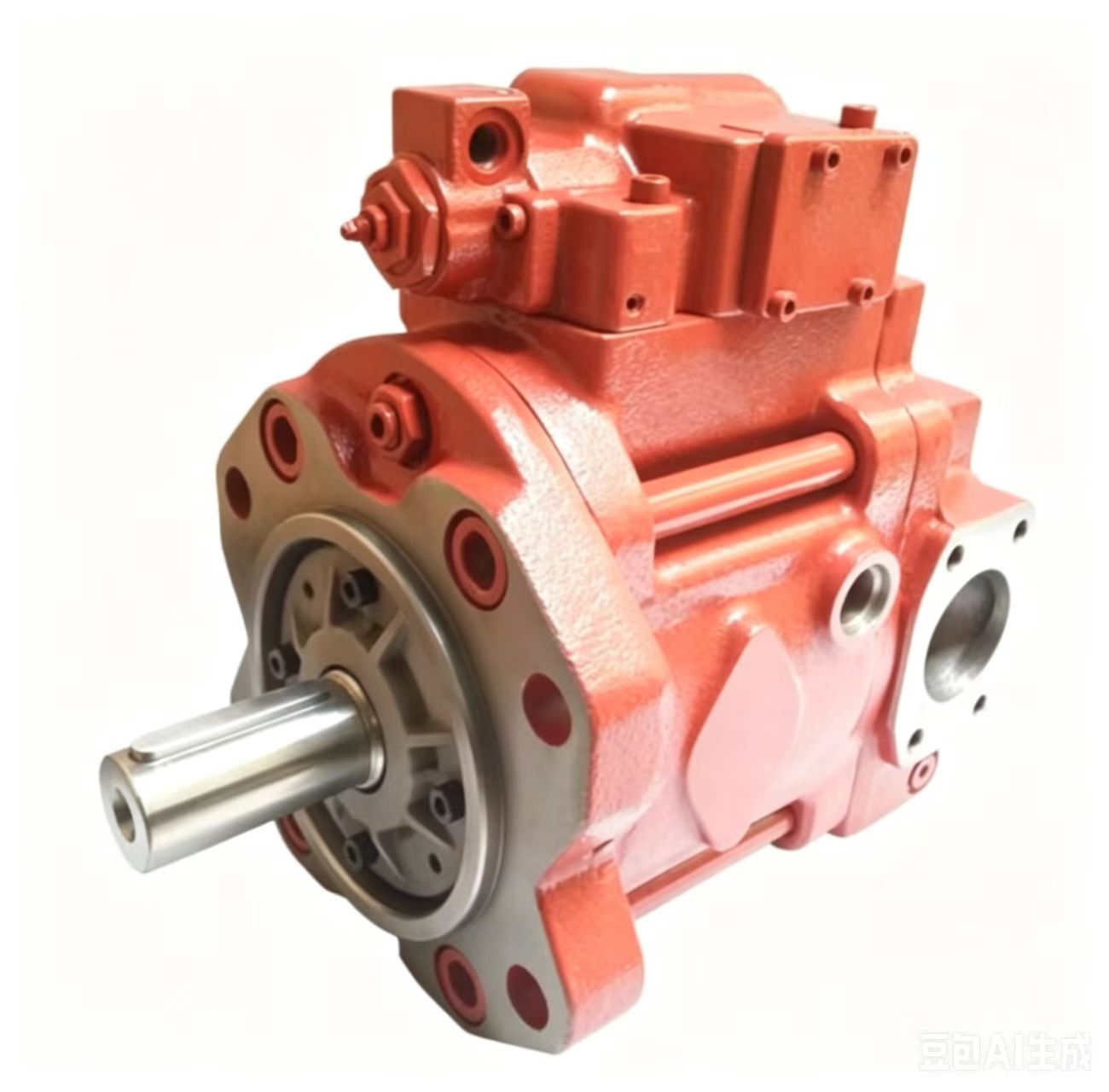

Kawasaki K3VG series Hydraulic piston pump

Kawasaki K3VG series Hydraulic piston pump

3 month ago

6 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

Model:K3V/K3VG/K3VL
Name:variable axial piston pump
Pump Type:piston pump
Displacement: 63cc~280cc
Place of Origin:Zhejiang, China
Power:Hydraulic Packaging & Delivery
Working pressure range:350bar~400bar
control mode:Pressure flow control
Material:cast iron
Operating mode:open circuit
Warranty:1 Year
Minimum Order:1 Pieces
Supply Ability:1800 Piece/ Month

1. Key Features

1. High Efficiency & Energy Saving

• Optimized design improves volumetric and mechanical efficiency, reducing energy loss.

2. Multiple Control Modes

• Supports flow control, pressure control, power control, and compound control (e.g., flow-pressure combined control) to meet diverse requirements.

• Equipped with the high-precision electro-hydraulic servo regulatorILIS (Intelligent Linear Servo)for precise flow adjustment via electrical signals with fast response.

3. Low Noise Operation

• Low-noise design minimizes vibration and noise, suitable for environments with strict noise requirements.

4. Fire-Resistant Fluid Compatibility

• Pump body materials and seals are compatible with fire-resistant hydraulic fluids, ideal for high-temperature or flammable environments.

5. Long Service Life

• High-strength materials for critical components (e.g., bearings, cylinder blocks) enhance wear resistance and fatigue resistance.

2. Technical Specifications

• Displacement Range: 63 cm³/rev to 560 cm³/rev (Models include K3VG63, K3VG112, K3VG180, K3VG280, etc.).

• Pressure Ratings:

• Rated Pressure: 34.3 MPa

• Peak Pressure: 39.2 MPa

• Speed Range:

• Maximum Speed: 12,600 min⁻¹ (K3VG63) to 1,600 min⁻¹ (K3VG280), varying by model.

• Self-Priming Speed: Up to 12,600 min⁻¹ (requires suction pressure ≥ -0.01 MPa).

• Weight: Approx. 48 kg (K3VG63) to 300 kg (K3VG280DT).

3. Applications

The K3VG series is widely used in:

1. Industrial Equipment: Injection molding machines, die-casting machines, machine tools requiring precise flow and pressure control.

2. Construction Machinery: Excavators, cranes, and other mobile machinery demanding high power density and reliability.

3. Special Environments: Metallurgy, mining, and other high-temperature, high-load, or flammable settings (due to fire-resistant fluid compatibility).

4. Model Comparison

【表格】

Model Displacement (cm³/rev) Rated Pressure (MPa) Peak Pressure (MPa) Typical Applications

K3VG63 63 34.3 39.2 Small industrial equipment, light machinery

K3VG112 112 34.3 39.2 Medium-sized injection molding machines, die-casting machines

K3VG180 180 34.3 39.2 Large construction machinery, metallurgical equipment

K3VG280DT 280×2 34.3 39.2 Dual-pump tandem high-pressure applications

5. Advantages

• High Efficiency & Energy Conservation: Reduced energy consumption through optimized design and control modes.

• Precise Control: ILIS regulator enables linear flow response to electrical signals, ideal for automation systems.

• Strong Adaptability: Compatible with various hydraulic fluids; stable operation from -20°C to +80°C.

• Easy Maintenance: Modular design simplifies repairs; long-lasting critical components minimize downtime.

6. Selection Guidelines

• Choose a model with displacement matching the required flow and pressure.

• Prioritize ILIS-equipped models for high-precision control needs.

• Verify fire-resistant fluid compatibility for high-temperature or flammable environments.
