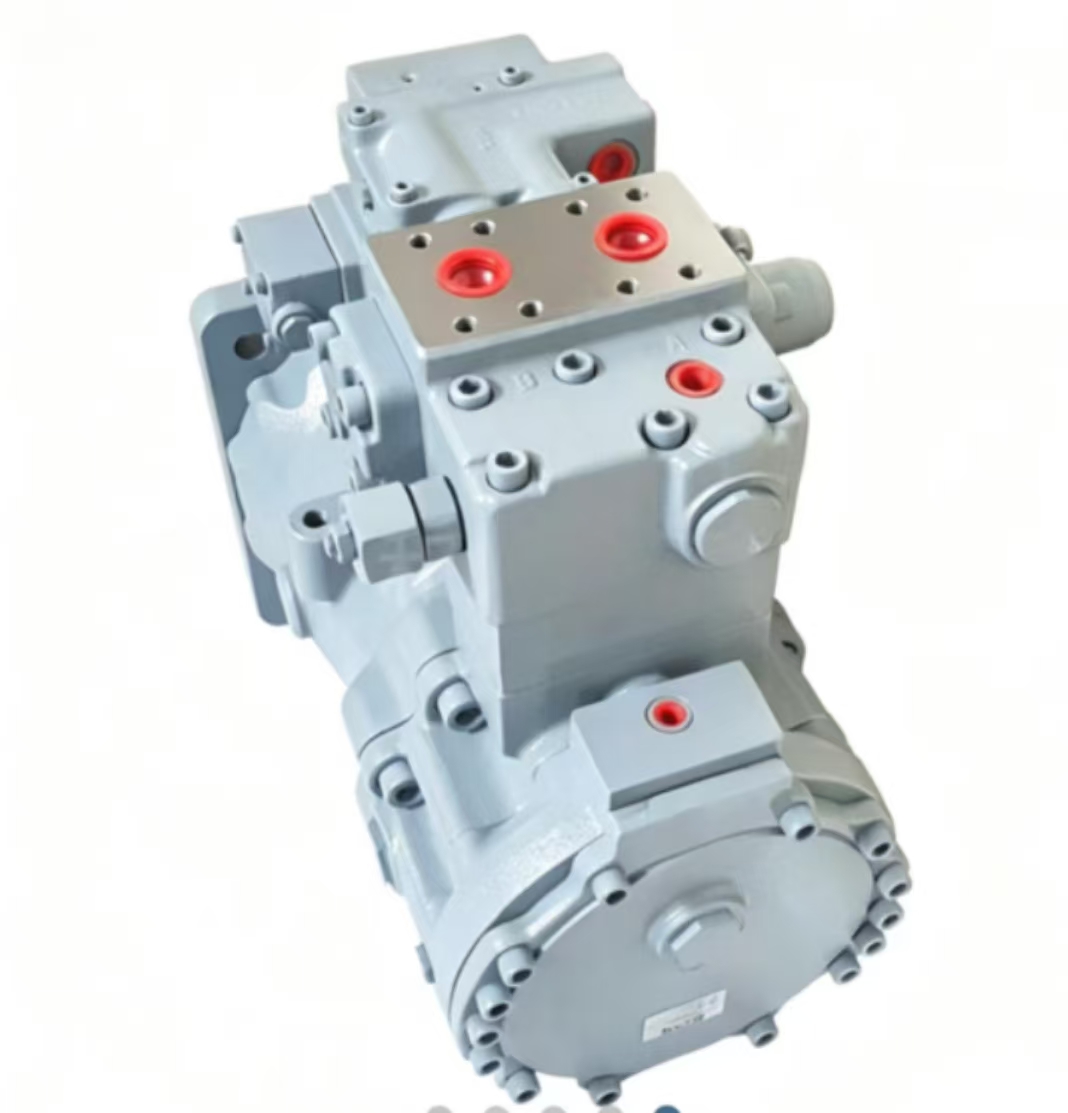

Kawasaki M3 series hydrualic piston motor

Kawasaki M3 series hydrualic piston motor

3 month ago

4 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

The Kawasaki M3 series hydraulic piston motor is a swashplate-type axial piston motor, available in both fixed displacement (M3X) and variable displacement (M3B) versions. It is specifically designed for industrial equipment such as mobile crushers, cranes, and drilling rigs, featuring high torque output, compact structure, and flexible control. Below is the detailed information:

I. Product Features

1. High Torque Output:

• M3X Series (Fixed Displacement): Displacement ranges from 195 to 800 cm³, with a maximum output torque of up to 3,750 Nm (calculated based on the maximum displacement).

• M3B Series (Variable Displacement): Displacement range is the same as M3X, but it allows for displacement adjustment through hydraulic or electronic control to meet varying operational requirements.

2. Compact Structure:

• The piston motor section, mechanical brake section, and various auxiliary valve sections are reasonably arranged, achieving an ultra-compact design that saves installation space.

• The mounting flange section is designed with ample space, allowing direct connection to the gear ring of a reducer and simplifying the system structure.

3. Flexible Control:

• The M3B series supports hydraulic or electronic displacement control, enabling precise adjustment of motor output based on actual needs.

• It offers multiple control options, such as load sensing and torque limiting, to meet complex operational requirements.

4. High Reliability:

• High-load bearings and a frictionless contact mechanism between piston shoes are employed to extend service life.

• Key components are optimized to reduce wear and the risk of failure.

II. Application Fields

The M3 series hydraulic piston motors are widely used in the following fields:

1. Mobile Crushers: Providing stable high torque output to drive crushers for efficient operation.

2. Cranes: Serving as slewing motors to enable smooth rotation and precise positioning of cranes.

3. Drilling Rigs: Driving drill rods for rotary drilling and meeting the torque and speed requirements of drilling rigs.

III. Technical Parameters

【表格】

Parameter/Series M3X (Fixed Displacement) M3B (Variable Displacement)

Displacement Range (cm³) 195-800 195-800

Maximum Output Torque (Nm) 3,750 (calculated based on maximum displacement) Adjustable, with a maximum value the same as M3X

Speed Range (min⁻¹) 1,900-1,200 (calculated based on maximum displacement) Adjustable based on displacement, with a wider range

Control Method Fixed displacement Hydraulic or electronic displacement control

Installation Method Flange mounting Flange mounting

IV. Model Examples

1. M3X200:

• Displacement: 200 cm³

• Suitable for applications requiring medium torque output, such as small cranes or drilling rigs.

2. M3X530:

• Displacement: 530 cm³

• Provides high torque output, suitable for large mobile crushers or heavy-duty cranes.

3. M3B280:

• Displacement Range: Variable, with a maximum of 280 cm³

• Supports displacement adjustment to adapt to varying operational requirements, such as drilling rigs that require frequent speed changes.
