Product details

Normally Open Solenoid Valve For Pulse Oximeter

Stable Airflow Switching for Medical Monitoring Devices

Pulse oximeters and portable medical monitoring equipment require stable airflow control to maintain accurate pressure response during testing and monitoring procedures. If the pneumatic system reacts too slowly, measurement stability and device consistency can easily be affected.

Parameter	Specification
Model No.	MXV1220-01
Rated Voltage	DC3.0V / DC3.7~12V (Series)
Rated Current	60±10% mA
Rated Power	1.8±10% W / 0.34W (Reference)
Air Tightness	＜3.0mmHg/min
Exhaust Speed	＜5s (300mmHg→15mmHg, 100cc)
Structure	Normally Open, One-way
Rated Load	300mmHg
Air Circuit Status	Port 1-2 closed when energized, open when de-energized

The Normally Open Solenoid Valve For Pulse Oximeter is developed for compact medical airflow systems that need reliable switching performance and controlled pressure release. The MXV1220-01 As a Normally Open Solenoid Valve, it is especially suitable for compact health care products and portable diagnostic equipment requiring stable pneumatic control.

Fast Exhaust Response Helps Improve Pressure Accuracy

Medical monitoring equipment often performs repeated pressure adjustment during operation. Slow pressure release may affect measurement response and lower operating efficiency.

Normally Open Solenoid Valve For Pulse Oximeter

The MXV1220-01 3 way normally open solenoid valve keeps exhaust speed below 5 seconds under 300mmHg pressure conditions, helping airflow return to stable status more quickly. Its air tightness below 3.0mmHg/min also helps reduce leakage during repeated operation cycles.

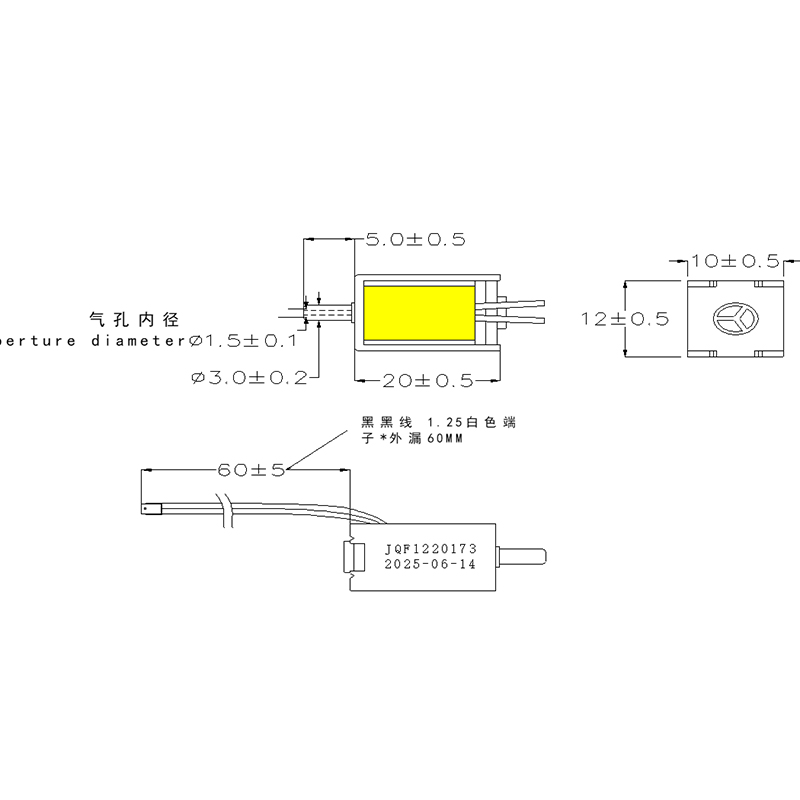

Product Dimensions：

The valve supports rated loads up to 300mmHg, making it suitable for low-pressure medical airflow systems and intelligent monitoring devices.Ming Xinxiang 3.0V normally open solenoid valve, it supports stable switching actions inside compact electronic medical products and intelligent sensing equipment.

Compact Layout Supports Portable Device Design

Portable pulse oximeters and wearable monitoring equipment continue moving toward lighter and smaller product structures. Oversized pneumatic components usually make internal layouts more difficult and reduce assembly flexibility.

The 3 way normally open solenoid valve structure of the MXV1220-01 helps manufacturers optimize airflow routing inside compact products while keeping stable switching performance. Its low current consumption of 60±10% mA also helps reduce power load for battery-powered medical equipment.

The Normally Open Solenoid Valve For Pulse Oximeter performs well in products requiring stable low-pressure airflow switching and continuous pneumatic response.Its smooth airflow control helps improve pressure consistency during repeated monitoring cycles.
