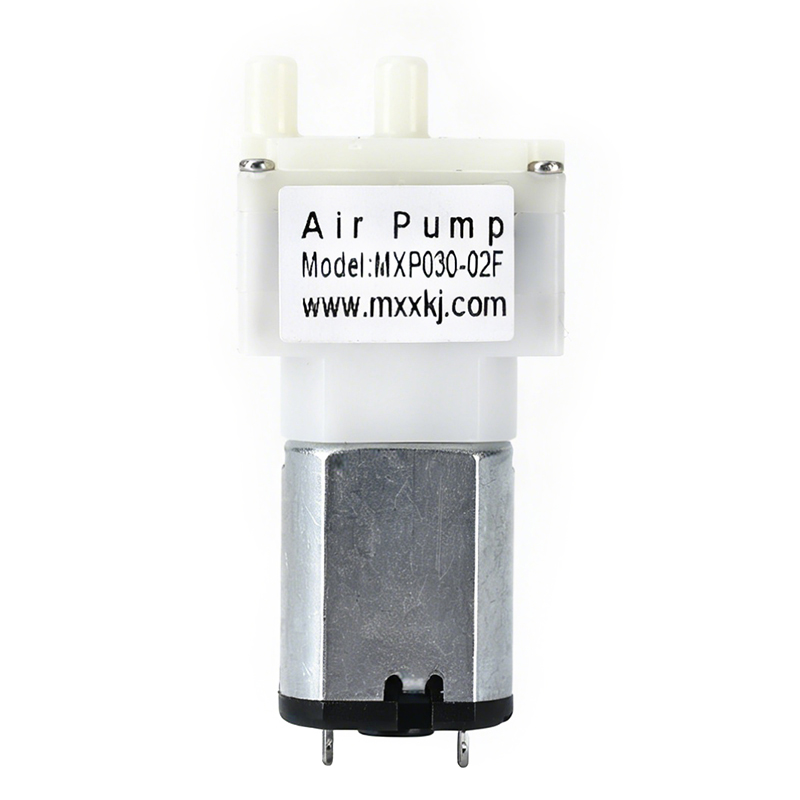

MXP030-02F Miniature Vacuum Pumps Household Appliances

Compact Vacuum Power for Smart Small Appliances

Many compact household products today need stable vacuum pressure inside a very limited internal space. If the pump is too large or airflow performance becomes unstable, the whole product can feel less responsive during daily use.

Parameter	Specification
Model No.	MXP030-02F
Product Type	Micro Vacuum Pump
Rated Voltage	DC5.0V (Compatible with DC2.0~6.0V)
Rated Current	＜450mA
Power Range	0~1.0W
No-load Flow Rate	1.3~1.7L/min (Typical) / 0.6~1.3LPM (Range)
Noise Level	＜65dB
Pressure Performance	Max inflation pressure＞350mmHg / -50~120kPa
Working Medium	Air
Operating Environment	0~50℃, 75%RH
Applications	Beauty equipment, adult supplies, healthcare equipment, small household appliances

The MXP030-02F Miniature Vacuum Pumps For Small Household Appliances is designed for portable electronic products that require compact size, low noise, and steady negative pressure output. Its lightweight structure makes installation easier for modern smart appliances and handheld devices.

Ming Xinxiang Miniature Vacuum Pump this model is widely used in compact air-pressure systems where space saving and stable suction performance both matter.

Stable Negative Pressure Helps Devices Run Smoother

Small beauty devices, healthcare products, and portable vacuum equipment often repeat suction cycles continuously during operation. Weak vacuum stability can reduce working efficiency and affect overall user experience.

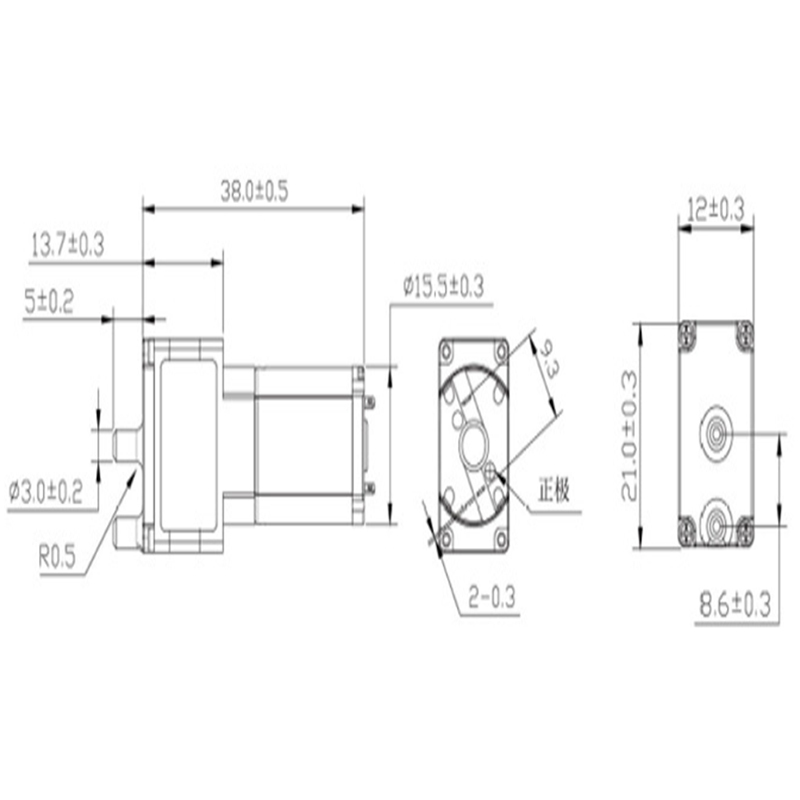

Product Dimensions：

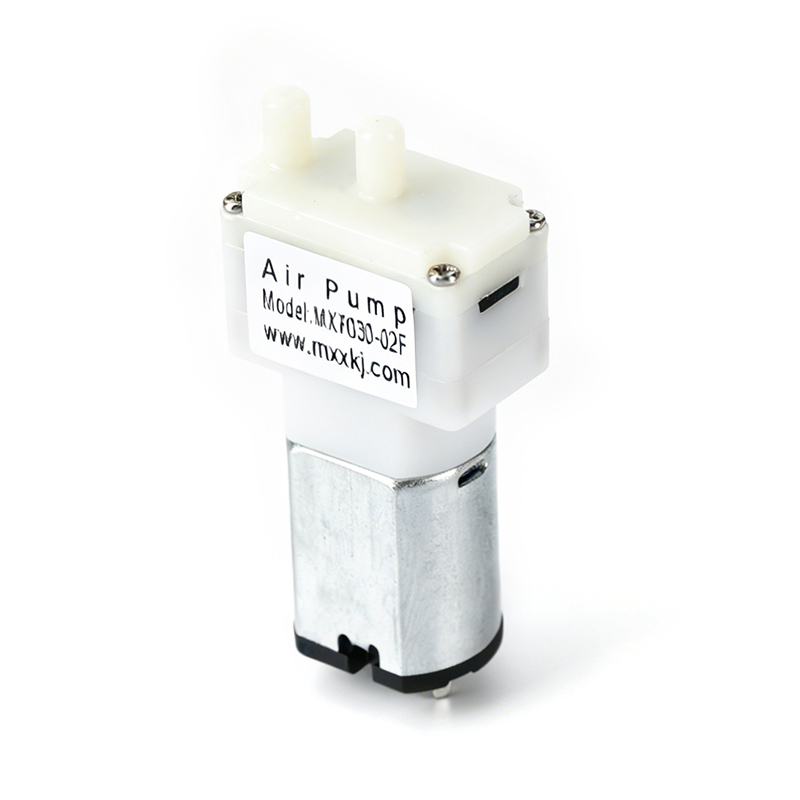

The MXP030-02F vacuum pump small size supports vacuum pressure from -50~120kPa while maintaining airflow between 1.3~1.7L/min under typical conditions. This allows the pump to deliver smoother suction response during repeated operation.

Its maximum inflation pressure above 350mmHg also helps support products requiring both vacuum and airflow functions inside the same system.Ming Xinxiang mini air vacuum pump it works well in intelligent electronic devices requiring compact pneumatic control and reliable negative pressure output.

Low Noise Design Fits Daily Use Products

For portable household products, operating noise can directly affect user comfort. Loud vacuum pumps usually feel distracting during long usage periods, especially in personal care equipment and desktop devices.

The MXP030-02F small vacuum pump keeps working noise below 65dB, helping products maintain quieter operation during daily use. Combined with power consumption below 1.0W, it also helps reduce unnecessary energy load inside portable electronic systems.Its wide voltage compatibility from DC2.0V~6.0V gives manufacturers more flexibility during product design and electronic integration.

Ming Xinxiang The MXP030-02F Miniature Vacuum Pumps For Small Household Appliances is suitable for products requiring compact vacuum generation and stable airflow performance.
