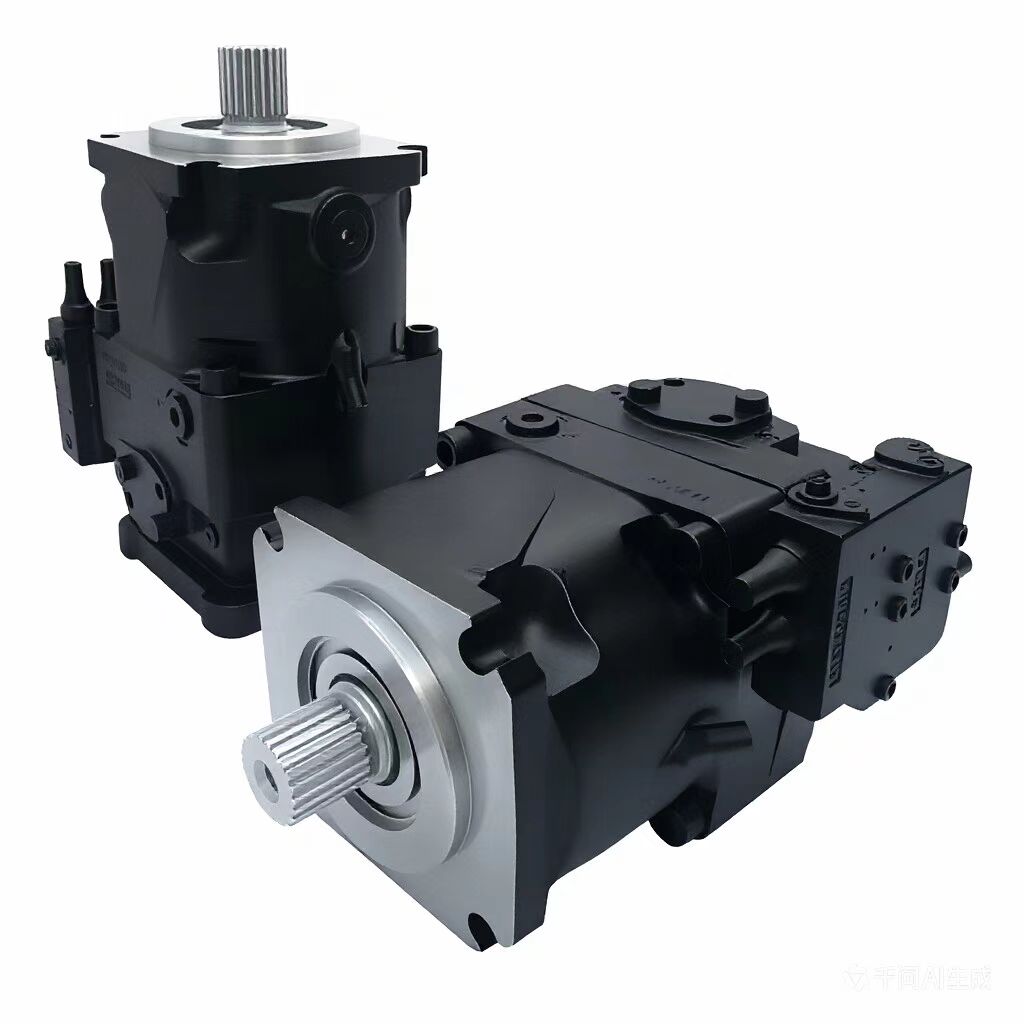

Danfoss D1P Series Hydraulic Pumps: Detailed Overview
I. Product Overview
The Danfoss D1P series hydraulic pumps are high-performance variable-displacement axial piston pumps designed for heavy-duty applications in open-circuit hydraulic systems. Developed by Danfoss Power Solutions, these pumps feature high pressure, high efficiency, and exceptional reliability, making them ideal for construction machinery, marine engineering, oil and gas, mining equipment, and other demanding industries.
II. Key Specifications
1. Displacement Options
• Available in six displacement sizes:65cc, 130cc, 145cc, 160cc, 193cc, and 260cc.
• The newly introduced160cc displacementfills a market gap, sharing the same housing dimensions as the 130cc/145cc pumps for seamless system optimization.
2. Pressure and Speed Ratings
• Continuous operating pressure: Up to350 bar (5,000 psi).
• Intermittent operating pressure: Up to400 bar (5,802 psi).
• Maximum speed: Integrated boost pumps support operation at2,500 rpm, meeting high power density requirements.
3. Flow Range
• Rated flow capacity of up to400 liters per minute (106 GPM), suitable for large-flow applications.
III. Technical Features
1. Efficient Design
• Tilted piston bores and spherical port plates: Reduce friction losses and enhance rotary group efficiency.
• Low-friction roller bearings: Standard configuration for extended service life.
• Integrated boost pumps: Optimize cold-start performance and support high-speed operation.
2. Versatile Control Options
• Full range of standard control methods:
• Pressure Compensation (PC): Maintains stable system pressure.
• Load Sensing (LS): Adjusts flow based on load demand.
• Torque Control (TC): Prevents engine stalling or motor overload.
• Electro-Hydraulic Proportional Displacement Control (EDC): Enables precise speed control with manual override capability.
• Compatible with Danfoss Plus+1 software for plug-and-play commissioning and intelligent management.
3. Harsh Environment Adaptability
• Robust rotary components: Ensure reliable performance under high temperatures, pressures, and contamination.
• Mechanical control configurations: ATEX-certified for hazardous environments (e.g., coal mining, oil and gas).
• Explosion-proof design: EDC control meetsMA (coal safety) certificationandGroup II oil/gas explosion-proof standards, isolating flammable/explosive media from electrical components.
IV. Applications
1. Construction Machinery
• Concrete pump trucks, excavators, cranes, etc., delivering powerful and precise control.
• Case Study: A concrete pump truck upgraded with a D1P193 pump achieved increased pumping force and speed, pumping over120,000 m³of concrete in two years with2,400 hoursof fault-free operation.
2. Marine and Oil & Gas Engineering
• Ships, drilling platforms, and oil/gas storage equipment, adapting to highly corrosive and high-pressure environments.
• Explosion-proof combination: D1P pumps paired with PVG explosion-proof multi-way valves enhance operational efficiency while reducing throttling heat loss.
3. Mining and Metallurgy
• Mining drills, crushers, and material handling equipment, meeting heavy-duty, continuous operation demands.
• Advantage: High reliability design minimizes downtime and extends equipment lifespan.
4. Industrial Equipment
• Steel mills, power plants, and metallurgical industries, supporting high-pressure, large-flow hydraulic systems.
V. Product Advantages
1. Superior Performance
• Stable high-pressure output with rated flow and pressure covering a wide range of operating conditions.
• EDC control enables precise speed adjustment, improving operational efficiency.
2. Safety and Reliability
• Explosion-proof design meets the highest safety standards for coal mining and oil/gas sectors.
• Mechanical torque control prevents engine overload, ensuring system stability.
3. Flexible Integration
• Standard universal mounting and connection methods simplify piping installation.
• Seamless integration with Danfoss PVG128/256 high-flow multi-way valves for systemized solutions.
4. Easy Maintenance
• Optimized design reduces preventive maintenance requirements and extends maintenance intervals.
• Shared control platform simplifies commissioning and lowers operational costs.
VI. Typical Application Cases
• Concrete Pump Trucks: D1P193 pumps combined with S45/SNP2 series pumps enhance pumping efficiency and reliability.
• Coal Mining Equipment: Explosion-proof D1P pumps paired with PVG-Ex multi-way valves meetGroup I explosive environment requirements.
• Oil and Gas Drilling: D1P pumps are certified forGroup II hazardous scenarios, ensuring safe operation in oil/gas fields.
