Features:
Suitable for outdoor gear, waterproof jackets, waterproof trousers, and tents, as well as for seam sealing various types of footwear—including men's and women's shoes and hiking boots.
1. To accommodate the factory's diverse range of materials and specifications, the machine's upper and lower pressure rollers can be quickly interchanged to suit various processes. This meets the specific requirements of different materials and effectively resolves issues such as deformation, wrinkling, and protruding heel stitching caused by material variations.
2. Designed to handle materials for various shoe styles, the machine features a unique pressure roller structure that allows for precise adjustment of the gap between the upper and lower rollers. This ensures a smoother, more secure bond that is highly resistant to detachment.
3. The uniquely designed, computer-controlled automatic tape feeding function allows for precise control over the tape length, thereby effectively managing costs and minimizing material waste.
4. The unique automatic tape cutting function executes precise, automated cuts, eliminating the need for manual cutting labor. This boosts operational efficiency and contributes to effective cost control.
5. The combination of a specialized reinforcement tape and a uniquely designed roller structure results in superior bonding performance—free of marks or granular textures. This streamlines the production workflow while simultaneously enhancing product quality.
6. The uniquely designed automatic edge-separating mechanism eliminates the need for manual edge separation, thereby significantly improving both the quality and efficiency of the rolling process.
7. The machine's unique structural design eliminates the need for manual hammering to flatten seams; instead, it performs this flattening process automatically, thereby boosting overall production efficiency.
8. Featuring a special variable-speed feeding system, the machine can adapt to a wide range of materials. The feeding speed can be customized and adjusted according to specific process requirements, further enhancing production efficiency.
9. The machine is equipped with a capability for pressing and bonding waterproof welts; by simply swapping in a high-power electric heating element assembly, the machine can be readily configured to apply waterproof welts. 10. Featuring a uniquely designed curved-arm synchronous feeding mechanism, this machine is capable of handling materials of various shapes and curvatures, performing functions such as roller pressing and reinforcement lamination.
11. The machine is equipped with a data memory and storage function, allowing users to configure parameters—such as automatic cutting and feeding lengths—to suit materials of varying dimensions and specific processing requirements. Furthermore, it supports multi-segment length programming and batch output, thereby enhancing production efficiency and standardization.
12. Integrated with a full-color touchscreen Human-Machine Interface (HMI), the machine offers faster, simpler, and more convenient operation.
Technical Parameters:

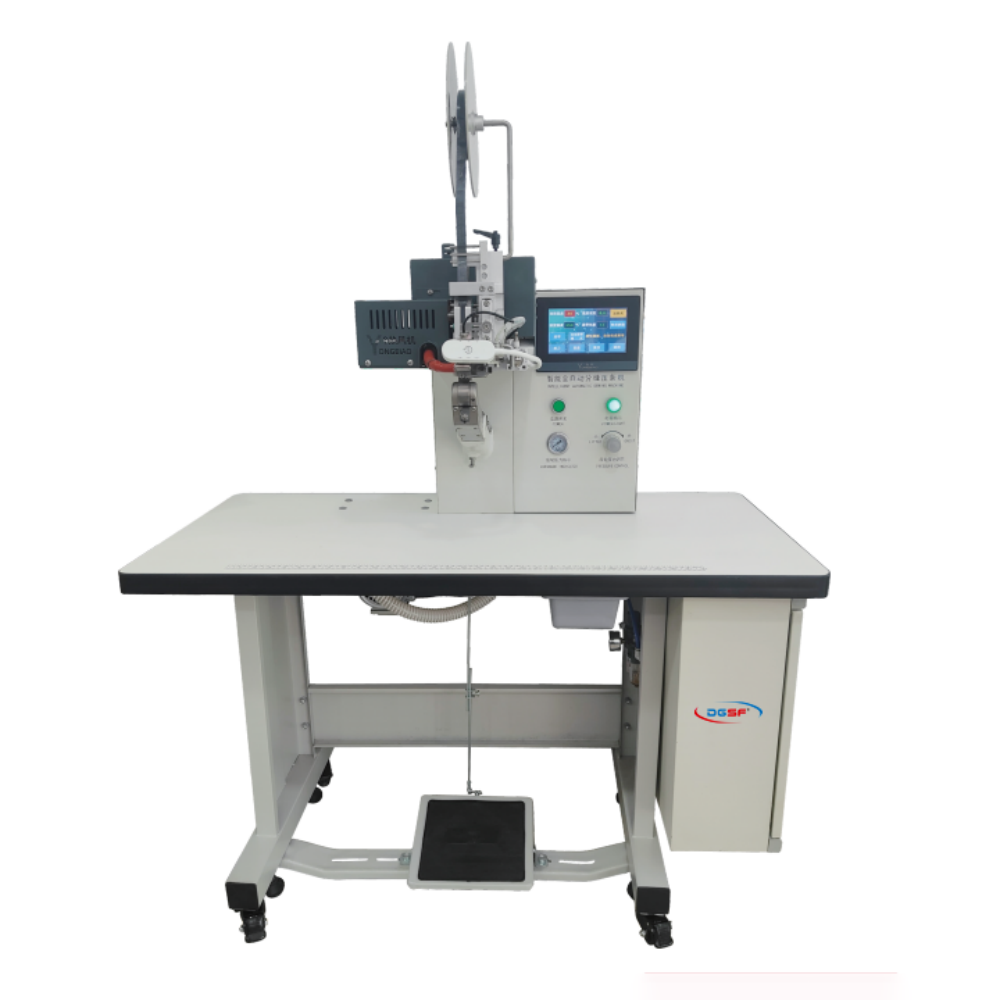

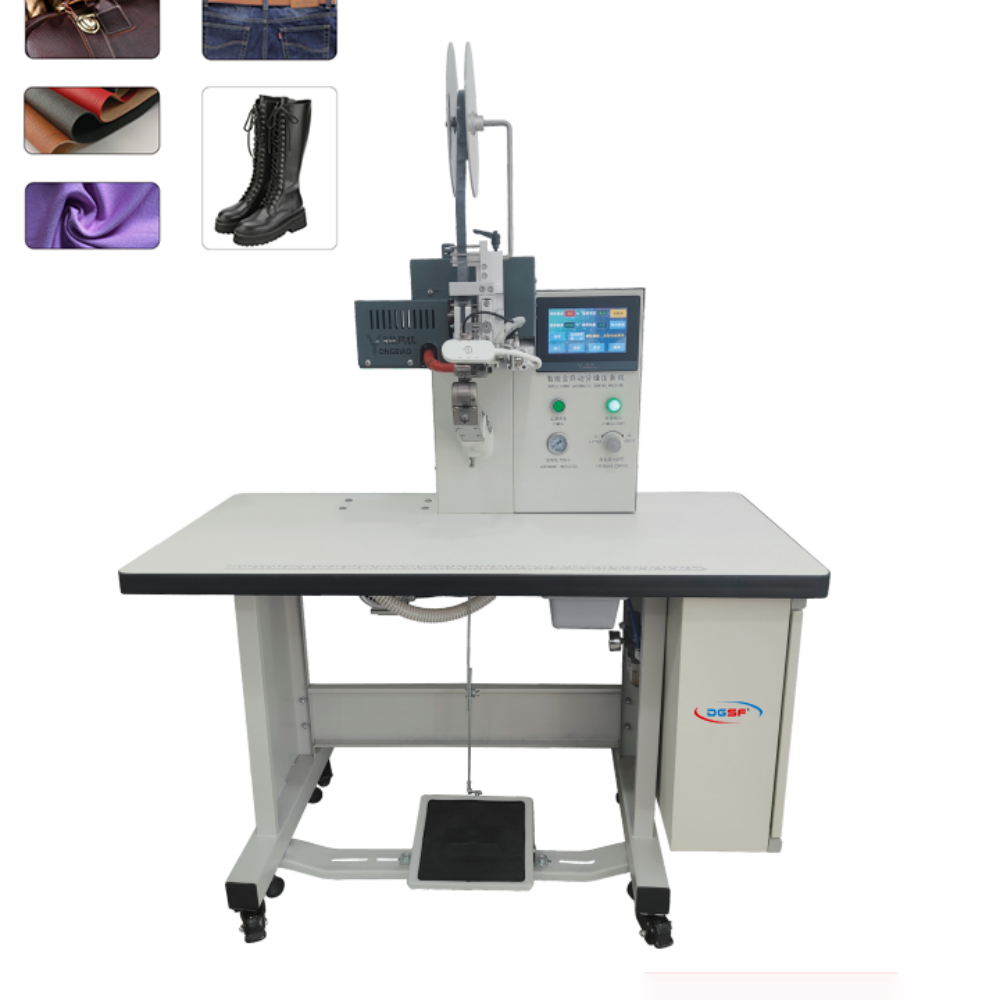

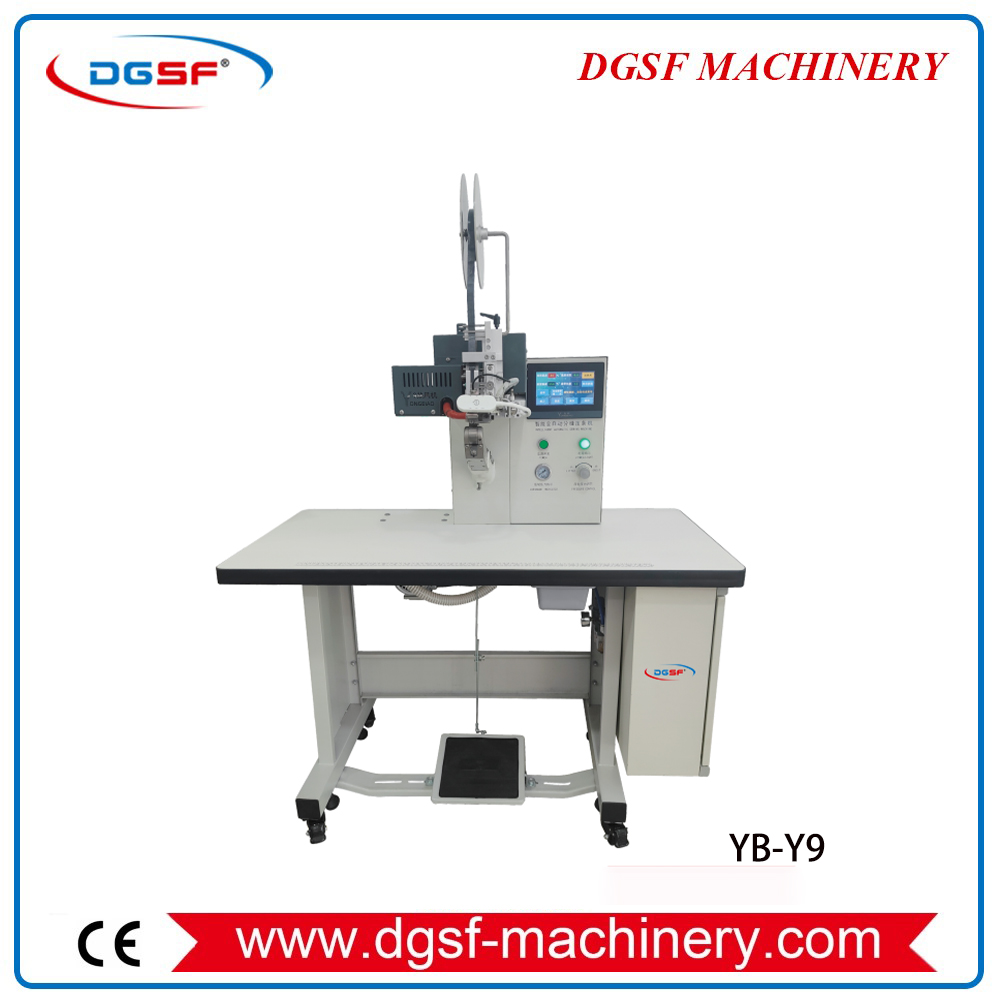

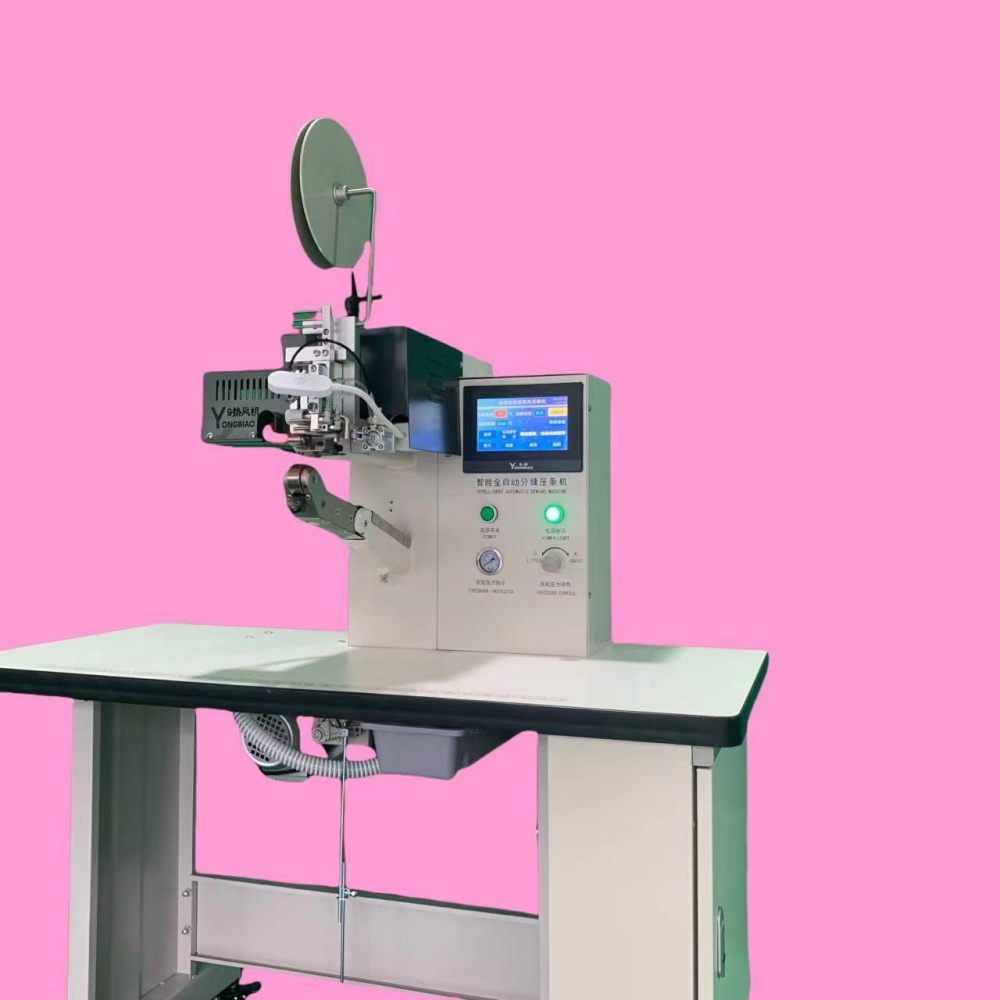

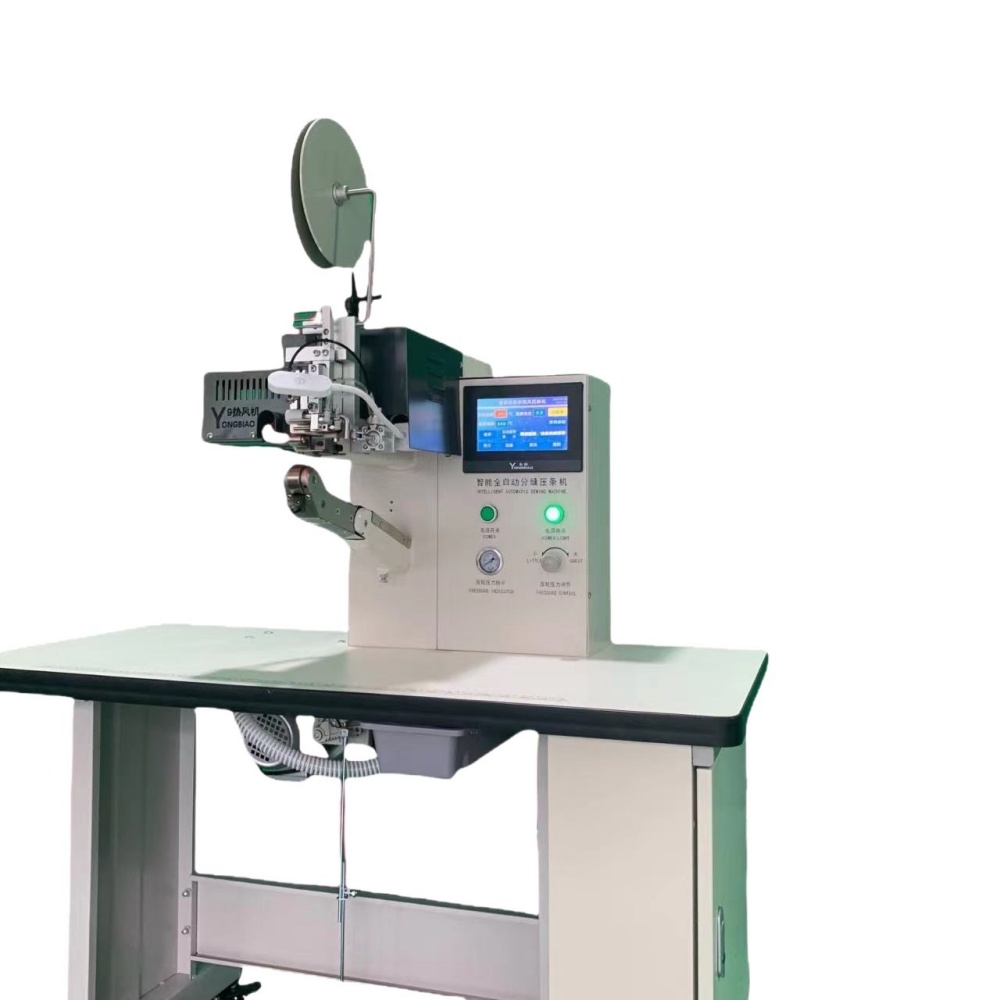

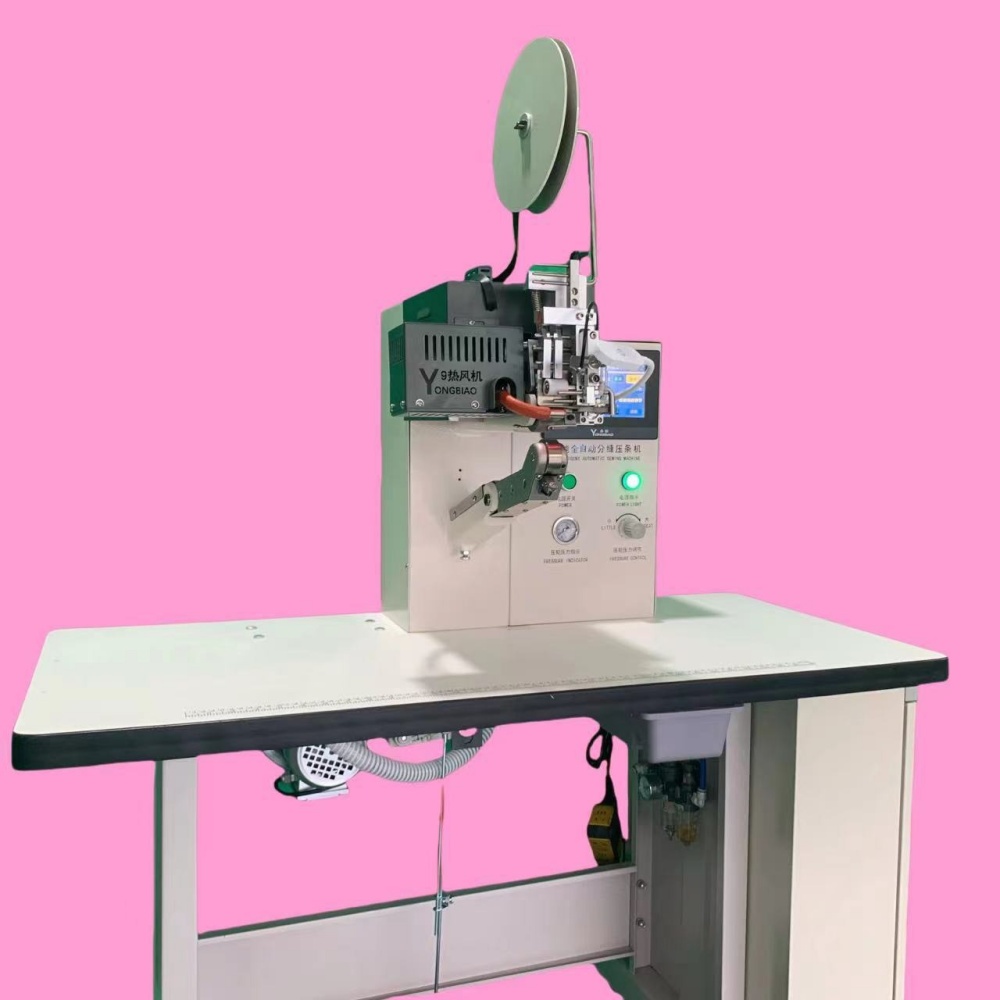

Equipment Model: YB-Y9
Power: 220V/50HZ 3000W
Speed：0-20M/MIN
Last-round lift/drop distance: Approx. 25 mm
Temperature Control:Infinitely adjustable up to 500°C
Body Dimensions:1150*570*1690MM
If you are interested in the product, contact 2bvideo.com for more information for more information
