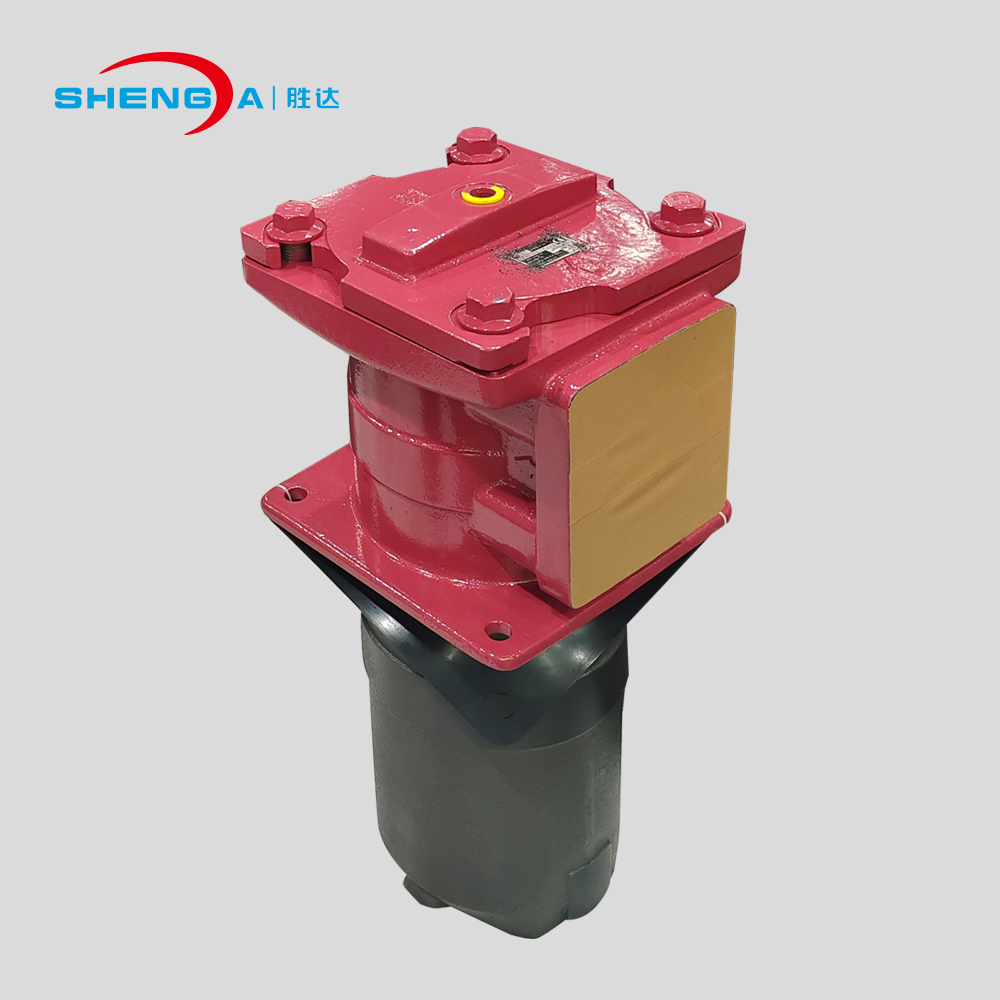

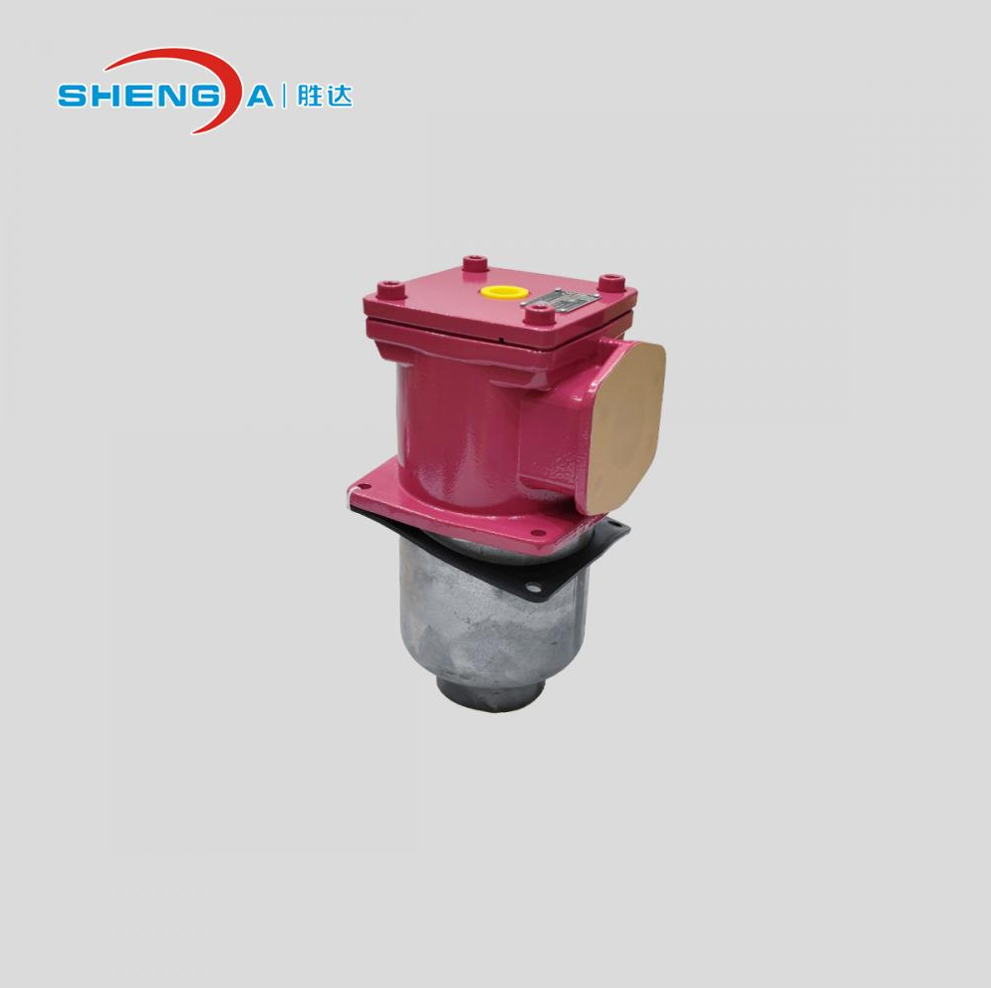

Hydraulic Tank Top Inline Filter Assembly

Hydraulic tank top inline filter assembly is a low‑pressure return‑line filtration unit mounted directly on the hydraulic tank top, with the filter bowl/submersible section inside the tank. It cleans returning hydraulic fluid before it re‑enters the reservoir, protecting pumps, valves, and actuators from contamination.

Key Specifications (Typical)

Flow Rate: up to 15,000 L/min
Max Operating Pressure: 25 bar
Filtration Rating: 3, 5,10, 20, 25, 50, 100, 200 micron
Media: glass fiber, metal mesh, stainlee steel fiber
Bypass cracking pressure: ΔPo=3bar+0.5bar (others on request)
Indicator: Visual, visual and electrical, electrical or without
Housing Materials: Engineering plastics, aluminum, cast iron, steel
Mounting: Tank‑top or inline

Applications

Construction: Excavators, loaders, bulldozers, concrete pumps
Mining: Drills, crushers, conveyors, hydraulic shovels
Agriculture: Tractors, harvesters, sprayers, irrigation systems
Material Handling: Forklifts, stackers, aerial work platforms
Marine: Ship deck machinery, winches, steering systems
Industrial: Machine tools, presses, injection molding, metalworking lines
Mobile Equipment: Trucks, cranes, forestry harvesters
