MC2130AC01AA0100010:
------
I. Product Overview
The Danfoss Orbital Motor (Gerotor Motor) is a hydraulic motor designed based on the gerotor gear principle, featuring a compact structure, high efficiency, and long service life. It is widely applied in construction machinery, agricultural machinery, marine machinery, and other fields. Model MC2130AC01AA0100010 is a specific variant within Danfoss's orbital motor series, tailored to meet performance requirements in targeted applications.
------
II. Technical Features
1. Efficient Power Transmission
• The gerotor gear design enables highly efficient energy conversion during operation, minimizing power loss.
2. Compact Structure
• Small size and lightweight facilitate installation and use in confined spaces.
3. Long Service Life
• High-quality materials and advanced manufacturing processes ensure stable performance under harsh working conditions.
4. Easy Maintenance
• Rational design simplifies disassembly and repair, reducing maintenance costs and downtime.
------
III. Applications
The Danfoss Orbital Motor MC2130AC01AA0100010 is suitable for the following fields:
1. Construction Machinery
• Used to drive working attachments or travel systems in excavators, loaders, road rollers, etc.
2. Agricultural Machinery
• Powers various working components in tractors, harvesters, etc.
3. Marine Machinery
• Applied in steering gears, windlasses, and other equipment for ship maneuvering and anchoring.
------
IV. Selection and Configuration
When selecting the Danfoss Orbital Motor motor model based on the application's required working pressure.
2. Flow Rate Requirements
• Select the motor displacement according to the system's flow demand.
3. Speed Specifications
• Match the motor's rated speed to the application's rotational requirements.
4. Mounting Method
• Choose an appropriate installation style (e.g., flange mount, shaft mount) based on equipment space and requirements.

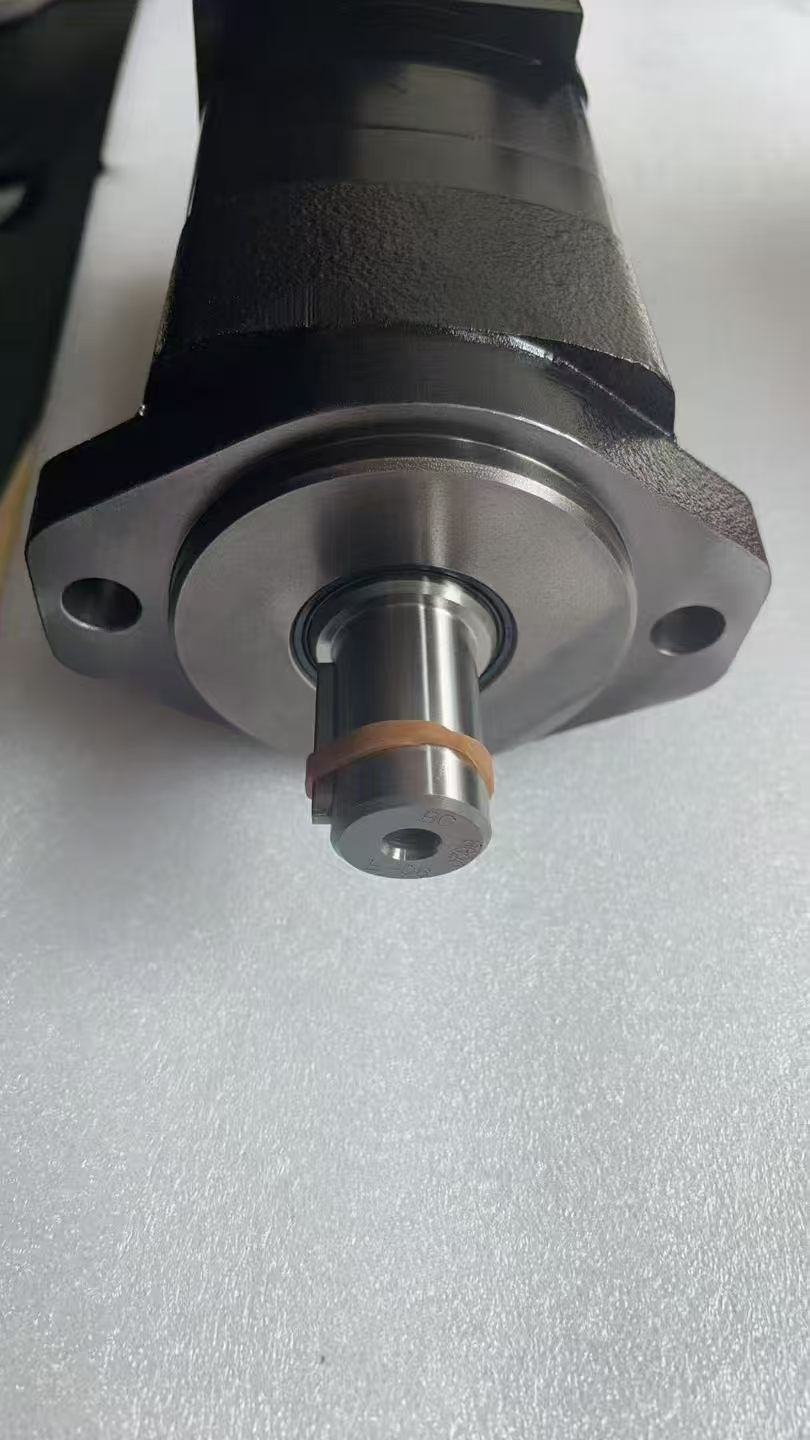

Danfoss Orbital Motor Model MC2130AC01AA0100010
Basic Information
- Product Name: Danfoss Orbital Hydraulic Motor
- Model: MC2130AC01AA0100010
- Brand: Danfoss (Original Imported)
- Type: Low‑speed high‑torque orbital hydraulic motor with internal meshing cycloidal rotor structure, similar to OMS/OMT series
- Application: Mold adjustment of injection molding machines, agricultural machinery, construction machinery, sweepers, small winches, hydraulic drive wheels, conveying equipment, etc.
Key Technical Parameters
- Displacement: 2130 ml/r
- Rated Pressure: 16–21 MPa
- Max Pressure: 25 MPa
- Rated Speed: 10–250 r/min
- Max Torque: Approx. 4200–4800 N·m
- Port Type: Standard flange / thread connection
- Seals: Oil‑resistant nitrile rubber, medium‑high temperature resistant
- Mounting: Face flange mounting, key‑type shaft connection
Structure & Material
1. Core Structure: Cycloidal rotor & stator, valve plate, output shaft, housing, seal assembly
2. Material: High‑strength alloy steel for rotor and stator with precision grinding; high‑strength ductile iron for housing
3. Features: Low internal leakage, high starting torque, stable low‑speed operation, impact resistance, long service life
Model Code Explanation (MC2130AC01AA0100010)
- MC: Series code for large‑displacement orbital motor
- 2130: Theoretical displacement 2130 ml/r
- AC: Code for shaft type and mounting form
- 01: Oil port configuration
- AA: Sealing type and rotation direction
- 0100010: Custom version, pressure relief, flush valve, special shaft/flange, etc.
Main Functions
1. Converts hydraulic pressure energy into rotary mechanical energy to provide low‑speed high‑torque power
2. Used for heavy‑duty and low‑speed driving; can directly drive loads without reduction mechanism
3. Bi‑directional rotation with sensitive forward/reverse switching and stable braking performance
Common Faults & Phenomena
1. Insufficient output power and torque: Internal wear, scratched valve plate, excessive internal leakage
2. Unstable speed and vibration: Impurities in hydraulic oil, rotor wear, unstable flow rate
3. Oil leakage: Aging shaft seal, damaged end‑cover seal, casting defects on housing
4. Abnormal noise: Worn bearings, abnormal meshing between rotor and stator
Installation & Operation Requirements
1. Hydraulic Oil: 46# anti‑wear hydraulic oil with cleanliness within NAS 8 grade
2. Install filter at oil inlet to prevent impurities from entering the motor
3. Avoid over‑pressure and over‑speed operation; replace hydraulic oil and filter regularly
4. Prevent radial impact load on output shaft; mainly bear axial torque
