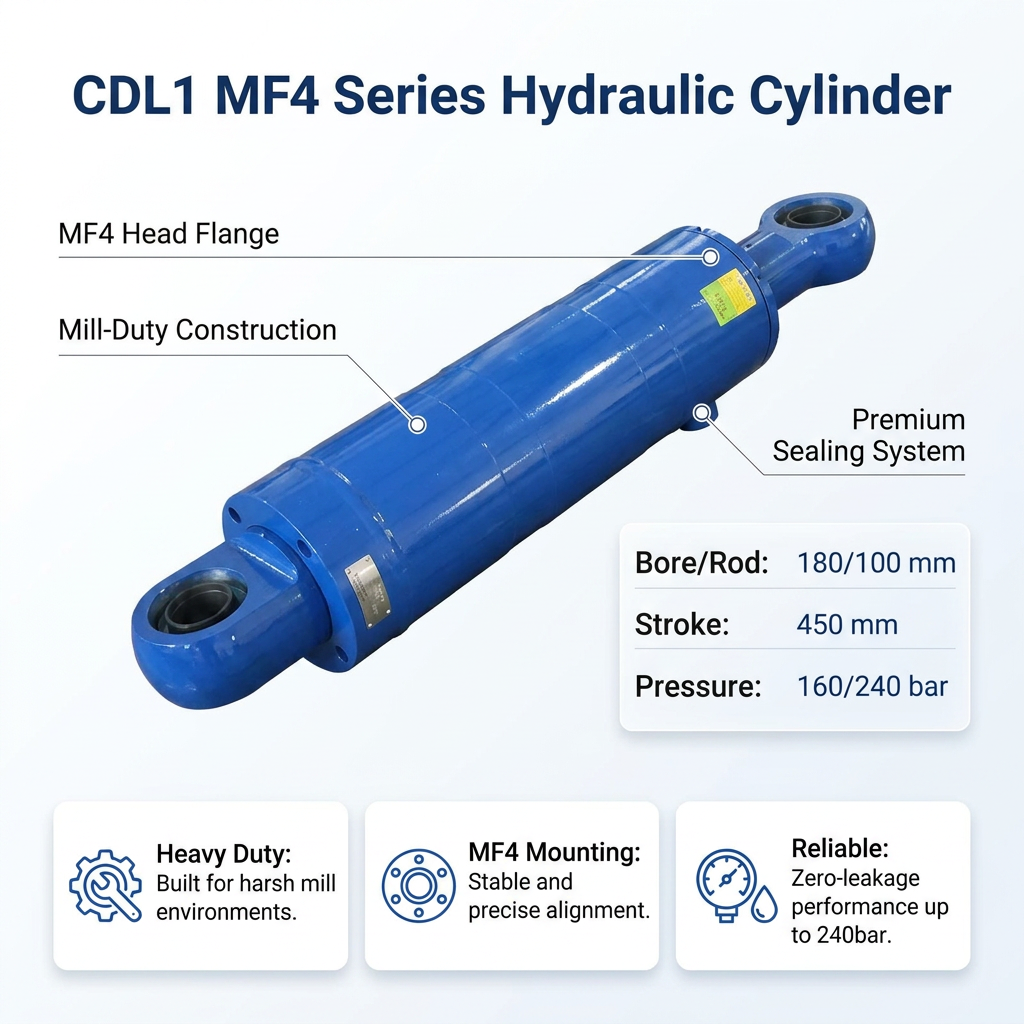

CDL1 MF4 180 100-450 Hydraulic Cylinder

3 month ago

2 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification: CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed Cylinder

Manufactured in accordance with ISO 3320 and the essential technical requirements of the Rexroth CDL1 metallurgy series.
Available in bore sizes from 40mm to 320mm; this specific heavy-duty model features a 180mm bore with a 100mm rod.
In most popular industrial applications, the 160 bar (16 MPa) nominal pressure provides stable performance, with a static test pressure up to 240 bar for safety under shock loads.
Piston rods are manufactured from high-strength steel (45# or 42CrMo), precision ground, and hard chrome plated (min. 0.03mm thickness) to resist wear and corrosion.
The chrome-plated surface ensures a smooth stroke and a maximum service life of over 5,000 km without leakage in harsh environments.
Equipped with a superior sealing system (Parker or Hallite) that remains unaffected by industrial oils, grease, and high temperatures.
100% interchangeable with Rexroth dimensions, allowing for seamless replacement and significantly lower maintenance costs compared to OEM parts.
The Mill Type (round-body) non-welded structure offers maximum structural stability and allows for easy disassembly for seal replacement.
Mounting Type: MF4 (Head Flange mounting) ensures rigid and precise alignment for heavy-duty cycling.
Stroke Length: Available from 50mm up to 3000mm; this model is optimized with a 450mm stroke

Attribute	Technical Specification
Product Model	CDL1 MF4 180/100-450
Series Type	Mill Type Heavy Duty Hydraulic Cylinder
Technical Standard	ISO 3320 / Bosch Rexroth CDL1 Compatible
