I. Product Overview

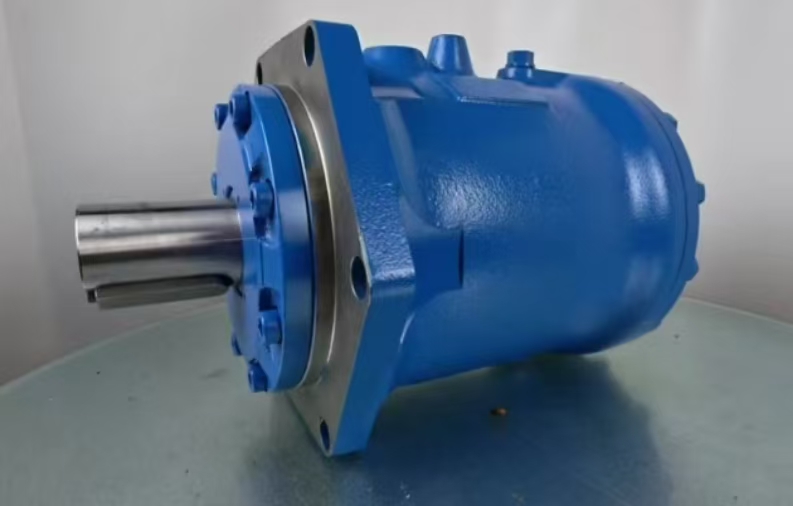

The Eaton ME Series hydraulic motors/pumps (e.g., ME175, ME4100 models) are high-performance hydraulic components manufactured by Eaton as part of its Dowmax product line. Designed for industrial applications requiring high torque, high efficiency, and reliability, these products are widely used in slewing and luffing mechanisms of cranes, excavators, injection molding machines, die-casting machines, and other equipment.
------
II. Model Breakdown
• ME: Indicates the product series, specifically Eaton's Dowmax ME Series.
• 175-4100: Represents the displacement range, typically measured incm³/rev (cubic centimeters per revolution)ormL/rev (milliliters per revolution). This range signifies that the series includes multiple displacement specifications to meet diverse application requirements. For example, ME175 may refer to a model with a displacement of 175 cm³/rev, while ME4100 denotes a displacement of 4100 cm³/rev.
------
III. Technical Features
1. High Performance:
• Delivers high torque output to meet heavy-duty application demands.
• Efficient design minimizes energy loss, improving overall system efficiency.
2. Reliability:
• Constructed from high-quality materials to ensure durability and long service life.
• Rigorous quality control and testing guarantee stable operation under harsh conditions.
3. Flexibility:
• Multiple displacement options available for easy matching to specific application needs.
• Compatible with other Eaton hydraulic components (e.g., pumps, valves) to form complete hydraulic systems.
------
IV. Application Areas
The Eaton ME Series hydraulic motors/pumps are widely used in the following fields:
1. Construction Machinery:
• Slewing and luffing mechanisms of cranes, excavators, and other equipment.
2. Industrial Equipment:
• Injection molding machines, die-casting machines, and other devices requiring high-pressure, large-flow hydraulic power.
3. Marine Machinery:
• Hydraulic systems for ship steering gear, deck machinery, etc.
4. Other Industries:
• Metallurgy, mining, petrochemical, and other sectors utilizing hydraulic equipment.
------
V. Purchase and Usage Recommendations
1. During Purchase:
• Clearly define application requirements to select the appropriate displacement specification and model.
• Consult Eaton's official sources or authorized dealers for detailed technical parameters and pricing information.
• Ensure compatibility with existing hydraulic systems.
2. During Use:
• Follow the operation manual for proper installation and commissioning.
• Regularly inspect and maintain the hydraulic system, replacing worn components and hydraulic fluid as needed.
• Maintain hydraulic fluid cleanliness and filtration precision to prevent damage to components.
Eaton ME Series (Displacement: 175-4100 cc/rev)
The Eaton ME Series, also known as DOWMAX ME, are low-speed high-torque double swashplate axial piston hydraulic motors, with displacement ranging from 175 to 4097 cc/rev (approx. 4100 cc/rev), covering 13 specifications in total.
Core Parameters
- Displacement: 175, 300, 350, 600, 750, 850, 1300, 1900, 2600, 3100, 4100 cc/rev
- Rated Pressure: 276 bar (4000 psi)
- Peak Pressure: 324 bar (4700 psi)
- Rated Speed: 300-1000 rpm (varies by model)
- Max Speed: 400-1200 rpm (varies by model)
- Structure: Double swashplate, opposed multi-piston, flat pressure-compensated valve plate with good thermal shock resistance
Model & Displacement Correspondence
- ME175: 175 cc/rev
- ME300B: 300 cc/rev
- ME350B: 350 cc/rev
- ME600B: 600 cc/rev
- ME750B: 750 cc/rev
- ME850B: 850 cc/rev
- ME1300A: 1300 cc/rev
- ME1900: 1900 cc/rev
- ME2600: 2600 cc/rev
- ME3100: 3100 cc/rev
- ME4100: 4097 cc/rev (approx. 4100 cc/rev)
Main Features
- Excellent low-speed high-torque performance, stable operation at as low as 1 rpm with large starting torque
- High pressure resistance, continuous working pressure up to 280 bar, ideal for heavy-duty working conditions
- Superior cold start performance, effectively reducing cold start impact
- Optional speed sensor for closed-loop control
- Low noise, sturdy structure and compact layout, available with multiple shaft types and mounting forms
Typical Applications
Directional drilling rigs, top drives, marine winches, construction machinery, mining equipment, hoisting systems and other equipment requiring low-speed high-torque and high-reliability hydraulic drive
Model Naming Example: ME750BSWA2723
- ME750B: Series and displacement
- S: Shaft type
- W: Mounting type
- A: Seal & configuration
- 2723: Pressure & speed code
