Replacement. Danfoss
Low-speed high-torque motors /
Orbital motors / Char-Lynn motors /
10,000 series motors / 119-1030-003
MOTOR-ORBITAL,10000 SERIES 665[40.6], M10406AA01AA01000000000000000C
119-1030-003
Model
code:M10406AA01AA01000000000000000C

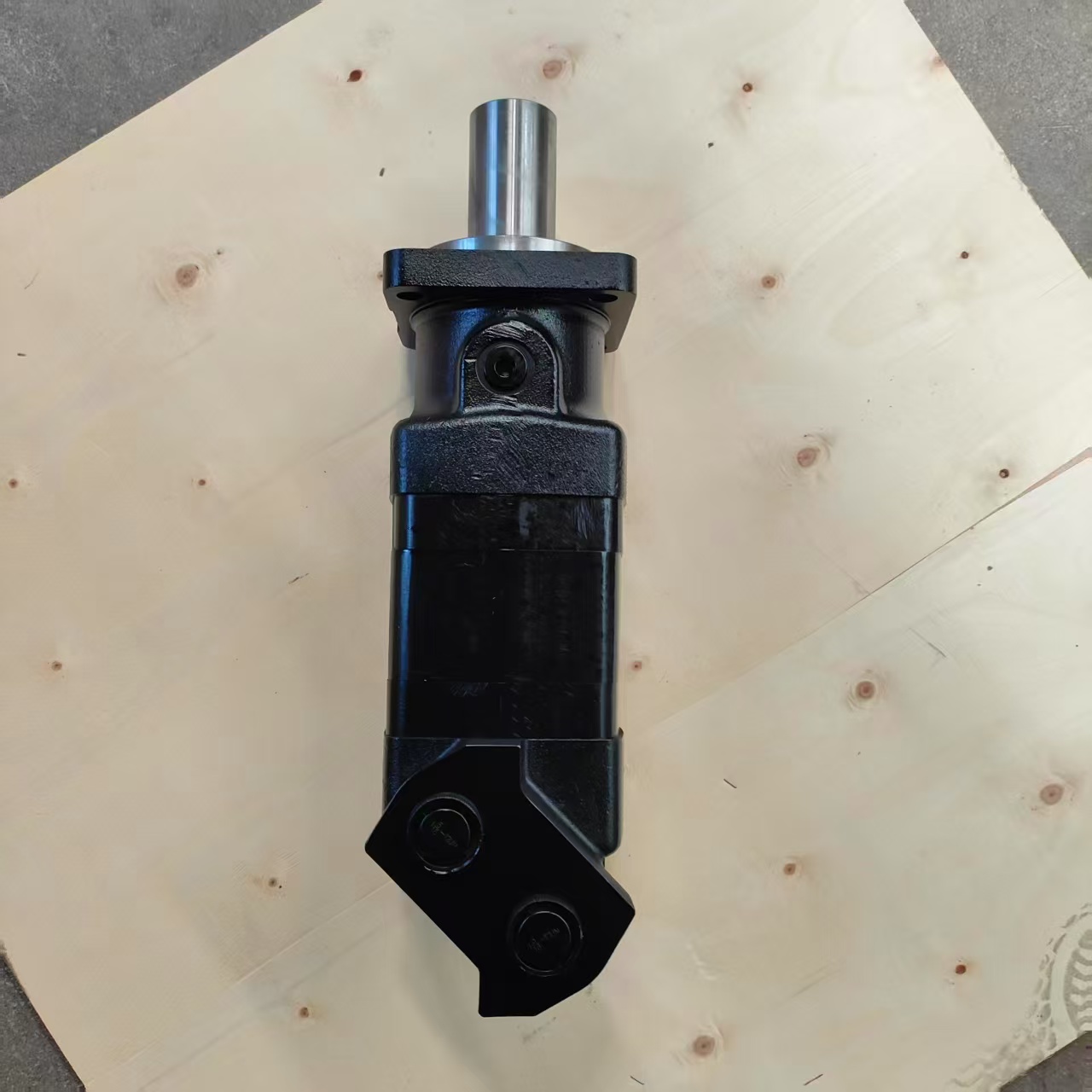

Low-speed High-torque Motor 119-1030-003
Basic Information
Model: 119-1030-003
Brand: Eaton Char-Lynn
Series: 10000 Series Low-speed High-torque Orbital Hydraulic Motor
Type: Gerotor / Orbital Hydraulic Motor
Main Technical Parameters
- Displacement: 665.3 cc/rev (40.6 in³/rev)
- Rated Torque: 18450 in-lbs (approx. 2085 N·m)
- Peak Torque: 23080 in-lbs (approx. 2608 N·m)
- Max Speed: 254 rpm
- Continuous Flow: 45 gpm (about 170 L/min)
- Intermittent Flow: 70 gpm (about 265 L/min)
- Rated Pressure: 21 MPa (3000 psi)
- Peak Pressure: 25 MPa (3600 psi)
Mounting & Port Specifications
- Mounting Flange: 4-bolt SAE C flange, 5-inch locating circle
- Output Shaft: 2.25-inch straight key shaft with 1/2"-20 threaded hole at shaft end
- Main Ports: #16 ORB staggered arrangement; Drain port: #6 ORB
- Rotation Direction: Bi-directional standard design
Product Features
- Stable low-speed operation and strong starting torque
- Compact structure, light weight and high torque density
- Durable structure suitable for heavy-duty working conditions
- High efficiency and low noise, capable of long-term continuous operation
Typical Applications
Construction machinery, agricultural equipment, drilling rigs, winches, marine deck machinery, crawler and wheel drive systems
Model Code Definition (119-1030-003)
- 119: Series code for 10000 series
- 1030: Displacement and configuration code
- 003: Standard version with standard seal, shaft and oil port layout
119-1030-003 is a model of the 10000 series low-speed high-torque orbital hydraulic motor from Char-Lynn, a brand under Danfoss.Below is a detailed introduction to this motor model:
I. Product Overview
• Brand & Series: Danfoss Char-Lynn 10000 Series
• Type: Low-speed high-torque orbital hydraulic motor
• Application Fields: Widely used in port equipment, construction machinery, agricultural machinery, road machinery, mining machinery, metallurgical machinery, ships, machine tools, and many other fields.
II. Product Features
• Low-speed High-torque: This motor can output high torque at low speeds, meeting the needs of various heavy-duty and low-speed rotation applications.
• Orbital Design: Utilizes the orbital gear transmission principle, featuring a compact structure, high transmission efficiency, and long service life.
• High Reliability: Undergoes strict quality control and testing to ensure stable operation under harsh working conditions.
• Easy Maintenance: The motor is designed reasonably, facilitating easy disassembly and repair, reducing maintenance costs and time.
III. Technical Specifications (Examples)
Although specific technical specifications may vary depending on the product version and configuration, the following are some typical technical parameters for reference:
• Displacement: Varies according to the specific model and configuration. For example, the displacement of some models may range from tens to hundreds of milliliters per revolution (ml/r).
• Pressure Range: The rated pressure is typically 20-25 MPa, with the maximum pressure possibly being higher, depending on the model and configuration.
• Torque Output: Varies based on displacement and pressure. Generally, low-speed high-torque motors can output high torque at low speeds.
• Speed Range: Wide speed range to meet the needs of different application scenarios. The specific speed range depends on the model and configuration.
IV. Product Advantages
• Efficient and Energy-saving: The orbital transmission principle results in minimal energy loss during transmission, improving system efficiency.
• Long Service Life: High-quality materials and manufacturing processes ensure the motor's long service life and reliability.
• Strong Adaptability: Capable of adapting to various harsh working conditions and environments, such as high temperatures, low temperatures, humidity, and corrosion.
• High Cost-effectiveness: Compared to similar products, the Danfoss Char-Lynn 10000 series motors offer high cost-effectiveness and competitiveness.
