CDH1 MT4 125 70-200 Hydraulic Cylinder

3 month ago

0 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

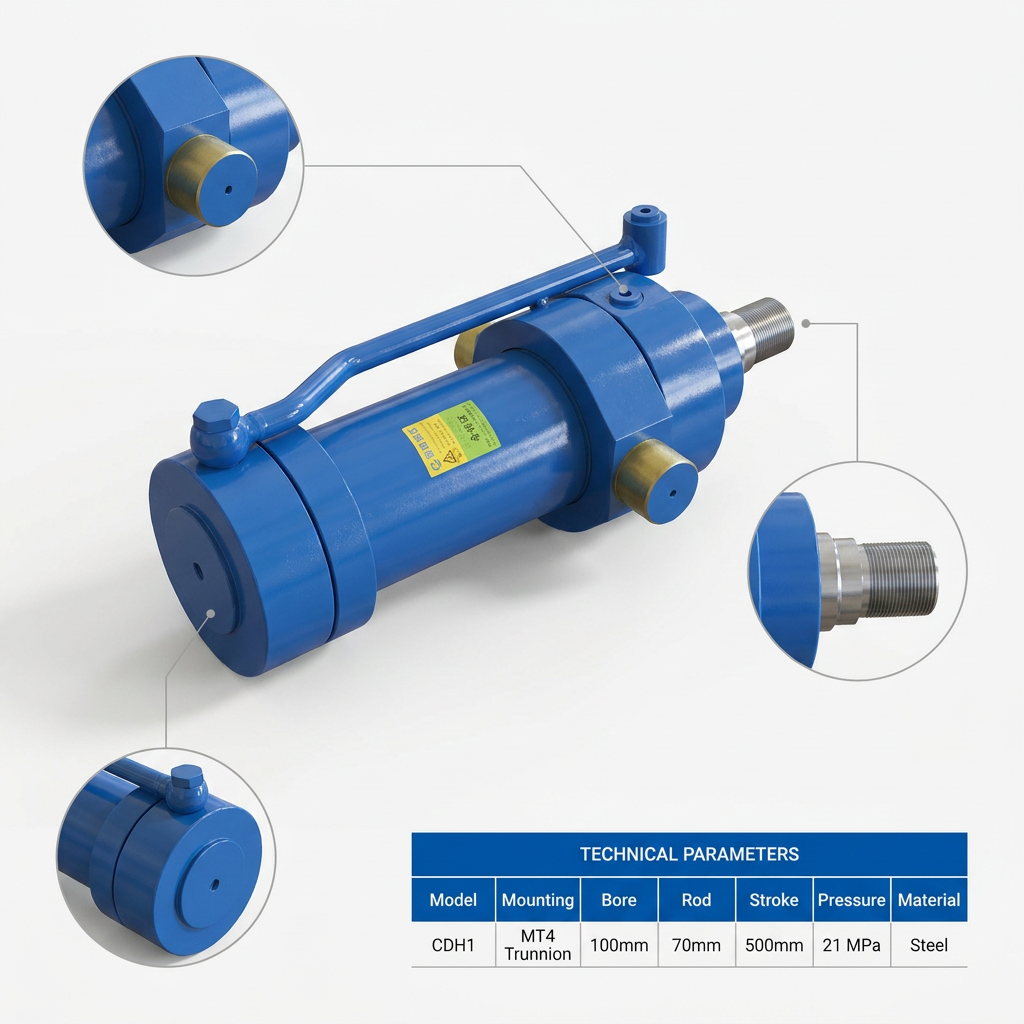

CDH1 MT4 Mill Type Cylinder

Specification:CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed Cylinder

Manufactured in strict accordance with ISO 6022 and DIN 24333 international standards to ensure maximum reliability in heavy-duty environments.
Standard bore diameter of 125mm paired with a 70mm high-strength piston rod, delivering high force density for short-stroke industrial cycles.
Features the MT4 intermediate trunnion mounting design, specifically engineered to manage oscillating loads and non-linear load paths.
Nominal working pressure of 250 Bar (25 MPa), with every unit undergoing a 1.5x static pressure proof test to verify structural integrity.
Piston rods are induction hardened and precision ground with a hard chrome plating thickness of 30-50μm to prevent wear and corrosion.
Equipped with premium, high-temperature resistant sealing systems (Parker/SKF) to ensure zero-leakage performance in harsh metallurgical conditions.
Provides 100% mechanical and dimensional interchangeability with the Rexroth CDH1 series, simplifying direct replacement and maintenance.
Optimized for high-cycle applications such as steel mill ladle control, heavy-duty forging presses, and specialized infrastructure machinery.

Attribute	Specification
Model	CDH1 MT4 125/70-200
Series Type	Mill Type Heavy-Duty
Standard	ISO 6022 / DIN 24333
Mounting	MT4 Intermediate Trunnion
Bore/Rod	125 mm / 70 mm
Stroke	200 mm
Pressure	250 Bar (25 MPa)
Interchange	100% Rexroth Replace
