150 90-1950 Hydraulic Cylinder

3 month ago

3 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification：CS Series Hydraulic Cylinder, Mill Type with Position System, Sensing Round Cylinder, Linear Feedback Cylinder, Smart Mill Cylinder

Manufactured specifically for heavy-duty industrial lifting and specialized long-reach boom extension tasks.

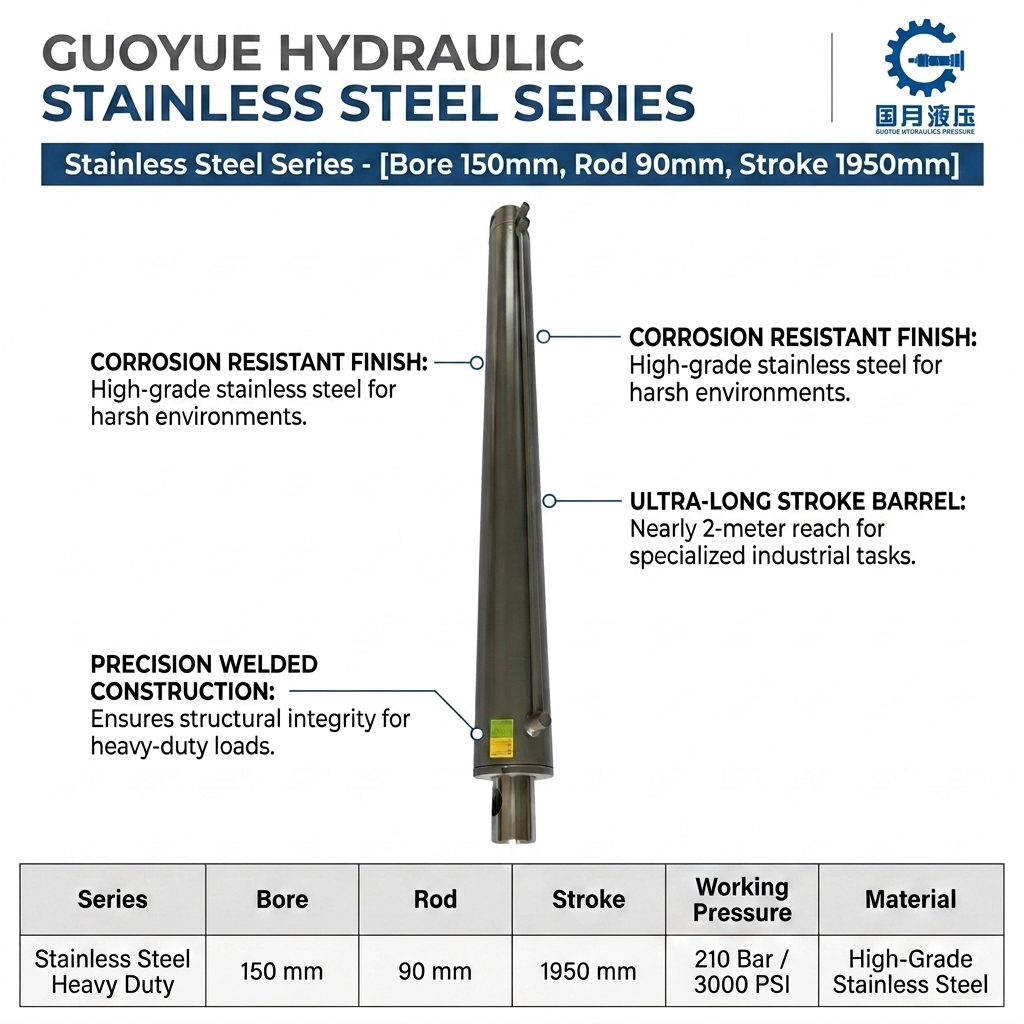

Standard specifications: Bore diameter 150mm, Piston rod diameter 90mm.
Ultra-long stroke length up to 1950mm, providing an extended operational range of nearly 2 meters.
Rated working pressure of 210 Bar (3000 PSI) with high-pressure testing standards ensured for each unit.
Available in high-grade stainless steel or hard chrome-plated finish to suit diverse environmental requirements.
Welded body offers higher pressure rating and structural integrity than tie-rod designs.
Integrated external oil line simplifies plumbing by centralizing ports at one end.
Precision honed barrel with premium seals ensures zero leakage over the full 1950mm stroke.
Superior corrosion resistance for long-term durability in harsh environments.
Principle: Double-acting welded construction for reliable bidirectional force and compact installation.
Scenarios: Mobile crane booms, agricultural folding machinery, large waste compactors, and marine engineering.
