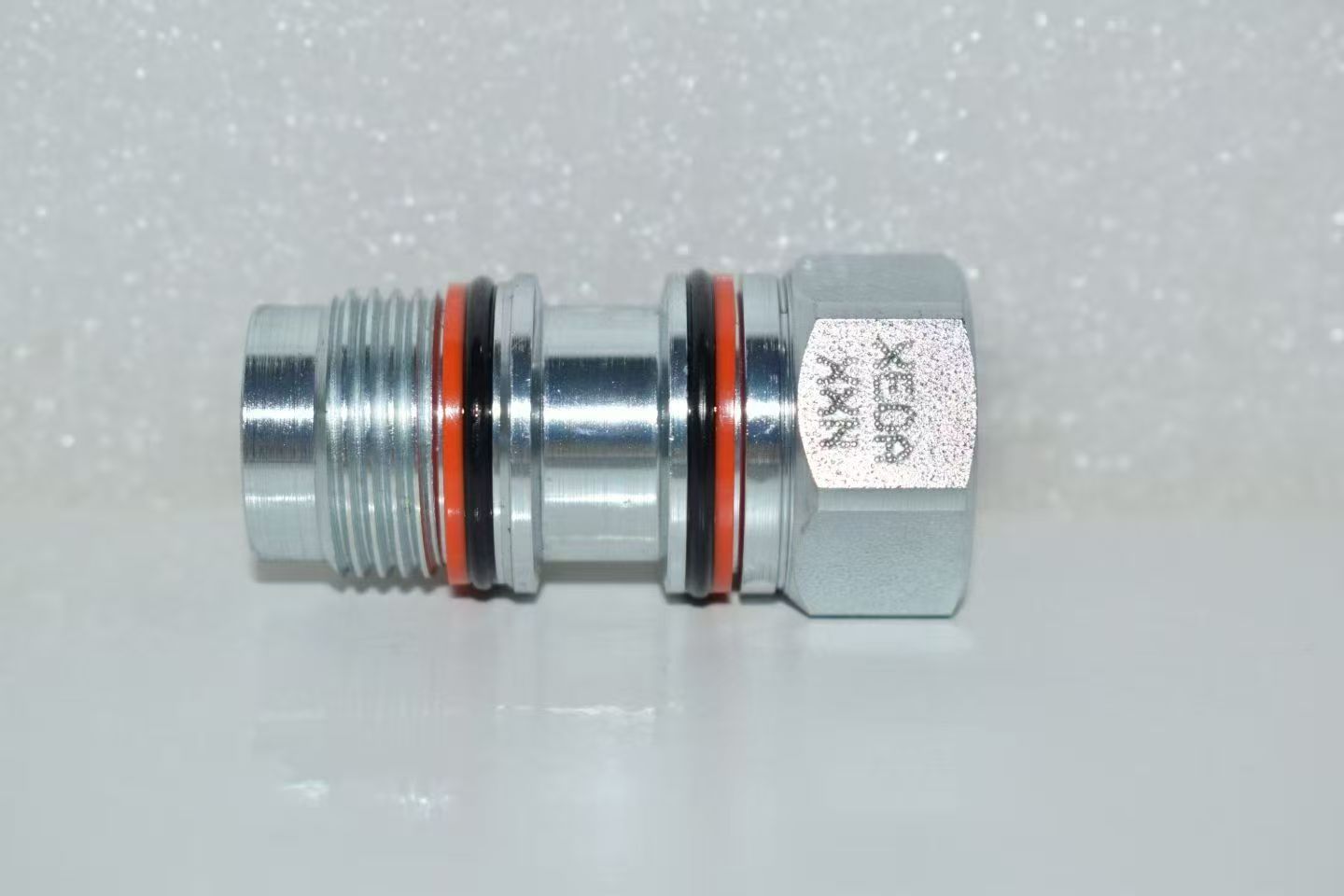

XEOA-XXN SUN Brand Cartridge Valves

Full Name: 3-Port Cavity Plug, Blocks Port 3, Connects Port 1 and Port 2

1. Basic Parameters

- Model: XEOA-XXN

- Brand: SUN Hydraulics

- Type: 3-port cavity plug

- Cavity size: T-11A, Series 1

- Port configuration: Flow passage between Port 1 and Port 2; Port 3 fully blocked

- Maximum working pressure: 350 bar (5000 psi)

- Hex size: 7/8 inch (22.2 mm)

- Installation torque: 41–47 N·m (30–35 lbf·ft)

- Body material: Standard carbon steel

- Seal options: Buna-N, FKM and EPDM available

- Weight: Approximately 0.25 kg

2. Structure & Features

- Floating structure reduces sensitivity to installation torque and avoids jamming

- Shoulder positioning design bears thread load and prevents deformation

- Centered thread structure delivers higher flow capacity and minimizes eccentricity impact

- Applied for converting 3-way valve manifold to 2-way circuit and sealing spare ports

3. Model Code Explanation

- XEOA: Series code for 3-port cavity plug

- XXN: Standard version without pressure regulation and spring assembly

4. Typical Applications

- Block Port 3 of T-11A mounting cavity on hydraulic manifolds

- Modify 3-way hydraulic circuits into 2-way pipelines

- Permanent sealing of spare oil ports to prevent leakage

- Temporary port sealing and pressure holding test for inspection fixtures

5. Difference from Check Valves

- XEOA-XXN is a cavity plug without spool structure, only used for port blocking

- Not interchangeable with check valves such as XECA and CXHA series

XEOA-XXN is a cartridge valve from the SUN brand, specifically categorized as a port plug (orifice plug).Below is a detailed introduction to the XEOA-XXN SUN brand cartridge valve:

I. Product Characteristics

1. Structural Features:

• The XEOA-XXN port plug includes an external control port and connects Port 1 and Port 2, while Port 3 remains closed.

• The port plug belongs to the T-17A series, with a maximum operating pressure of up to 5000 psi (350 bar).

• The hexagonal head installation size is 1 1/4 inches (31.8 mm), and the valve installation torque is 150 - 160 lbf ft (203 - 217 Nm).

2. Seal Materials:

• The XEOA-XXN port plug offers multiple seal material options, including Buna (NBR), polyurethane, and Viton, to accommodate different media and environmental requirements.

• The seal ring models are as follows: Buna seal ring model 990017007, Polyurethane seal ring model 990017002, and Viton seal ring model 990017006.

II. Application Scenarios

1. Hydraulic Systems: The XEOA-XXN port plug is suitable for hydraulic system scenarios where it is necessary to block specific oil ports to prevent fluid leakage or backflow.

2. Integrated Valve Blocks: As part of the SUN cartridge valve series, this port plug can be used in conjunction with other cartridge valves to construct compact and efficient hydraulic integrated systems.

III. Technical Advantages

1. High Reliability: SUN brand cartridge valves are renowned for their robustness, durability, and stable performance, and the XEOA-XXN inherits these characteristics.

2. Standardized Design: It adopts standardized installation dimensions and cavity designs, facilitating interchangeability and integration with other brands.

3. Modular Structure: Composed of modular components, it is easy to maintain and extend in functionality.
