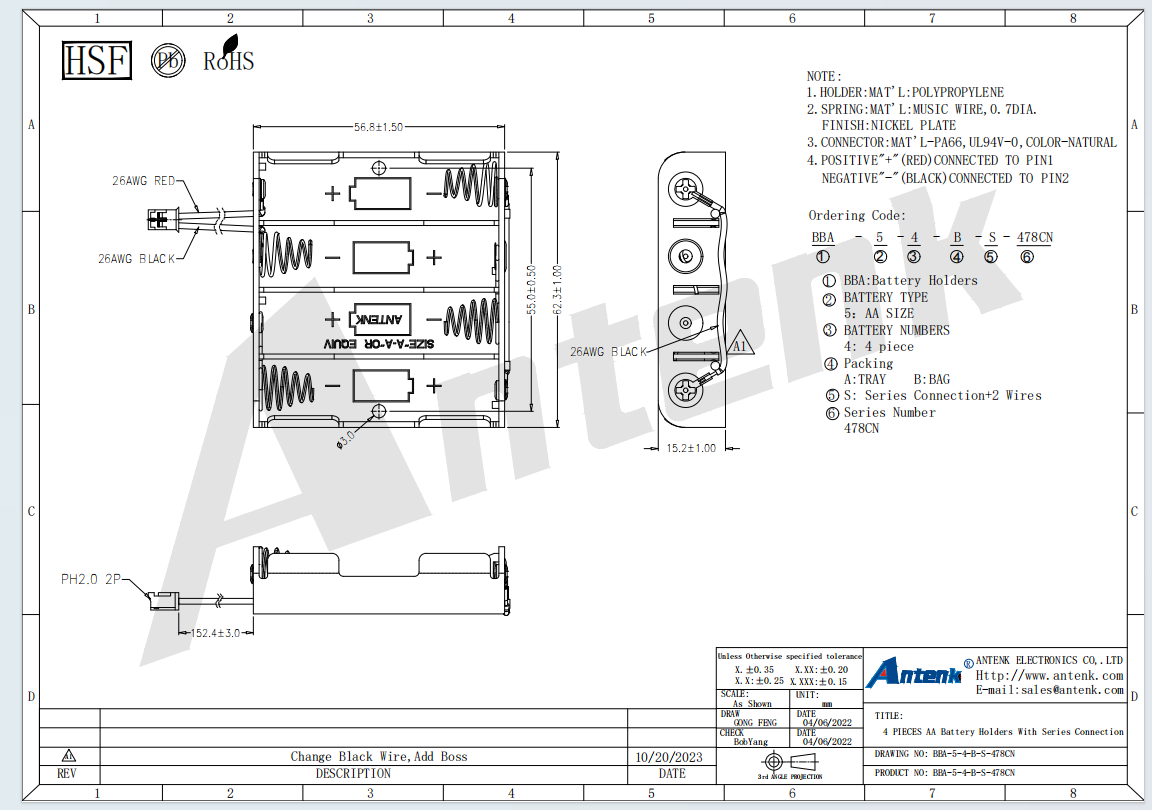

Huizhou Antenk Electronics Co., Ltd., an IATF16949:2016, ISO9001:2015 and ISO14001:2015 certified high-tech enterprise founded in 2007 with over 300 employees and a 10000 square meter Huizhou facility, proudly presents the 4 PIECES AA BATTERY HOLDERS WITH SERIES CONNECTION. This high capacity battery holder is precision engineered to house four standard AA LR6 alkaline or rechargeable cells in series, delivering a nominal 6V output at up to 3A continuous current. The holder features an integrated high temperature PBT or glass filled nylon 6/6 housing rated UL94 V0 with a heat deflection temperature of 260 degrees Celsius, and includes molded polarity guides and a snap fit cover option for secure battery retention. Each of the four cell positions is equipped with a nickel plated phosphor bronze positive contact and a captive coil spring negative contact, stamped on our 9 Japanese Taiwanese high speed presses. The holder provides four through hole solder tails with 2.54mm pitch for easy PCB integration. Key characteristics include contact resistance below 25 milliohms per cell, a consistent retention force of 150 to 200 grams per cell, total output of 6V at 3A, and an operating temperature range from -40 to +105 degrees Celsius. The product is RoHS and REACH compliant and UL recognized under E472792.
This 4 cell series holder is ideal for portable devices requiring 6V power from AA batteries, including portable radios, battery powered LED lanterns, medical infusion pumps, industrial handheld terminals, wireless microphones, childrens ride on toys, electric door locks, and backup power systems for security panels – markets where Antenk already serves customers including Flextronics, Foxconn, and Fortune 500 companies across the USA, Germany, South Korea, India, Russia, and beyond. Usage method: solder the four through hole tails to the PCB using wave or hand soldering. The series connection is pre wired internally, so inserting four AA batteries in the correct orientation automatically creates a 6V output. Follow the polarity markings on the housing, inserting each battery with the positive end toward the raised contact and the negative end into the coil spring. An audible click confirms full seating. To remove batteries, use a non conductive tool to depress each spring. Precautions: do not exceed 3A continuous current; avoid reverse polarity insertion; do not mix old and new batteries or different charge levels; operate within -40 to +105 degrees Celsius. Advantages over competitors: unlike competitors who offer separate single holders requiring external wiring and manual series connections, Antenks integrated 4 cell series holder eliminates jumper wires and reduces assembly time by 70 percent. Competitors often use thin ABS housings that crack under drop or vibration; Antenk uses PBT or glass filled nylon with 260 degree Celsius HDT, passing 1.5 meter drop tests. While others require 10000 plus MOQ for multi cell tooling, Antenk offers low MOQs of 1000 units with no tooling fees for standard configurations. Our IATF16949 certification ensures automotive grade reliability, and our in house 40 plus lab test devices including XRF, environmental chambers, and salt spray testers guarantee every batch meets EIA 364 standards.
Antenks vertical integration delivers consistent quality for the 4 cell series AA holder. Process flow: first, in house mold design using our 380 plus plastic injection molds with a dedicated 4 cell cavity holding a tolerance of plus or minus 0.03mm on all battery compartments. Second, injection molding on 10 Japanese Taiwanese 35 to 120 ton machines using PBT or glass filled nylon 6/6 with melt temperature 270 degrees Celsius, mold temperature 85 degrees Celsius, and cycle time 28 seconds. Third, high speed stamping of eight positive contacts and four negative springs on 9 Japanese Taiwanese presses using 0.25mm phosphor bronze strip. Fourth, barrel plating of nickel at 3 microns with optional gold at 0.3 microns for medical versions. Fifth, automated spring coiling on Japanese CNC coilers with a pitch tolerance of plus or minus 0.08mm and fatigue tested to 10000 cycles. Sixth, semi automatic assembly including heat staking of positive contacts, spring insertion, internal series bus bar connection, and 100 percent pull test at 5 kgf minimum. Seventh, 100 percent contact position and polarity verification using automated vision systems. Eighth, spring force testing per EIA 364 04 from 150 to 200 grams per cell. Ninth, contact resistance testing per EIA 364 06 below 25 milliohms per cell and total series resistance below 100 milliohms. Tenth, 48 hour salt spray corrosion testing on sample basis. Finally, final QC with lot traceability and dimensional report. Our laboratory houses more than 40 testing devices including XRF, profile projectors, environmental chambers, and tensile testers. With over 300 employees, more than 18 mold making machines, and over 180 automatic assembly machines, we provide free samples, complete 2D and 3D CAD drawings, and 24 hour technical support. Contact Antenk today for a quotation – we respond within 4 hours and ship 4 cell AA series holder samples within 5 days. Ask about volume discounts starting at 5000 units and custom options such as gold plating, cover type, or modified contact forces. With 70 percent of our products exported to over 60 countries and 18 years of innovation, Antenk is your trusted partner for multi cell series battery holders.
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in connector and cables. And we export e our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
we can support ODM and OEM service here, we have strong R&D team in Atkconn group.
Q: How many different types of products your company manufactures?
A: Now we have more than 10,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
