Product details

Crinkle-textured pre-painted steel (PPGI/PPGL) is manufactured through a continuous coil coating process where a galvanized (GI) or aluminum-zinc alloy-coated (GL) substrate undergoes chemical pretreatment, followed by roller application of a textured coating formulation containing rheology modifiers and matting agents. The coating is cured at temperatures between 200–220°C, forming a uniform crinkle pattern with a typical peak-to-valley height of 15–60 μm. This texture increases surface hardness (≥2H pencil hardness) and reduces visible scratches during handling and installation. The coating system consists of a chromate-free conversion layer, epoxy primer (5–8 μm), and textured polyester topcoat (20–30 μm dry film thickness). Substrate specifications include minimum coating weights of Z120 (GI) or AZ150 (GL) and yield strengths of 250–350 MPa. Performance characteristics include adhesion (cross-cut test ≥Gt1 per ISO 2409), impact resistance (≥9 J), and accelerated weathering resistance (≥1500 h QUV-B with ΔE ≤3). The textured surface exhibits lower gloss (≤30 GU at 60°) and diffuses light reflection, reducing glare. Installation requires attention to directional alignment of the texture pattern for visual consistency. The product is intended for architectural cladding applications such as roofing, wall panels, and interior partitions, and should be installed in accordance with relevant wind load and thermal movement calculations. Fabrication guidelines recommend minimum bend radii of 4× material thickness (4T) to prevent coating cracking.

Grade	DX51D, DX53D, DX54D, S350GD, G550,Alloy,Stainless,etc
Base Material	30-275g/m²; Aluminum: A1, A3, A5 A6, etc, Stainless: 201, 304, 316, 316L, 430 etc
Thickness & Width	Thickness 0.15-3.0MM Width ≤2500MM
Paint & Film	PE, SMP, HDP, PVDF
Processing Service	Protective Film if need, making pipes, cutting sheets, making corrugated sheets,fence sheets etc.
Color & Grian	RAL Color PPGI/PPGL/PPAL/Stainless, Surface as Matt Anti Scratch etc. Grain as 2d 3D Wooden,Stone, Brick,Brushed, Rusted, Granited ,Camoufalge series etc.
Color & Grian	Laminated PP/PET/PVC Sarin Membrane Film steel & Ahumimum & Stainless，Surface Color and Texture as RAL Color,Wood, Marble,Stone, Brushed, Flower, and other Customized Texture Grain etc.

Our product series includes PPGI/PPGL Steel for durable roofing, Prepainted Aluminum with superior corrosion resistance, Prepainted Stainless for high-hygiene environments, Printed Grain Metal mimicking natural wood aesthetics, Galvanized Steel Parts for structural integrity, Aluminum Parts in lightweight assemblies, Stainless Parts in aggressive conditions, Forming Sheet for complex profiles, Roofs Sheets with weatherproof performance, Fence Sheets offering secure boundaries, Metal Screws engineered for fastening reliability, Standard parts ensuring interchangeability, Non-standard parts tailored to custom designs, Metal Roofs with long-term durability, Curtain wall systems for modern facades, Metal fence for security and style, Prefab House modules for rapid deployment, Water Tank solutions with leak-free integrity, Gutter systems for efficient drainage, and Wall Panel assemblies for seamless cladding.

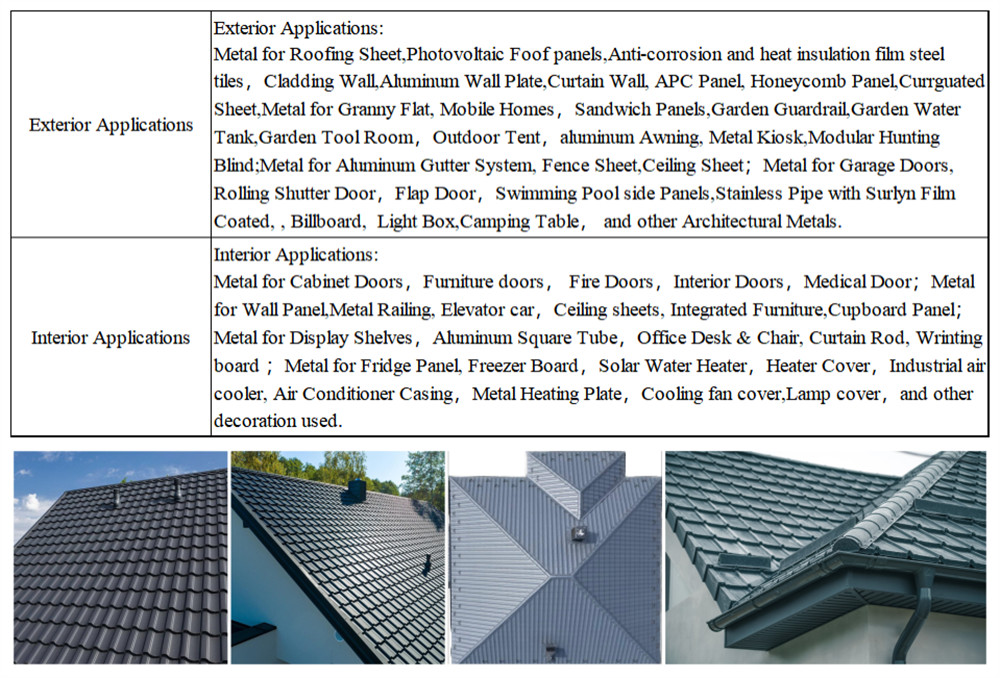

Exterior Applications

Exterior Applications:

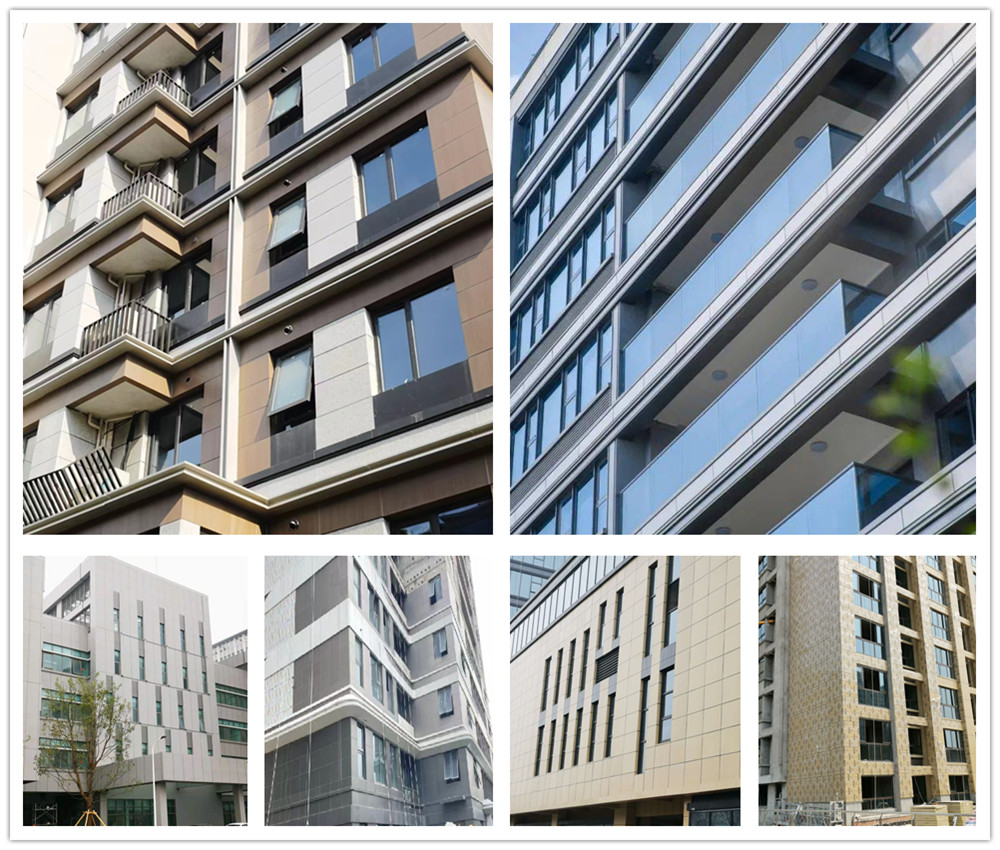

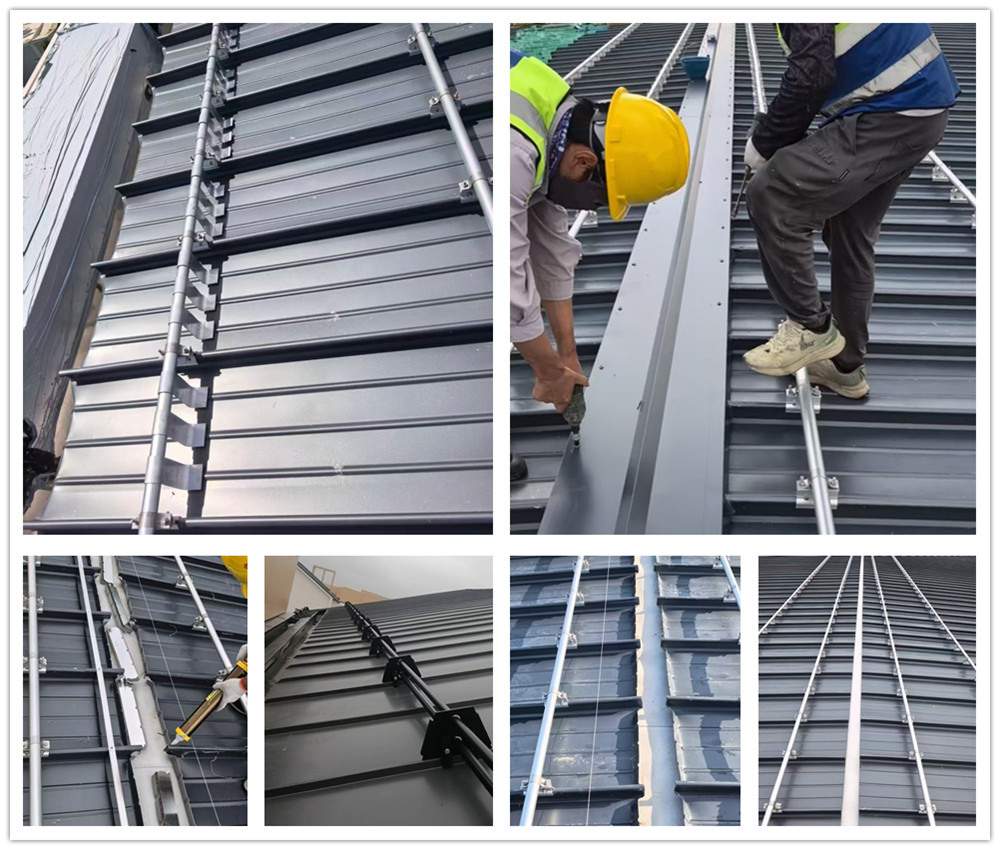

Metal for Roofing Sheet,Photovoltaic Foof panels,Anti-corrosion and heat insulation film steel tiles，Cladding Wall,Aluminum Wall Plate,Curtain Wall, APC Panel, Honeycomb Panel,Currguated Sheet,Metal for Granny Flat, Mobile Homes，Sandwich Panels,Garden Guardrail,Garden Water Tank,Garden Tool Room，Outdoor Tent，aluminum Awning, Metal Kiosk,Modular Hunting Blind;Metal for Aluminum Gutter System, Fence Sheet,Ceiling Sheet；Metal for Garage Doors, Rolling Shutter Door，Flap Door，Swimming Pool side Panels,Stainless Pipe with Surlyn Film Coated, , Billboard, Light Box,Camping Table， and other Architectural Metals.

Interior Applications

Interior Applications:
Metal for Cabinet Doors，Furniture doors， Fire Doors，Interior Doors，Medical Door；Metal for Wall Panel,Metal Railing, Elevator car，Ceiling sheets, Integrated Furniture,Cupboard Panel；Metal for Display Shelves，Aluminum Square Tube，Office Desk & Chair, Curtain Rod, Wrinting board ；Metal for Fridge Panel, Freezer Board，Solar Water Heater，Heater Cover，Industrial air cooler, Air Conditioner Casing，Metal Heating Plate，Cooling fan cover,Lamp cover，and other decoration used.
