Product details

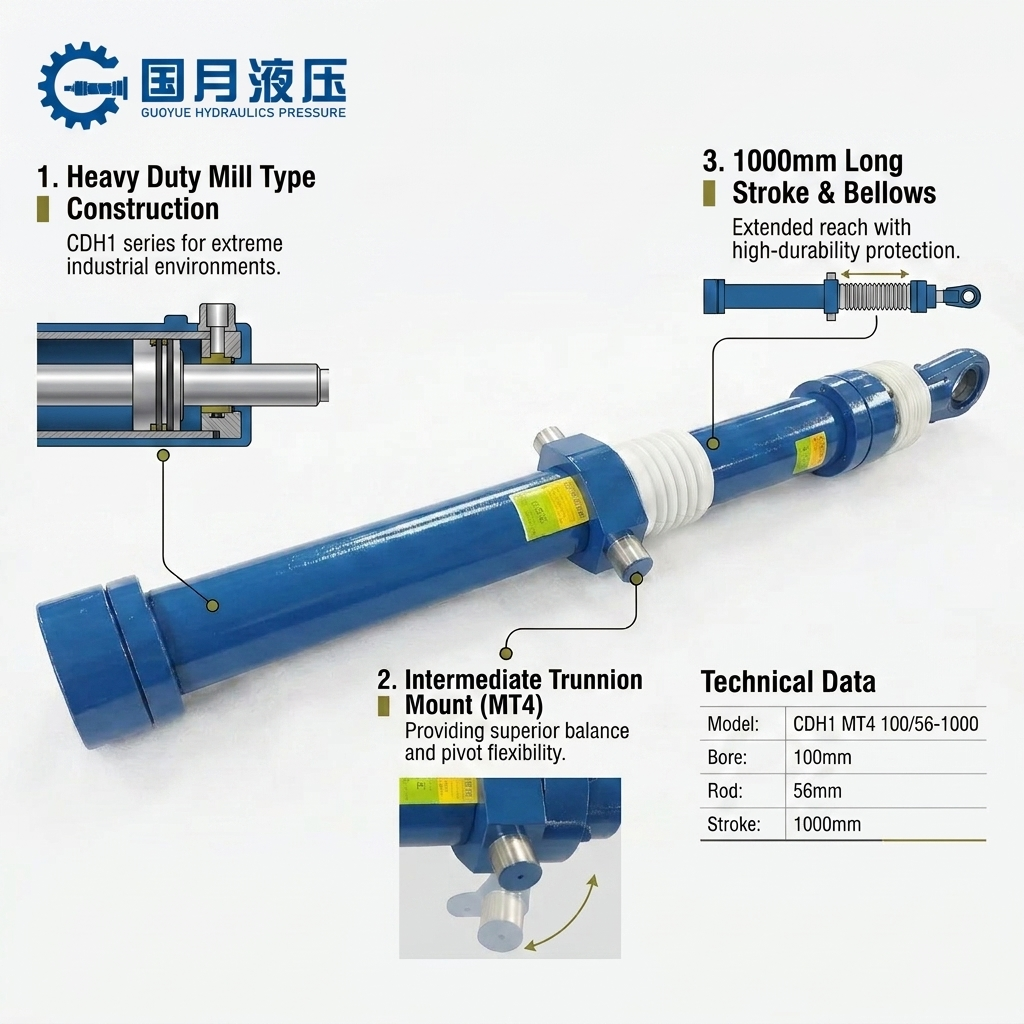

Specification:CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

Manufactured in strict accordance with ISO 6022 and DIN 24333 heavy-duty metallurgical standards.
Model specs: 100mm bore diameter and 56mm rod diameter with a precision 1000mm extended stroke.
Equipped with high-durability white protective bellows (boots) to safeguard the rod surface from dust and contaminants in extreme environments.
Features the MT4 intermediate trunnion mount, providing superior pivot flexibility and optimized force distribution.
Designed for a nominal working pressure of 250 Bar, with every unit undergoing 100% dynamic pressure testing.
Piston rod is induction hardened and hard chrome plated (30-50μm) for maximum wear resistance and seal longevity.
Utilizes high-performance metallurgical grade seals (Parker/SKF) to ensure zero-leakage during high-frequency industrial cycles.
Provides 100% mechanical interchangeability with the Rexroth CDH1 series for direct drop-in replacement.
Engineered specifically for extreme industrial scenarios including steel mills, large-scale forging presses, and heavy mining machinery.
