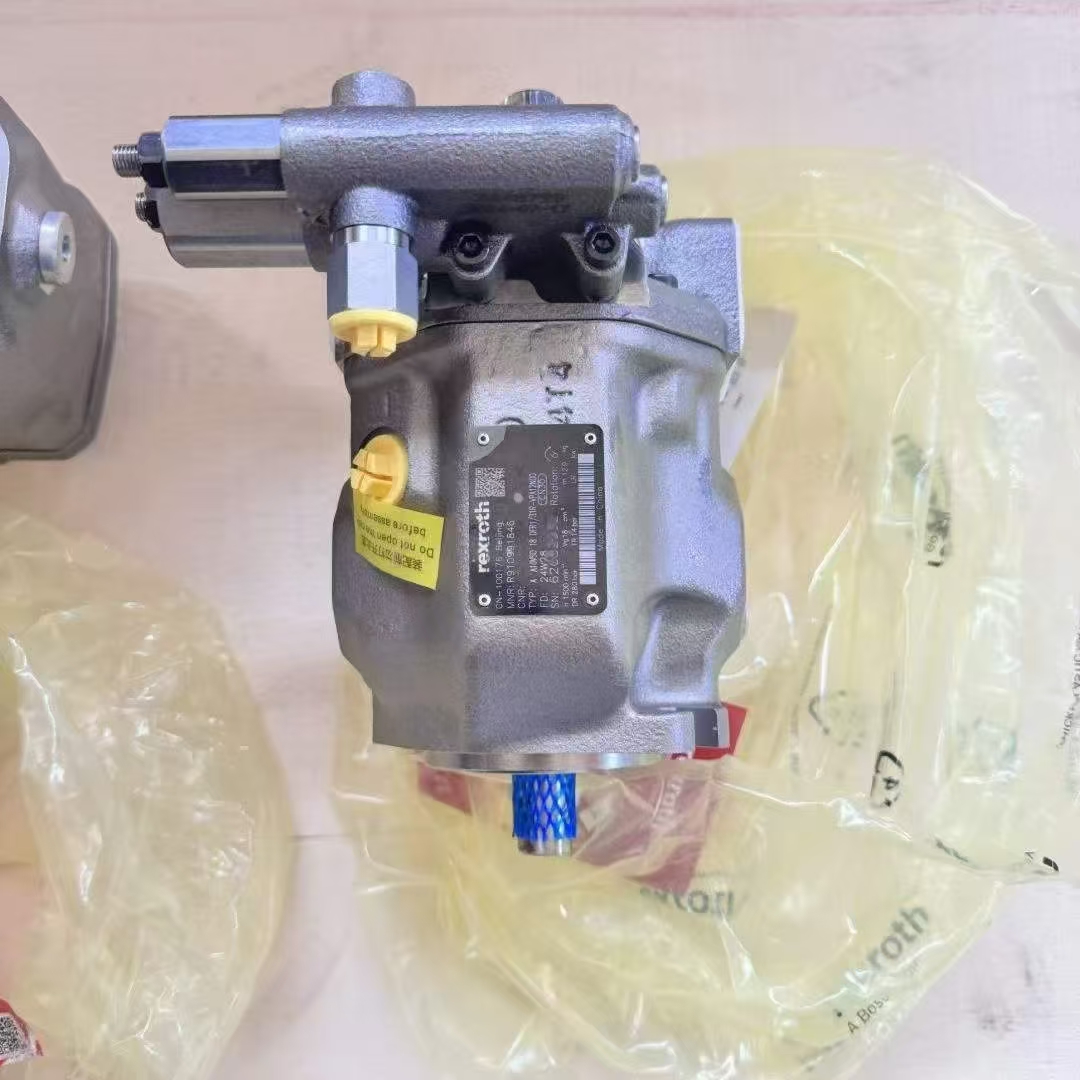

A10VSO Series Swashplate-Type Axial Piston Variable Displacement Pump (Open Circuit)

1. Displacement Specifications (cc/r)

• 18, 28, 45, 71, 100, 140 (Commonly used: 28/45/71/100)

2. Pressure

• Rated Pressure: 28 MPa (280 bar)

• Peak Pressure: 35 MPa (350 bar)

3. Rotational Speed

• Rated Speed: 1,500–2,200 rpm (depending on specifications)

• Maximum Speed: 2,500–3,000 rpm (depending on operating conditions)

4. Fluid and Temperature

• Medium: Mineral oil (HL/HM), fire-resistant fluids (HFA/HFB/HFC)

• Temperature: -20°C to +80°C

• Viscosity: 10–100 mm²/s (optimal: 20–40)

Model Variants

• A10VSO18DFR1

• A10VSO18DR

• A10VSO18DFR

• A10VSO18DRG

• A10VSO18DR1

• A10VSO28DFR1

• A10VSO28DR

• A10VSO28DRG

• A10VSO28DFR

• A10VSO28DFLR

• A10VSO28DR1

• A10VSO45DFR1

• A10VSO45DR

• A10VSO45DFR

• A10VSO45DRG

• A10VSO45DFLR

• A10VSO45DRS

• A10VSO71DFLR

• A10VSO71DR

• A10VSO71DFR

• A10VSO71DRS

• A10VSO71DFR1

• A10VSO71DFLR

• A10VSO71LA6DS

• A10VSO100DFLR

• A10VSO100ED72

• A10VSO100DRS

• A10VSO100DR

• A10VSO100DRG

• A10VSO100LA7DS

• A10VSO140DR

• A10VSO140DFR1

• A10VSO140DRS

• A10VSO140DFLR

• A10VSO140DRG
