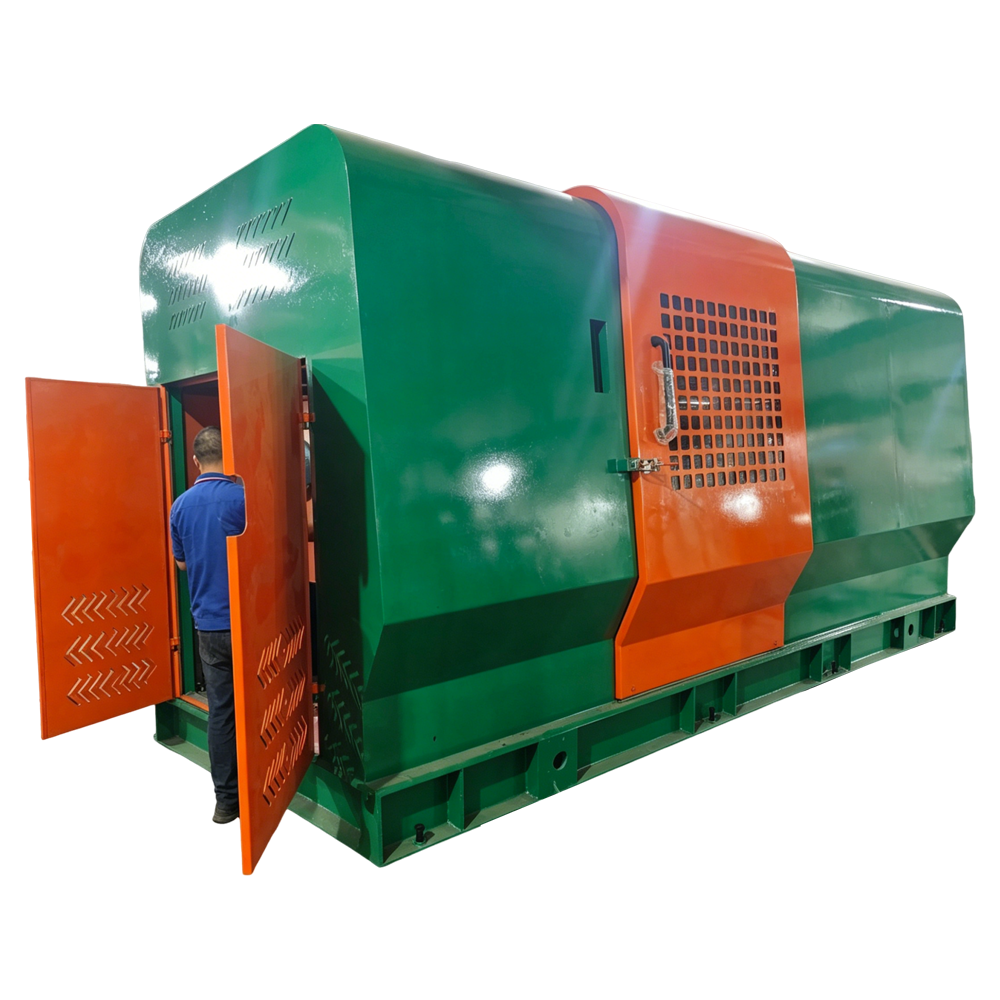

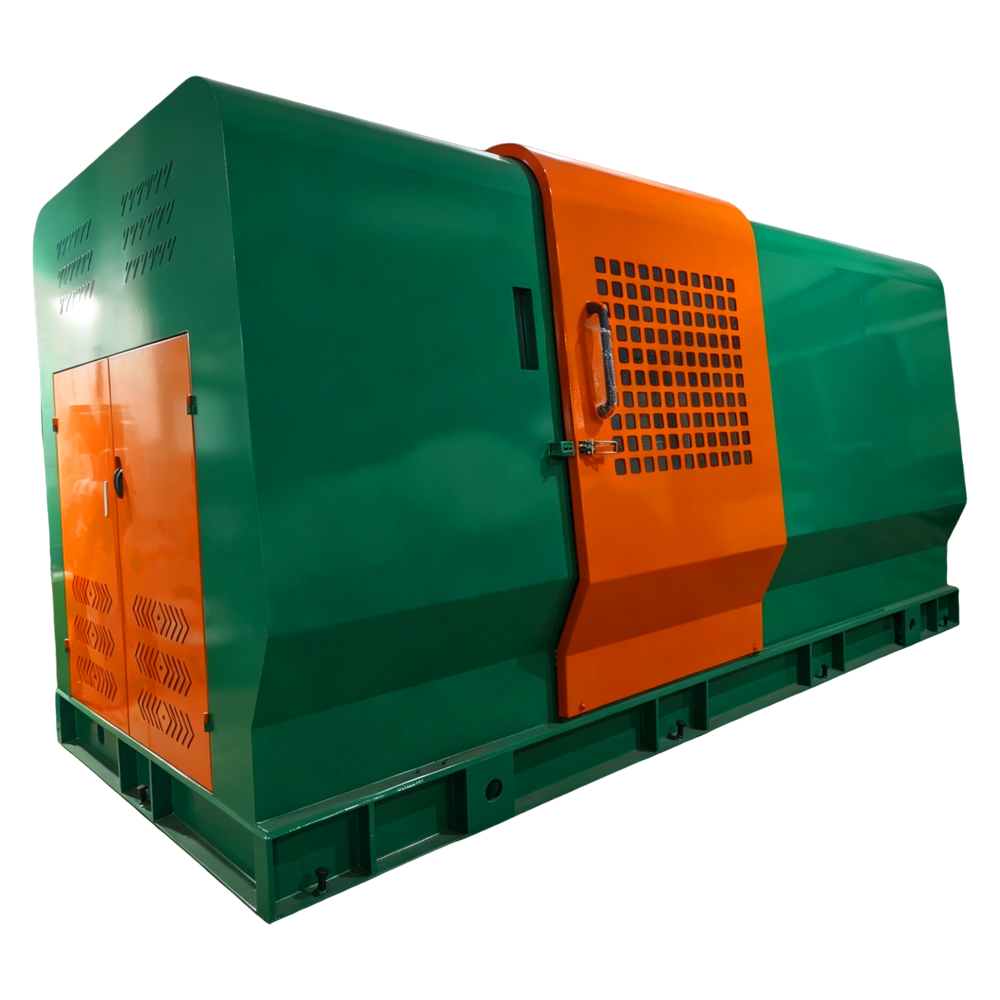

1250 Cantilever Single Twister

The 1250 Cantilever Single Twister is built for cable manufacturers who want faster production without dealing with bulky traditional cabling equipment. Compared with old-style frame twisting systems, this machine uses a cantilever shaftless structure, so reel changing feels much quicker and wire threading becomes far less troublesome during daily operation.

Item	Specification
Max Stranding Outer Diameter	Φ25mm (Stable production within Φ20mm)
Single Incoming Wire Diameter	Insulated core wire: 2.5mm ~ 8.0mm
Lay Length Range	30–360mm, adjusted via PLC touch screen, tolerance ≤0.5mm
Spindle Speed	0–600r/min, normal operating speed: 500r/min
Stranding Direction	S-lay (Left twist) / Z-lay (Right twist), one-key switching
Payoff Structure	Cantilever shaftless type, no shaft disassembly required, hydraulic lifting for reel change
Traversing System	Precision polished rod traversing, neat arrangement without wire pressing or jumping
Drive & Control	Variable frequency motor + 14-inch touch screen + PLC intelligent control (Customizable)
Meter Counting	High-precision electronic meter counter, auto stop at preset length
Main Motor Power	25HP
Power Supply	380V/50Hz (Customizable)

This cantilever single twisting machine is mainly used for cabling insulated core wires, power cables, control cables, electronic wires, and data cables. The machine runs smoothly at high speed while still keeping the lay length accurate, which matters a lot when customers care about cable appearance and internal structure consistency.

Why Many Cable Factories Prefer This Cantilever Single Twist Machine

Faster Reel Changing Saves Real Production Time

Traditional frame-type machines usually need shaft head disassembly during reel replacement, which slows everything down. This cantilever single twist machine skips that entire process with its shaftless cantilever design.

Operators can change reels much faster using the hydraulic lifting system, especially during continuous production runs.

Higher Speed Without Making the Machine Complicated

hongli 1250 Cantilever Single Twister machine With spindle speed reaching 600r/min and stable operation around 500r/min, production efficiency is noticeably higher than many conventional setups used for medium-sized cable manufacturing.
