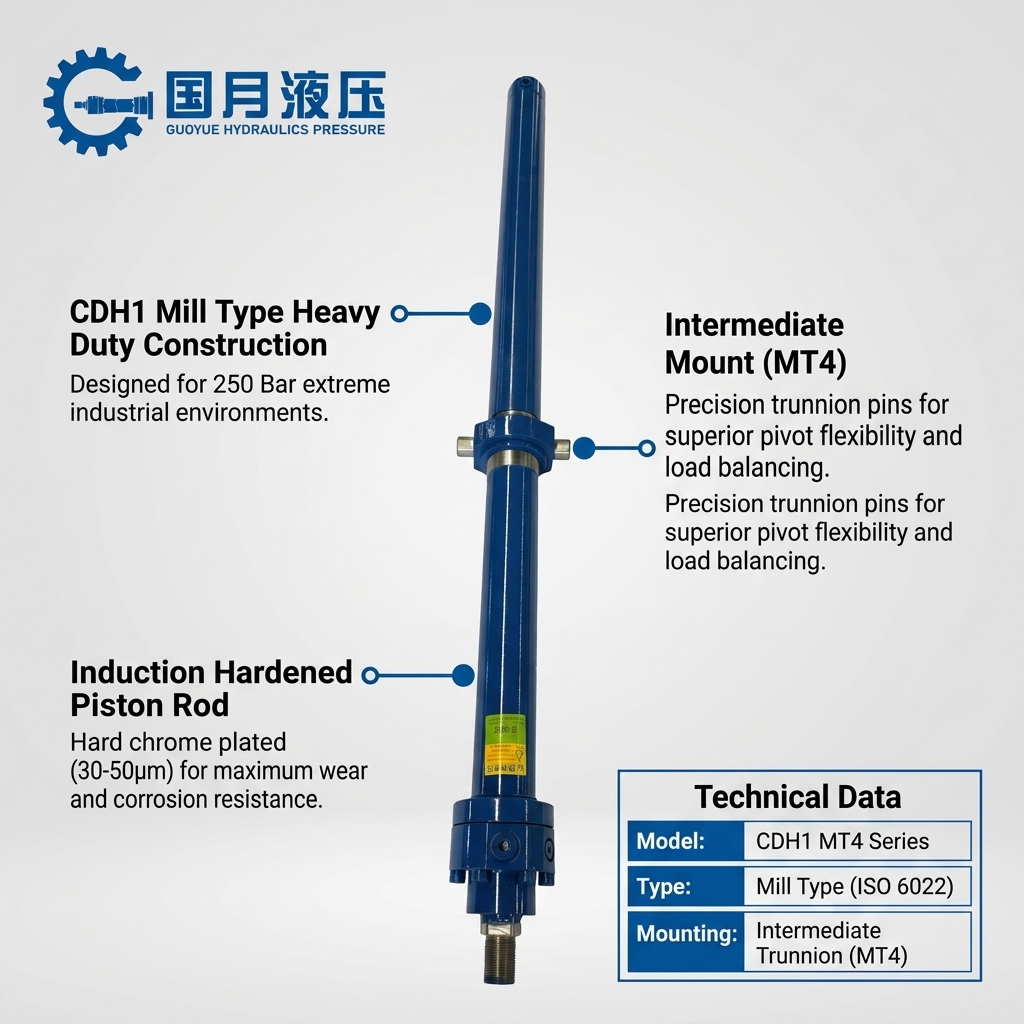

CDH1 MT4 63/45-1400 Hydraulic Cylinder

2 month ago

1 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification:CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

Manufactured to ISO 6022 and DIN 24333 standards for 250 Bar heavy-duty metallurgical cycles.
Equipped with an MT4 intermediate trunnion mount, allowing for superior pivot flexibility and load compensation.
Heavy-duty mill type construction with long-stroke capability, optimized for stable axial force delivery.
Piston rod features induction hardening and hard chrome plating (30-50μm) for extreme wear resistance.
Integrated with premium high-pressure sealing systems (Parker/SKF) for zero-leakage performance under shock loads.
100% mechanically interchangeable with Rexroth CDH1 series, ensuring easy drop-in replacement.
Specifically engineered for high-vibration environments including steel mills, ladle tilting, and mining equipment.

Attribute	Specification
Model	CDH1 MT4 Series (Long Stroke)
Series Type	Mill Type Heavy-Duty
Standard	ISO 6022 / DIN 24333
Mounting	MT4 Intermediate Trunnion
Nominal Pressure	250 Bar (25 MPa)
Rod Treatment	Induction Hardened & Chrome Plated
Interchange	100% Rexroth Compatible
