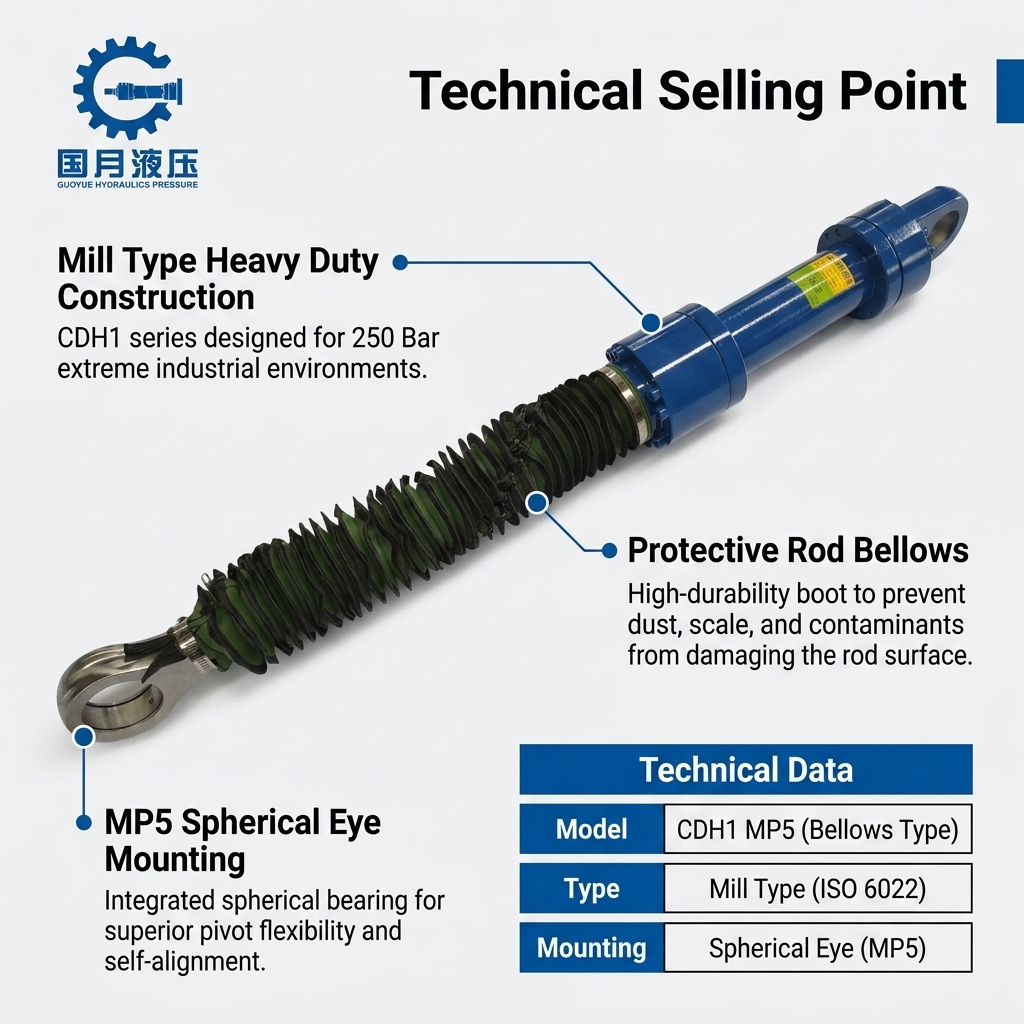

CDH1 MP5 63/45-185 Hydraulic Cylinder

2 month ago

2 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification:CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

Manufactured to ISO 6022 / DIN 24333 standards for 250 Bar heavy-duty industrial service.
Equipped with high-durability protective bellows (boots) to shield the piston rod from abrasive dust and contaminants.
Features an MP5 spherical eye mount at the cap end, allowing for self-alignment and elimination of lateral loads.
Heavy-duty mill type construction with precision-honed tubes ensures maximum reliability in extreme heat and vibration.
Piston rod is induction hardened and hard chrome plated (30-50μm) for ultimate wear resistance.
Integrated with premium high-pressure sealing systems (Parker/SKF) for zero-leakage performance under shock loads.
Ideal for steel mill ladle control, infrastructure machinery, and heavy mining equipment in harsh environments.

Attribute	Specification
Model	CDH1 MP5 (Bellows Protected)
Series Type	Mill Type Heavy-Duty
Standard	ISO 6022 / DIN 24333
Protection	High-Durability Rod Bellows
Mounting	MP5 Spherical Eye
Nominal Pressure	250 Bar (25 MPa)
Interchange	100% Rexroth CDH1 Compatible
