Product details

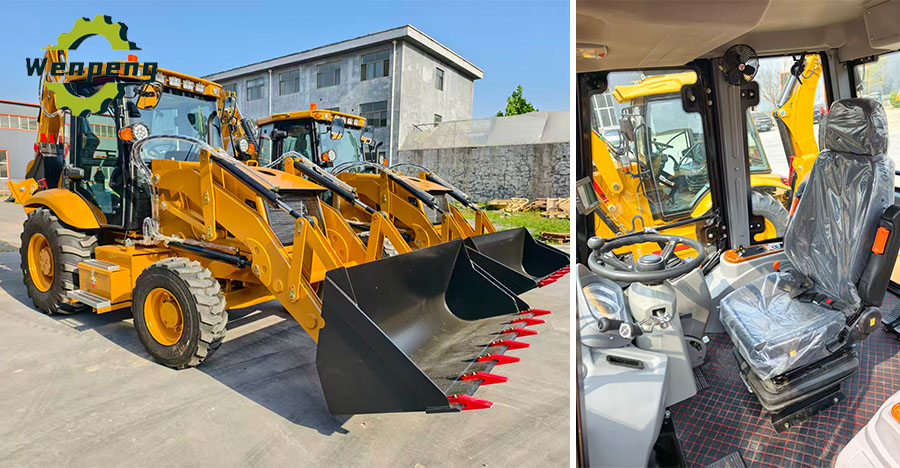

Wenpeng Group supplies high-quality backhoe loaders: the EX388F 8-ton backhoe loader with CE certification and a 12-month warranty. As an all-round engineering machine, it is an ideal option for construction enterprises, road maintenance crews, agricultural development projects and municipal engineering works.

Features

1. Multifunctional design

The 8ton backhoe loader integrates excavation and loading functions, and is equipped with a quick-change device to facilitate the replacement of working attachments, such as buckets, leveling shovels, grabs, forks, and breaker hammers, to meet different operating requirements;

2. High Efficiency & Outstanding Stability

Featuring a heavy-duty robust frame, high-efficiency hydraulic system and dependable power assemblies, the 8Ton backhoe loader steadily and efficiently handles digging, loading, earthmoving, ground leveling, trenching and material handling. Fitted with A-type hydraulic outriggers for enhanced equipment stability during operation.

3. Ergonomic Operator Cabin

Custom roll-over protective structure (ROPS) cabin equipped with air conditioning, warning beacon lights and rearview camera, ensuring a safe and comfortable operating environment for operators.

4. Telescopic Digging Arm with Swing Boom

The machine comes with a telescopic digging arm to extend working radius and digging depth. Swing boom, suitable for working in narrow spaces and near walls.

Parameters

EX388F
Engine Model	Yuchai/Weichai/Cummins
Rated power (kw)	75
Overall weight (kg)	8000
Overall size L'W'"H (mm)	6450×2300×3700mm
Wheel base(mm)	2250
Min.ground clearance(mm)	300
Min.turning radius(mm)	6581
Loader bucket capacity(m3)	1.3
Loader breakout force(KN)	38
Loader lifting capacity(kg)	2500
Loader Dumping height(mm)	2800
Loader Dumping reach(mm)	1162
Loader digging depth(mm)	52
Backhoe bucket capacity(m3)	0.35
Backhoe bucket digging force(KN)	47
Backhoe swing angle(")	190
Backhoe dumping height(mm)	3795
Backhoe max digging depth(mm)	5100
Max. traction force(KN)	39
