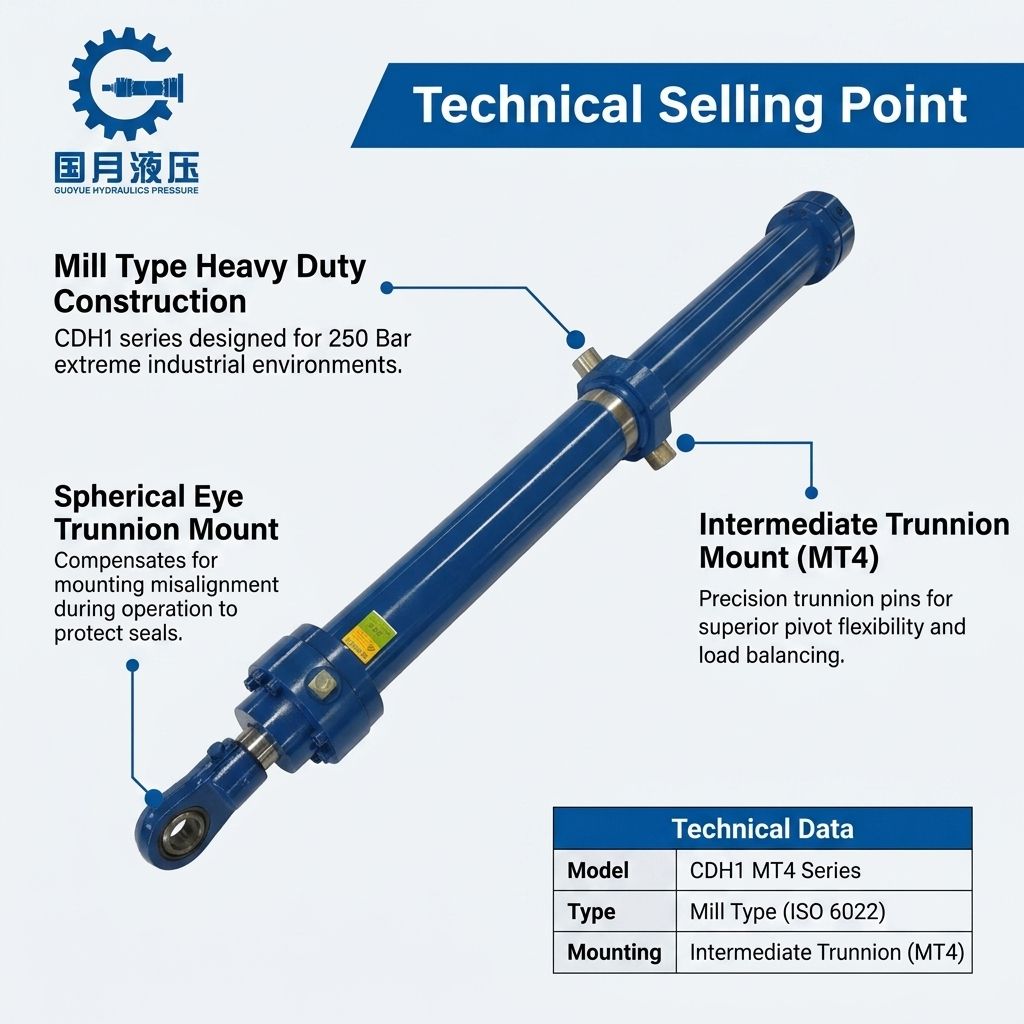

CDH1 MT4 125/70-1690 Hydraulic Cylinder

2 month ago

0 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification:CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

Manufactured to ISO 6022 / DIN 24333 standards for 250 Bar heavy-duty industrial service.
Features a precision MT4 intermediate trunnion mount, providing superior pivot flexibility and optimized load balancing.
Equipped with a spherical eye rod end, engineered to compensate for mounting misalignment during long-stroke operation.
Heavy-duty mill type construction with induction hardened and hard chrome plated piston rods (30-50μm).
Integrated with premium high-pressure sealing systems (Parker/SKF) ensuring zero-leakage under intense vibration.
100% mechanically interchangeable with the Rexroth CDH1 series, ideal for direct infrastructure upgrades.
Optimized for steel mill rolling lines, heavy forging presses, and specialized mining equipment.

Attribute	Specification
Model	CDH1 MT4 Series
Series Type	Mill Type Heavy-Duty
Standard	ISO 6022 / DIN 24333
Mounting	MT4 Intermediate Trunnion
