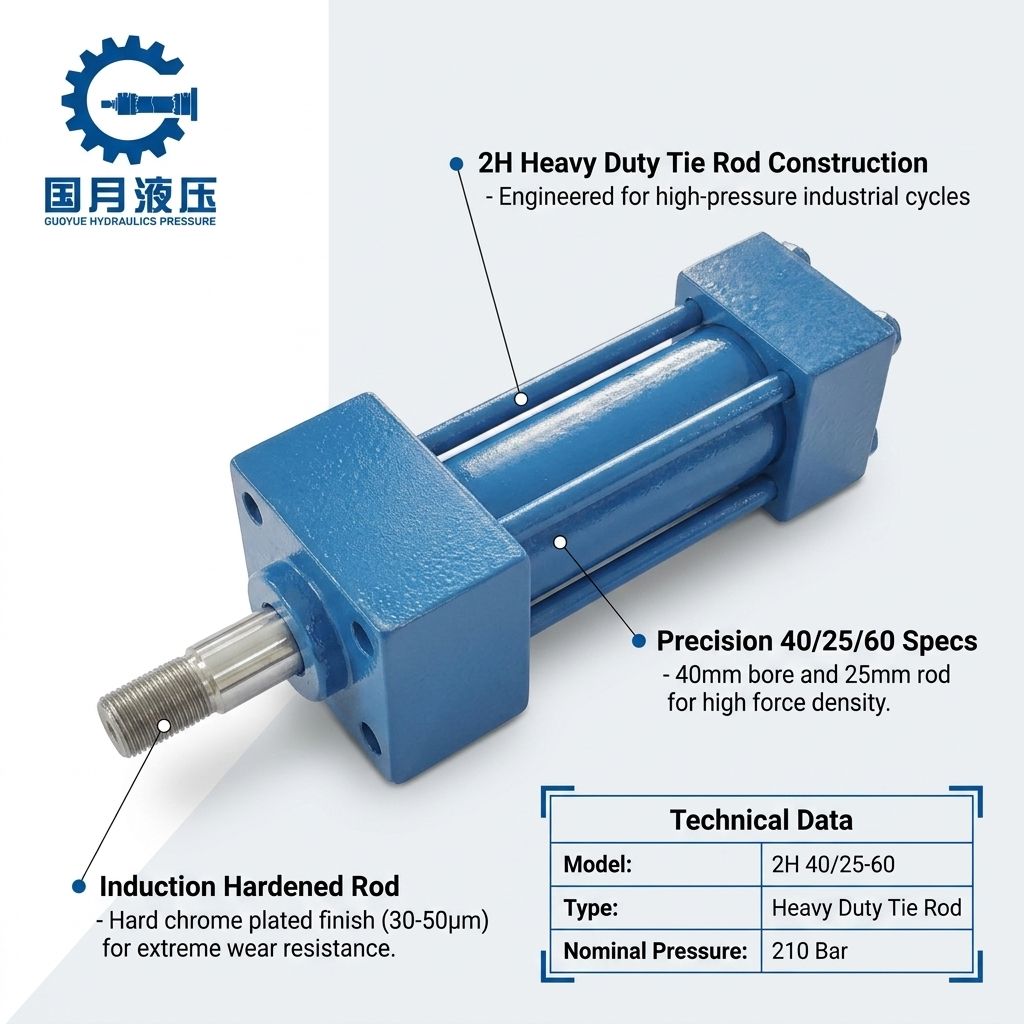

40/25-60 Tie Rod Hydraulic Cylinder

2 month ago

2 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification:2H Series Cylinder,3H Series Cylinder, Heavy Duty Tie Rod Cylinder,ISO 6020/2 Hydraulic Cylinder, 210 Bar Hydraulic Cylinder

Manufactured to heavy-duty industrial standards, engineered for high-pressure operations up to 210 Bar (3000 PSI).
Compact 40/25-60 configuration (40mm Bore / 25mm Rod / 60mm Stroke) providing high force-to-size ratio for modular machinery.
Utilizes a high-tensile four-tie-rod construction for superior structural rigidity and ease of seal replacement.
Piston rod is induction hardened and hard chrome plated (30-50μm) to ensure long-term wear resistance and corrosion protection.
Equipped with premium high-pressure sealing kits (Parker/SKF) for zero-leakage performance under repetitive shock loads.
100% interchangeable with standard 2H/3H series (e.g., Parker 2H), facilitating direct maintenance and equipment upgrades.
Optimized for high-cycle factory automation, heavy-duty clamping fixtures, and metalworking equipment.

Attribute	Specification
Model	2H 40/25-60
Series Type	Heavy Duty Tie Rod
Nominal Pressure	210 Bar (3000 PSI)
Bore / Rod	40 mm / 25 mm
Stroke	60 mm
Rod Finish	Hard Chrome Plated (Ra < 0.2μm)
Interchange	100% 2H/3H Standard Compatible
