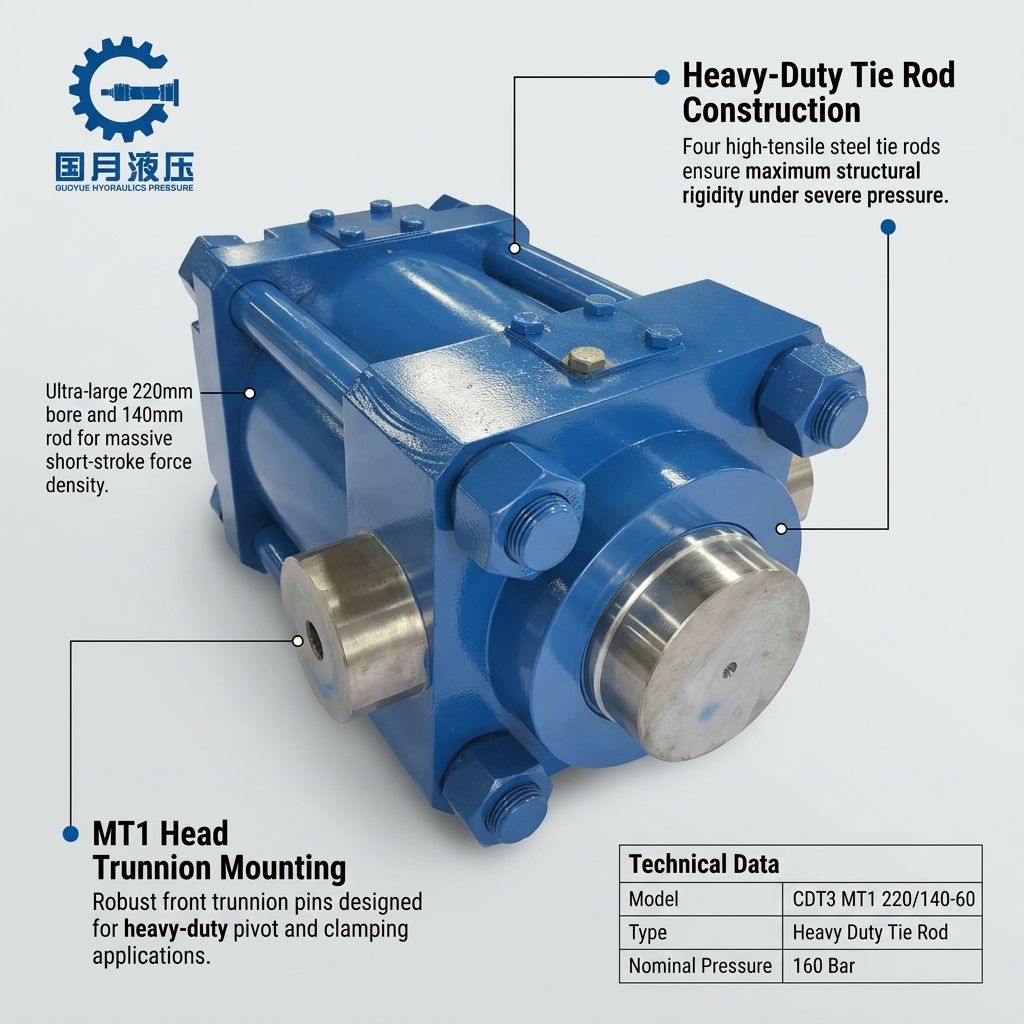

Tie Rod 220/140-60 Hydraulic Cylinder

2 month ago

3 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification:HMD Series, HMI Series,ISO 6020/2 Cylinder,Industrial Hydraulic Cylinder,Tie Rod Cylinders

Manufactured in strict accordance with ISO 6020-2 / DIN 24554 heavy-duty tie-rod standards.
Specialized 220/140-60 short-stroke configuration (220mm Bore / 140mm Rod / 60mm Stroke) designed to deliver immense clamping forces in confined spaces.
Features high-strength four-tie-rod construction using high-tensile steel to resist extreme repetitive pressure shocks.
Equipped with robust, low-profile MT1 head trunnion mounting (front trunnions) designed to manage massive pivoting and reaction loads.
The ultra-thick 140mm piston rod is induction hardened and hard chrome plated (30-50μm) for ultimate resistance to deflection and wear.
Sealed with premium metallurgical grade seal kits (Parker/SKF) for zero-leakage performance under high-frequency operation.
100% mechanically interchangeable with standard Rexroth CDT3 MT1 series, perfect for rapid machine tool and press upgrades.

Attribute	Specification
Model	CDT3 MT1 220/140-60
Series Type	Heavy-Duty Large Bore Tie Rod
Standard	ISO 6020-2 / DIN 24554
Mounting	MT1 Head Trunnion
Bore / Rod / Stroke	220 mm / 140 mm / 60 mm
Nominal Pressure	160 Bar (16 MPa)
Interchange	100% Rexroth CDT3 Compatible
