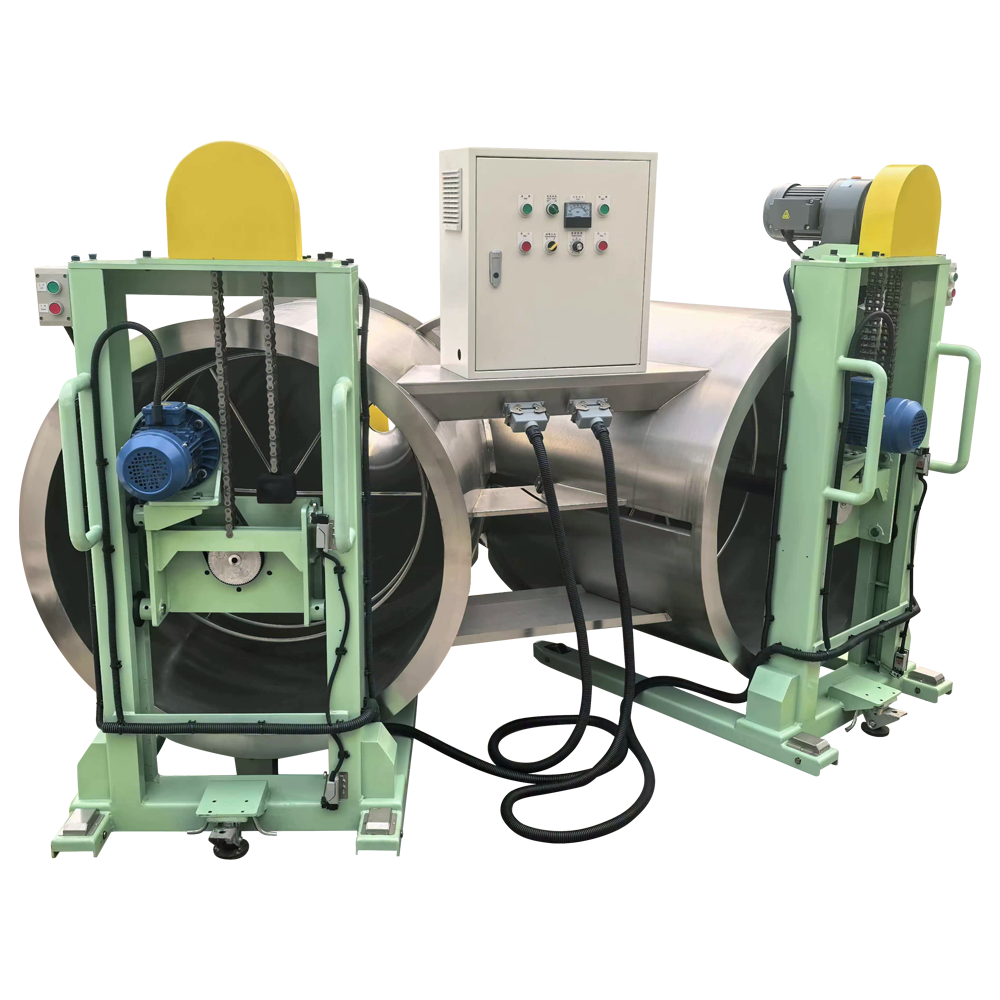

Double-head Motorized Drum Pay-off Machine

In high-speed cable extrusion, stopping the line just to change drums wastes more time than most factories want to admit. hongli Double-head Motorized Drum Pay-off Machine comes in.

Item	Specification
Driving Motor	1HP AC Motor
Payoff Trolley	Manual moving, electric lifting
Lifting Motor	400W, Gear Ratio 1:200
Barrel Structure	Double-layer SUS201 brushed stainless steel. Filled with sound insulation cotton to reduce noise during high-speed operation
Payoff Shaft	Customized according to customer reel size
Max Payoff Speed	1000m/min
Applicable Wire	0.5~4mm² stranded copper wire
Power Supply	AC 380V 50Hz, 3-phase 5-wire
Configuration	Mobile trolley + inclined barrel

This machine is designed for continuous wire feeding during extrusion production, helping operators switch drums smoothly while the line keeps running.

Continuous Wire Pay-off Machine for Extrusion Line

The whole structure is built for practical workshop use. From the dual-head drum setup to the sound-reducing inclined bucket body, every part focuses on keeping wire feeding steady at high speed without creating extra noise or unnecessary operator stress.

Why This Continuous Wire Pay-off Machine Works Well on Fast Lines

Non-stop Drum Changing Saves Production Time

The biggest advantage of this Continuous Wire Pay-off Machine for Extrusion Line is simple: the line does not need to stop every time one drum finishes.While one side is running, the second drum can be prepared in advance, which helps reduce downtime during continuous extrusion work.

High-speed Running Without Excessive Noise

At speeds close to 1000m/min, noise becomes a real workshop problem. This machine uses a double-layer inclined drum body made from SUS201 brushed stainless steel, with soundproof cotton filled inside the structure.The result feels noticeably quieter compared.
