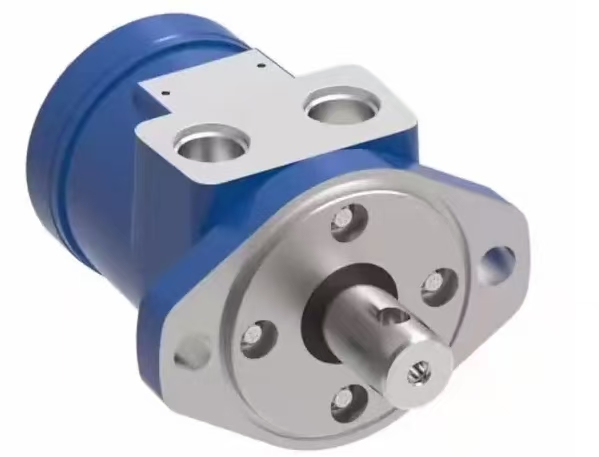

Eaton Char‑Lynn 101‑1323‑009 Hydraulic Motor (H‑Series Geroler Motor)

Product Overview

Low‑speed high‑torque (LSHT) general‑purpose hydraulic motor, formerly under Eaton brand, now part of Danfoss product portfolio.

Key Specifications

- Model No.: 101‑1323‑009 (commonly abbreviated as 101‑1323)

- Displacement: 2.8 in³/r (46 cm³/r)

- Mounting: 2‑bolt SAE A flange, pilot diameter φ82.6 mm

- Output Shaft: 1‑inch plain shaft with 0.406‑inch cross hole, 0.62‑inch from shaft end

- Port Size: 0.875‑14 O‑ring (#12 SAE)

- Continuous Pressure Rating: 1800 psi (124 bar)

- Peak Pressure: 2400 psi (165 bar)

- Max. Flow Rate: 12 gpm (45 lpm)

- Max. Speed: 970 rpm

- Output Torque: Continuous 650 lbf‑in (73 Nm); Peak 876 lbf‑in (99 Nm)

- Weight: Approx. 14 lbs (6.4 kg)

Construction & Features

- Structure: Geroler® gear set with valve plate, only 3 major moving parts, high efficiency and low noise.

- Sealing: High‑pressure resistant shaft seal, suitable for series or parallel installation.

- Material: Cast iron housing, hardened alloy steel for shaft and rotor for long service life.

- Rotation: Reversible by swapping inlet and outlet oil lines with consistent bidirectional torque performance.

Typical Applications

- Agriculture: Harvesters, lawn mowers, straw shredders

- Construction: Skid‑steer loader attachments, sweepers, conveyors

- Others: Winches, woodworking machinery, small‑size drilling rigs

Cross Reference & Replacement

- Equivalent part numbers: 101‑1323, 1011323, 1011323009

- Alternative series: Danfoss OMPH, BMP series (46 cc displacement)
