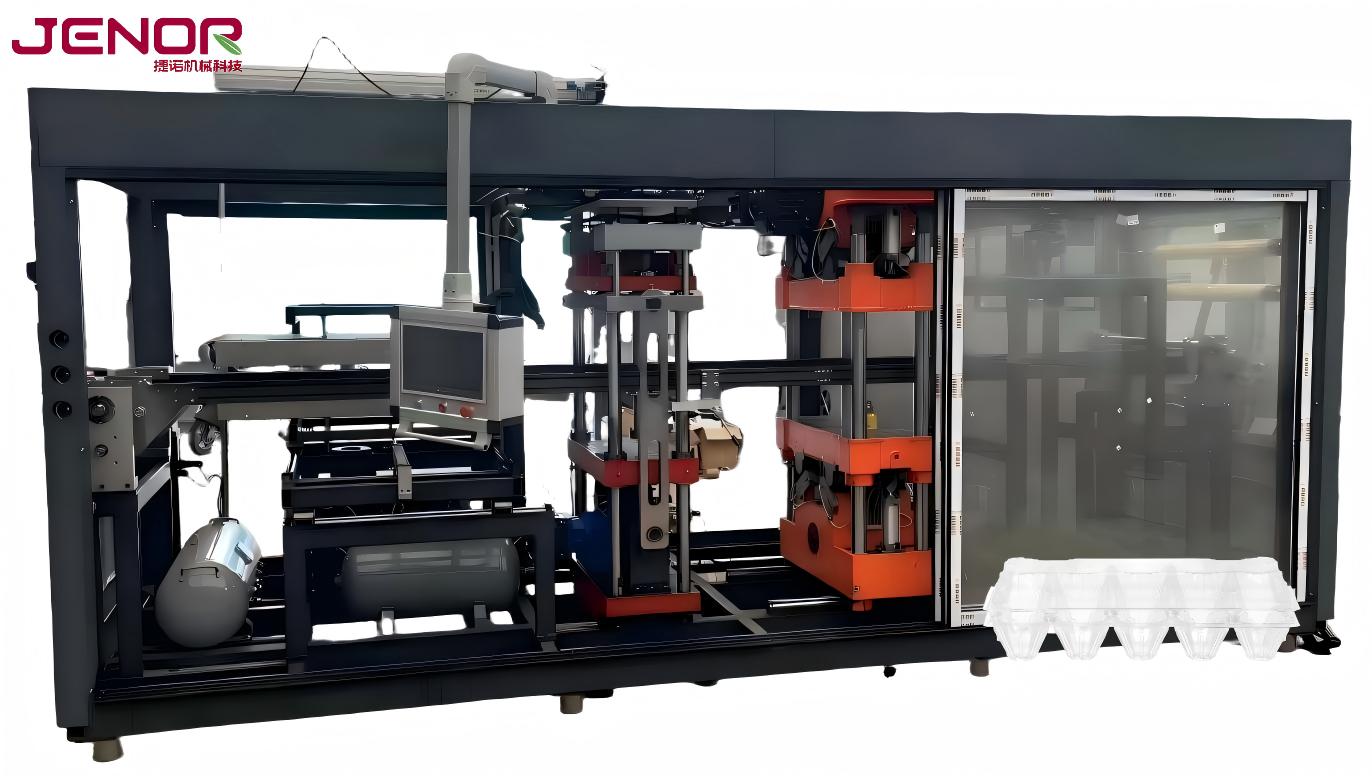

The JN640 plastic thermoforming machine adopts the latest international plastic sheet thermoforming technology. It is an integrated design of mechanics, electricity and pneumatics, controlled by a microcomputer and programmable logic controller (PLC), featuring a human-machine interface operation and servo screw drive. It can complete the processes of sheet feeding, heating and forming, punching, trimming and stacking in one go. It is a plastic sheet forming equipment.
Application
It is mainly applicable to the forming of plastic sheet materials such as HIPS, PS, PVC, PET, PP, etc., for the production of various boxes, trays, fast food boxes, plates, lids, biscuit trays, mobile phone trays and other blister packages.

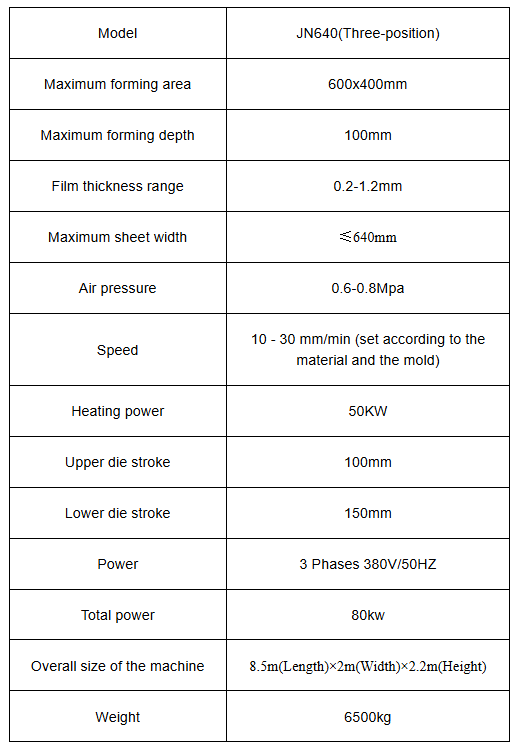

Main technical parameters
Advantages and Features
1. This machine uses servo motors for feeding, with an error of no more than 1mm for each feeding. The feeding speed and length can be set simply through programming on the touch screen, which is convenient and accurate.
2. The entire machine is controlled by a PLC system and a touch screen, improving control accuracy and facilitating operation.
3. The machine uses upper and lower heating boxes for heating, allowing for adjustment according to different materials, thicknesses, and properties, reducing heating time and accelerating the molding speed.
4. The molding and punching of this machine are driven by servo motors, which speeds up the molding process.
5. The closed heating box body uses a temperature module to effectively utilize heat energy, save electricity, and ensure the stability of temperature control.
6. This machine is equipped with a clamping device and a conveying device, significantly increasing the production speed.
7. This machine has the function of automatically collecting waste materials, which enhances the recycling and reuse of waste materials and simplifies manual operations.
8. This machine has vacuum injection molding, positive pressure molding, expanding the application range of the machine.
9. The production speed of this machine for empty machines can reach 10-45 times per minute, which is significantly higher than the traditional 5-6 times per minute, resulting in a substantial increase in output.
10. The molding specifications can be changed according to different customer requirements, and the length and width of the molding can be adjusted.
