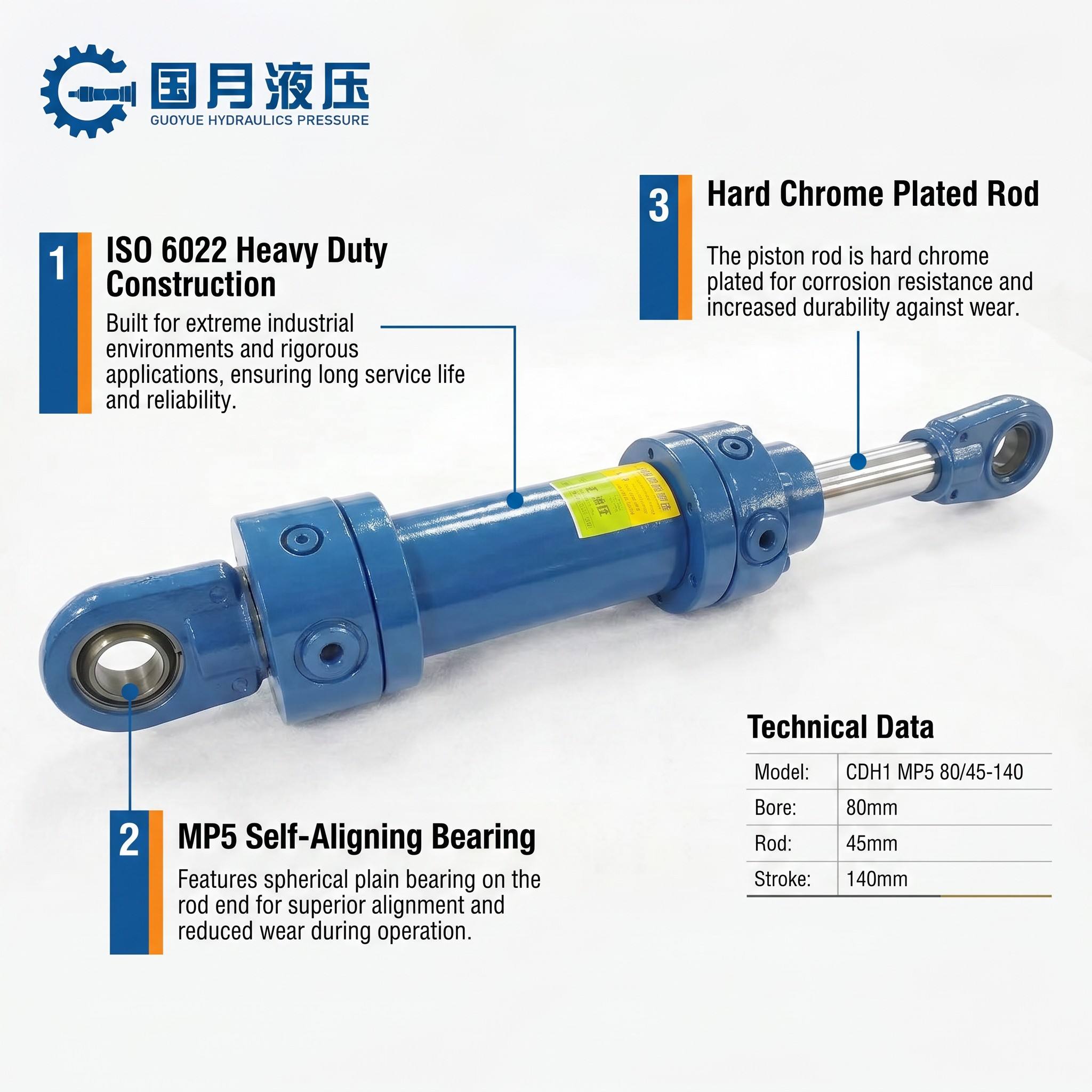

CDH1 MP5 80/45-140 Hydraulic Cylinder

2 month ago

3 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification:CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed Cylinder

Heavy Duty Hydraulic Cylinder / Mill Type Cylinder / CDH1 MP5 / ISO 6022 / 250 Bar / Industrial Hydraulic

Manufactured in accordance with ISO 6022 and DIN 24333 international standards.
In bore sizes from 40mm to 320mm available.
This specific unit features an 80mm bore with a 45mm rod diameter and a 140mm stroke.
Rated working pressure is 250 Bar (25 MPa), with a maximum static test pressure of 375 Bar.
Heavy-duty bolted flange construction designed for extreme impact resistance and easier field maintenance compared to tie-rod cylinders.
MP5 mounting style equipped with self-aligning spherical bearings at the rear clevis to compensate for angular misalignment and prevent side-loading on seals.
Piston rod manufactured from high-tensile C45 steel, induction hardened and hard chrome plated with a thickness of 30-50μm (surface finish Ra ≤ 0.4μm).
100% interchangeable with Rexroth CDH1, Parker, and Eaton mill-type series in all mounting dimensions.
Sealing system utilizes multi-lip NBR or Viton seals combined with heavy-duty metal-cased wipers for foundry, steel mill, and mining environments.
Stroke options available from 10mm to 6000mm depending on bore size.
Ambient temperature range from -20°C to +80°C (up to +150°C with specialized Viton seal kits).
Piston design features bronze-filled PTFE wear rings to prevent metal-to-metal contact and extend service life under high-frequency operation.
