103-1022-012 is a classic low-speed high-torque geroler hydraulic motor from the Char-Lynn brand under Eaton, belonging to the 2000 Series. Below are its specific parameters and configuration details.
1. Part Number Breakdown
· 1022 — Displacement code, indicating 22.6 in³/rev (approx. 370 cc/rev)
· 012 — Configuration code, defining the specific shaft, flange, and port style (this code typically corresponds to: standard 1.25-inch straight shaft + 4-bolt flange + side ports)
2. Key Performance Parameters
Max. Continuous Pressure Differential 2500 psi (approx. 172 bar)
Max. Intermittent Pressure Differential 3000 psi (approx. 207 bar)
Max. Continuous Flow 75 gpm (≈ 284 L/min)
Continuous Speed Range Approx. 10 – 350 rpm (intermittent up to 450 rpm+)
Max. Output Power Approx. 50 hp (37 kW)
3. Physical Configuration (Configuration Code -012)
· Mounting Flange: 4-bolt flange (pilot diameter 3.25 inches, bolt circle 4.188 inches, bolts 3/8-16 UNC)
· Ports: Main ports are SAE 7/8-14 UNF O-ring seal, side-ported (side inlet and outlet)
· Drain Port: Standard SAE 1/4-inch port (case drain must be connected separately back to the reservoir)
4. Technical Features
· Geroler Gear Set Structure: Low-speed high-torque output, capable of directly driving wheels, winches, augers, etc., without a gearbox.
· Balance Plate Design: Built-in pressure-compensated balance plate automatically adjusts end-face clearance, maintaining high volumetric efficiency throughout the service life.
· Bi-directional Operation: Standard symmetrical design allows clockwise and counter-clockwise rotation.
· High Reliability: Uses needle roller bearings and high-pressure seals, suitable for long-duration heavy-duty applications.
· Interchangeability: Industry-standard mounting interface with a wide range of compatible adapters and replacements available on the market.
5. Common Applications
· Construction and pavement equipment (sweepers, milling machines, drilling rigs)
Core Analysis of 103-1022-012 Hydraulic Motor
I. Product Positioning and Relationship with Hydraulic Systems
The 103-1022-012 is ahydraulic motor, a critical actuator within ahydraulic system. Its primary function is to convert hydraulic energy (pressure and flow) into mechanical energy (rotational torque and speed) to drive load equipment. This model may be applied in construction machinery, industrial equipment, or specialized machinery, with its specific low-speed high-torque or high-speed light-load characteristics requiring verification through detailed parameters.
II. Technical Features and Classification
1. Structural Type
• If classified as ahydraulic orbit motor, it employs an internal-meshing gerotor design, featuring an inner stator gear and an outer rotor gear, with a closed volume change generated via an eccentric mechanism. Such motors are characterized bycompact size, lightweight construction, and low starting pressure, making them suitable for low-pressure systems.
• If it is a radial piston motor (e.g., similar to the MCR40 model), torque is generated through the interaction between pistons and a cam, enabling smooth operation at extremely low speeds while allowing the output shaft to withstand high radial forces.
2. Key Parameters
• Displacement: Specific data must be consulted, but similar products typically range from 50–1,250 mL/r.
• Rated Pressure: Likely 250–420 bar (based on MCR40 data).
• Output Torque: Radial piston motors can reach up to 26,771 N·m (e.g., MCR40), while gerotor motors offer lower torque but higher starting efficiency.
• Speed Range: Low-speed motors may operate below 500 r/min, whereas high-speed variants exceed 5,000 r/min.
3. Performance Advantages
• High Efficiency and Reliability: Mechanical efficiency exceeds 85%, with minimal volumetric losses, reducing energy waste.
• Low-Speed Stability: Radial piston motors maintain smooth operation at ultra-low speeds, avoiding crawling phenomena.
• Impact Resistance: The output shaft is equipped with tapered roller bearings to handle high radial and axial loads, suitable for heavy-duty applications.
• Sealing and Pressure Resistance: Shaft seals withstand pressures up to 10 bar, preventing hydraulic fluid leakage and extending service life.
III. Application Scenarios and Selection Guidelines
1. Typical Applications
• Construction Machinery: Rotary mechanisms in excavators and cranes requiring low-speed high-torque output.
• Industrial Equipment: Mold opening/closing in injection molding and die-casting machines, demanding precise position control.
• Specialized Machinery: Mining equipment and marine steering gear, adapted to harsh environments and high loads.
2. Selection Criteria
• Load Matching: Choose displacement based on torque and speed requirements to avoid underperformance or power waste.
• System Pressure: Verify that the hydraulic system’s maximum operating pressure does not exceed the motor’s rated pressure.
• Mounting Interface: Check compatibility of the output shaft dimensions and flange connection with the equipment.
• Environmental Adaptability: For high-temperature, dusty, or corrosive environments, select models with enhanced sealing or special materials.
IV. Maintenance and Troubleshooting
1. Routine Maintenance
• Hydraulic Fluid Cleanliness: Regularly replace filters to prevent contaminants from entering the motor.
• Temperature Control: Avoid overheating of hydraulic fluid, which accelerates seal degradation; install coolers if necessary.
• Seal Inspection: Periodically check shaft seals and piping connections for leaks, replacing damaged components promptly.
2. Common Faults
• Insufficient Output Torque: May result from low hydraulic fluid viscosity, internal leakage, or port plate wear.
• Unstable Speed: Investigate pressure fluctuations, air ingress, or internal wear in the motor.
• Abnormal Noise: Could indicate bearing failure, piston seizure, or gear misalignment, requiring disassembly and inspection.
V. Industry Trends and Alternative Solutions
1. Technological Advancements
• Smart Integration: Incorporation of sensors and electronic control modules for real-time monitoring and adaptive adjustment.
• Lightweight Design: Use of high-strength alloys to reduce weight while increasing power density.
• Energy Efficiency: Optimized flow path designs to minimize pressure losses and improve system efficiency.
2. Alternative Models
• If the 103-1022-012 is unavailable, consider other models in the same series (e.g., 103-1042-012) or competitor brands (e.g., Eaton Char-Lynn’s orbit motors). Prioritize comparisons of displacement, pressure ratings, and mounting dimensions.

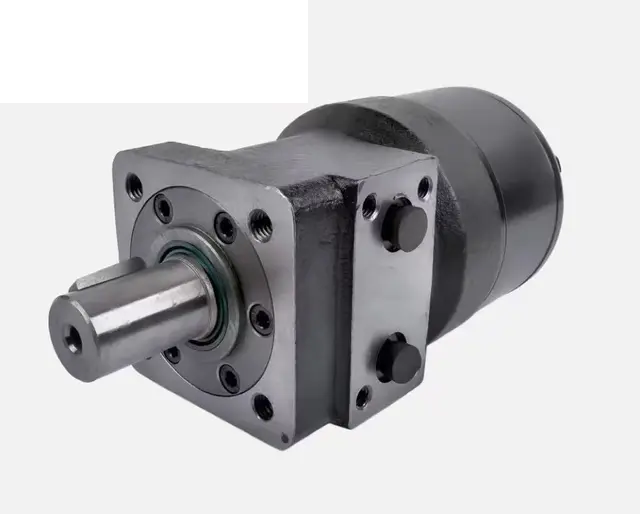

103‑1022‑012 Hydraulic Motor
Model Overview
Brand: Eaton (formerly Char‑Lynn)
Series: S‑Series Low‑Speed High‑Torque Geroler Hydraulic Motor
Model Code Breakdown:
- 103 : Designator for S‑Series motors
- 1022 : Displacement and configuration code, with a displacement of approximately 10.1 in³/r ≈ 165 cm³/r
- 012 : Code for design and seal version
Key Technical Specifications
- Displacement: 165 cm³/r (10.1 in³/r)
- Mounting: 4‑bolt standard flange, pilot diameter 82.5 mm
- Output Shaft: 25.4 mm (1") straight shaft with woodruff key, shaft end thread: .250‑20 UNC
- Ports: 1/2" NPTF dry‑seal pipe thread
- Pressure Rating: Continuous 1850 psi (12.8 MPa), Intermittent 2575 psi (17.8 MPa)
- Torque Output: Continuous approx. 3965 in‑lb (448 Nm)
- Rotational Speed: Max continuous 300 RPM
- Flow Rate: Max continuous 15 GPM (57 L/min)
- Weight: Approx. 8.2 kg
Features & Applications
- Features: Low‑speed high‑torque performance, low starting pressure, high efficiency and smooth operation; high‑pressure resistant shaft seal capable of withstanding high back pressure.
- Applications: Construction machinery such as loaders, excavators, tractors and road rollers, as well as agricultural machinery and industrial drive equipment.
