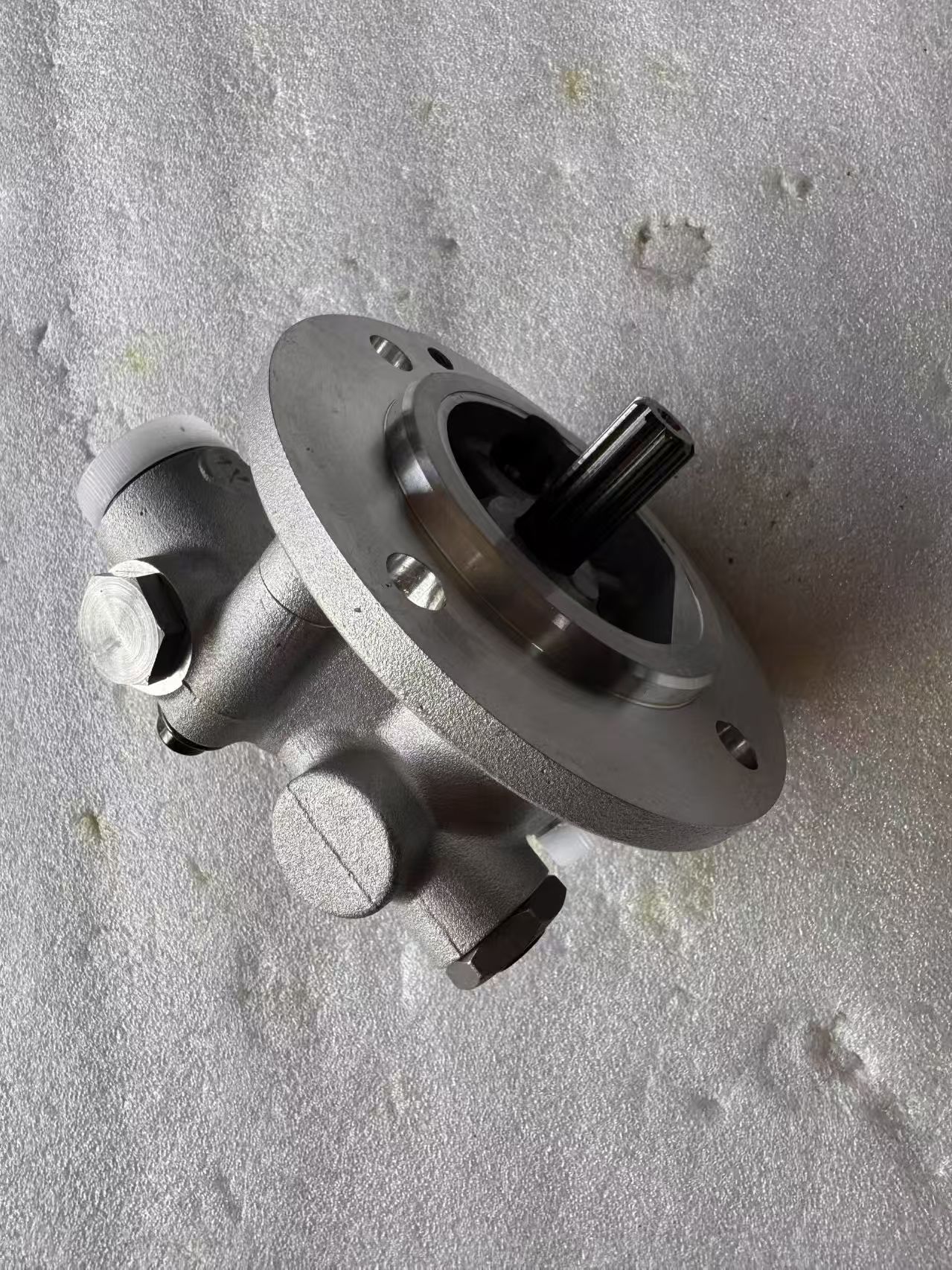

The HPR125 is a Hydraulic gear pump specifically engineered for the Shantui 215 bulldozer, serving as the core pilot oil supply in the pilot circuit. Featuring high-precision alloy steel gear sets, it delivers continuous and stable pilot control pressure to the entire hydraulic system, ensuring precise and responsive operation of the main control valves and actuators.
As the power heart of the pilot control circuit, this Hydraulic gear pump directly determines the machine’s fine inching control quality and compound movement coordination through high volumetric efficiency and excellent smoothness. Its compact mounting interface and reinforced journal bearing design allow it to perform reliably in high-pressure, high-cycle hydraulic system conditions, effectively suppressing pressure pulsation. This significantly enhances the control consistency of the Shantui 215 during fine grading, heavy-duty cutting, and other demanding operations. Whether for OEM installation or aftermarket replacement, the HPR125 integrates seamlessly into the dozer’s existing hydraulic system, ensuring efficient and durable hydraulic drive performance with stable pilot flow.
Analysis of Gear Pilot Pump HPR125 in the Hydraulic System of Shantui 215 Excavator
1. Product Positioning and Core Functions
TheGear Pilot Pump HPR125is a specializedhydraulic gear pumpdesigned for construction machinery, serving as a pilot pump to provide a stable low-pressure oil supply (typically 20–50 bar) to the hydraulic system’s control circuit. In equipment like the Shantui 215 crawler excavator, its key functions include:
• Pilot Control:
• Supplies pressure oil to directional control valves, proportional valves, and other control components to enable precise adjustments of main pump displacement, travel steering, and boom/arm/bucket movements.
• System Lubrication and Cooling:
• Circulates hydraulic fluid to lubricate and cool critical components such as the main pump and motors, extending equipment lifespan.
• Energy-Saving Assistance:
• Collaborates with the main pump during compound operations (e.g., simultaneous digging and swinging) to optimize hydraulic system efficiency and reduce energy consumption.
2. Technical Characteristics and Advantages
TheHPR125 gear pumpadopts a high-precision gear meshing design, offering the following technical benefits:
• High Reliability:
• Integrated gear-and-shaft structure minimizes leakage risks, withstanding harsh operating conditions (e.g., vibration, impact, high temperatures) common in construction machinery.
• Optimized bearing design handles combined radial and axial loads, ensuring a service life exceeding 10,000 hours.
• High Efficiency:
• Volumetric efficiency ≥ 92%, mechanical efficiency ≥ 90%, delivering stable output flow (approx. 125 L/min) at rated speeds (1,800–2,200 rpm).
• Low-pressure loss design reduces energy waste, enhancing overall system efficiency.
• Strong Contamination Resistance:
• Optimized gear clearances tolerate ISO 4406 19/17-grade oil contamination, adapting to field maintenance conditions.
• Modular Design:
• Supports multiple mounting options (e.g., flange, shaft extension) for seamless integration with Shantui 215’s original hydraulic system.
• Optional built-in pressure regulators enable adaptive system pressure control.
3. Integration in the Shantui 215 Hydraulic System
The Shantui 215 excavator employs a closed-loop hydraulic system, where theHPR125 gear pumpacts as the pilot oil source, working in tandem with the main pump (variable displacement piston pump):
• System Principle:
1. The engine drives the HPR125 gear pump, delivering low-pressure oil to the pilot control valve block.
2. Operator inputs (via joysticks or electronic controls) adjust main pump displacement through pilot valves, controlling movement speed.
3. High-pressure oil from the main pump drives hydraulic motors or cylinders to perform digging, swinging, and other actions.
• Performance Matching:
• The HPR125’s flow and pressure characteristics align perfectly with Shantui 215’s load-sensing (LS) system, ensuring proportional flow distribution during compound operations and avoiding power waste.
• Low-noise design (≤ 75 dB) meets environmental standards for construction machinery, improving operator comfort.
4. Selection and Maintenance Recommendations
• Selection Criteria:
• Confirm system pressure rating (Shantui 215 pilot systems typically operate at 35–40 bar) and select the appropriate HPR125 model (e.g., HPR125-35).
• Prioritize genuine or authorized supplier products to ensure compliance with gear material (e.g., 20CrMnTi) and heat treatment (carburizing and quenching) standards.
• Maintenance Guidelines:
• Replace hydraulic fluid regularly (every 2,000 hours or as per equipment manuals) with filtration precision ≥ 10 μm.
• Monitor pump temperature (normal operating range ≤ 80°C); abnormal heating may indicate bearing wear or oil contamination.
• Avoid prolonged idle operation to prevent gear dry running and damage.
5. Industry Applications and Case Studies
TheHPR125 gear pumpis widely used in:
• Construction Machinery: Excavators (e.g., Shantui 215, Caterpillar 320), loaders, road rollers.
• Agricultural Machinery: Combine harvesters, tractors.
• Industrial Equipment: Injection molding machines, die-casting machines, marine steering gears.
Case Study: A mining company using Shantui 215 excavators equipped with HPR125 gear pumps reported a 40% reduction in pilot system failures under continuous high-load operations (18 hours/day). Hydraulic fluid replacement intervals extended to 2,500 hours, saving approximately¥120,000in annual maintenance costs.
