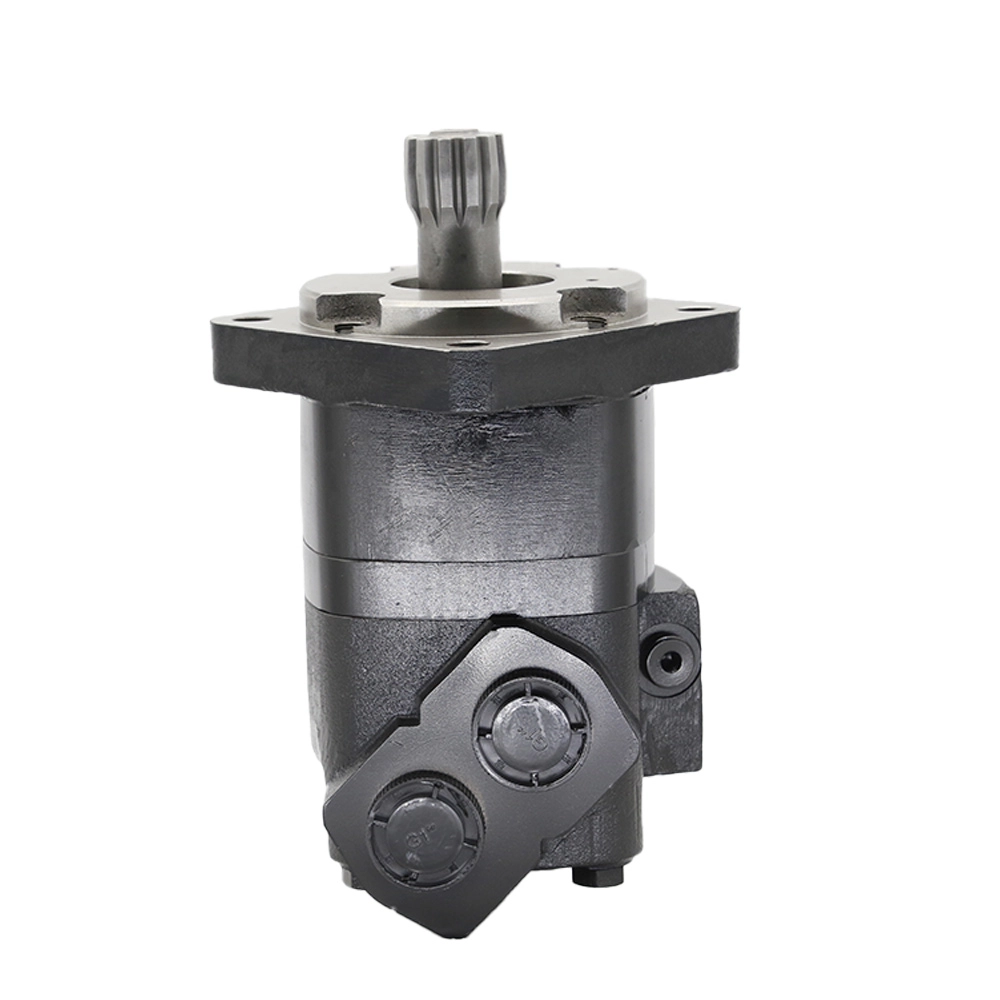

The BM5S is a shaft-distribution hydraulic motor designed based on the internal meshing cycloidal gerotor principle. As a classic Hydraulic orbit motor, it drives the rotor-stator pair to rotate using high-pressure oil, directly converting hydraulic force into continuous torque at the output shaft without the need for an additional gear reduction unit. In a compact hydraulic system, the BM5S is often used to achieve stable rotary drive, combining high torque at low speeds with excellent start-up characteristics.
Inside this Hydraulic orbit motor are a stator, a cycloidal rotor, a shaft-distribution valve, and an output shaft. When pressure oil enters the distribution passages of the hydraulic system, the shaft-distribution valve alternately directs oil to the rotor, forcing the rotor to perform a planetary motion within the stator. A drive link then converts this orbital motion into uniform rotation at the shaft end. Because the rotor and stator form continuously sealed volume chambers, the motor can deliver smooth torque even at extremely low speeds, enabling the entire hydraulic system to execute movements with exceptional smoothness.
· Displacement Range: Generally covers multiple sizes from 50 to 400 mL/rev, facilitating adaptation to different hydraulic system flow rates.
· Maximum Pressure: Continuous operating pressure can reach 14–18 MPa, with peak values higher, meeting the demands of medium and high-pressure hydraulic systems.
· Speed Range: Rated speed is typically 10–200 rpm; some applications allow ultra-low speed operation at 5 rpm, fully utilizing the low-speed smoothness of the Hydraulic orbit motor.
· Output Torque: Varies linearly with displacement and pressure differential; typical values can reach several hundred N·m.
· Compact Size, High Power Density: Compared to a gear motor of equivalent torque, this Hydraulic orbit motor is lighter in weight, making it easy to integrate into hydraulic systems with limited installation space.
· Dust and Shock Resistance: The rotor and stator are hardened, and the shaft-distribution surfaces fit well together, tolerating a certain degree of contamination within the system and extending the trouble-free operation period of the hydraulic system.
· Capable of Series or Parallel Operation: Multiple BM5S Hydraulic orbit motors can be supplied within the same hydraulic system for synchronized operation, enabling multi-wheel drive or synchronized extension/retraction actions with straightforward flow distribution.
Thanks to its low-speed stability and maintenance-free capability, the BM5S series Hydraulic orbit motor is widely integrated into various mobile and industrial hydraulic systems, for example:
· Marine and fishery: net reel winding, winches, etc.
During selection, the displacement should be determined based on the system flow rate and required torque, while ensuring that the return-line back pressure is properly controlled to realize the best efficiency of this Hydraulic orbit motor. If necessary, a counterbalance valve or relief valve can be integrated near the motor to protect the entire hydraulic system from overload shocks.
BM5S Cycloidal Motor: A Low-Speed, High-Torque Hydraulic Actuation Core
The BM5S cycloidal motor is a low-speed, high-torque hydraulic motor based on the cycloidal gear meshing principle. Its core structure consists of an internal gear ring (stator) and an external gear (rotor), with the rotor's center offset to form sealed tooth chambers. Hydraulic oil drives the rotor in a planetary motion, which is then converted into torque output via a spline shaft, achieving the conversion of hydraulic energy into mechanical energy.
Technical Characteristics
1. High Power Density and Low-Speed Stability
• Displacement ranges from 50–1,250 mL/r, supporting load starting and reversible rotation. The minimum stable speed can reach a few RPM, with mechanical efficiency exceeding 85%.
• The offset center design creates large working chambers, enabling high- and low-pressure oil chambers without isolation components. This results in a compact structure, small size, and light weight, with significantly higher power density than traditional gear motors.
2. High-Pressure Resistance and Long Lifespan
• Manufactured from high-strength alloy materials, the gears can withstand system pressures up to 35 MPa, making them suitable for high-pressure applications.
• Rolling bearings or hydrostatic sliding bearings reduce friction, extending service life to over 10,000 hours and lowering maintenance costs.
3. Strong Contamination Resistance
• The large tooth chambers have lower sensitivity to hydraulic oil cleanliness, allowing operation in environments with higher impurity levels and reducing failures caused by oil contamination.
Applications in Hydraulic Systems
1. Construction Machinery
• Used in the slewing mechanisms of excavators and loaders, providing stable low-speed rotation torque for precise angular adjustments.
• Example: After adopting the BM5S motor in an excavator’s slewing system, starting time was reduced by 30%, and energy consumption decreased by 15%.
2. Mining Machinery
• Drives crushers and conveyors, withstanding heavy-load impacts for continuous and stable operation.
• Case Study: A BM5S motor integrated into an iron ore crusher’s hydraulic system reduced failure rates by 40% and annual maintenance costs by RMB 200,000.
3. Industrial Equipment
• Applied in mold opening/closing mechanisms of injection molding and die-casting machines, offering high-precision position control.
• Data: A manufacturer using the BM5S motor improved mold positioning accuracy to ±0.05 mm and increased product pass rates by 12%.
Hydraulic Orbit Motor: An Efficient and Compact Hydraulic Power Source
The hydraulic orbit motor (also known as an orbital motor or cycloidal rotor motor) is another hydraulic actuator based on cycloidal gear principles. It emphasizes high-speed operation and lightweight design, making it ideal for hydraulic systems requiring rapid response.
Technical Characteristics
1. High-Speed Operation and Low Noise
• Speed ranges from 500–3,000 RPM, with smooth operation and noise levels below 75 dB, suitable for noise-sensitive environments.
• Example: An agricultural machinery manufacturer reduced user complaints by 25% after adopting orbital motors due to improved operational comfort.
2. Compact Size and Light Weight
• 40% smaller and 30% lighter than equivalent gear motors, facilitating integration into space-constrained hydraulic systems.
• Case Study: A UAV hydraulic landing gear system using orbital motors reduced overall weight by 1.2 kg, extending flight time by 8%.
3. High Volumetric Efficiency
• Volumetric efficiency exceeds 92%, minimizing energy loss and enhancing system efficiency.
• Data: A hydraulic test platform comparison showed that orbital motor systems consumed 18% less energy than traditional gear motor systems.
Applications in Hydraulic Systems
1. Aerospace
• Powers aircraft landing gear retraction/extension and control surface actuation, providing highly reliable power output.
• Example: An airliner’s landing gear hydraulic system achieved retraction times under 3 seconds using orbital motors, meeting airworthiness standards.
2. Automation Equipment
• Drives robot joints and CNC machine tool feed mechanisms for high-precision motion control.
• Case Study: An industrial robot manufacturer improved joint positioning accuracy to ±0.02 mm and reduced cycle times by 15% with orbital motors.
3. Renewable Energy
• Used in wind turbine pitch systems and solar tracking brackets for long-term operation in harsh environments.
• Data: A wind farm’s pitch system reduced annual failures from 5 to 1 and improved power generation efficiency by 3% after adopting orbital motors.
Comparative Analysis: BM5S Motor vs. Hydraulic Orbit Motor
【表格】
Characteristic BM5S Cycloidal Motor Hydraulic Orbit Motor
Speed Range Low-speed (RPM to hundreds of RPM) High-speed (500–3,000 RPM)
Torque Output High torque (up to thousands of Nm) Medium torque (hundreds of Nm)
Size/Weight Larger, heavier Compact, lightweight
Typical Applications Heavy-duty, low-speed (mining, construction) High-speed, light-duty (aerospace, automation)
Efficiency Mechanical efficiency >85%, volumetric efficiency >90% Volumetric efficiency >92%, slightly higher overall efficiency
Contamination Resistance Strong (large tooth chambers) Weaker (requires clean oil)
Synergistic Applications in Hydraulic Systems
BM5S motors and hydraulic orbit motors can complement each other in complex hydraulic systems, such as:
1. Excavator Hydraulic Systems
• The slewing mechanism uses a BM5S motor for low-speed, high-torque stability.
• The travel mechanism employs an orbital motor for high-speed mobility, improving operational efficiency.
2. Injection Molding Machine Hydraulic Systems
• The mold opening/closing mechanism uses a BM5S motor for high-precision position control.
• The ejection mechanism uses an orbital motor for rapid ejection, shortening cycle times.
3. Wind Turbine Pitch Systems
• The main drive uses a BM5S motor to withstand wind load impacts.
• Auxiliary adjustments use an orbital motor for fine-tuning, enhancing power generation efficiency.
