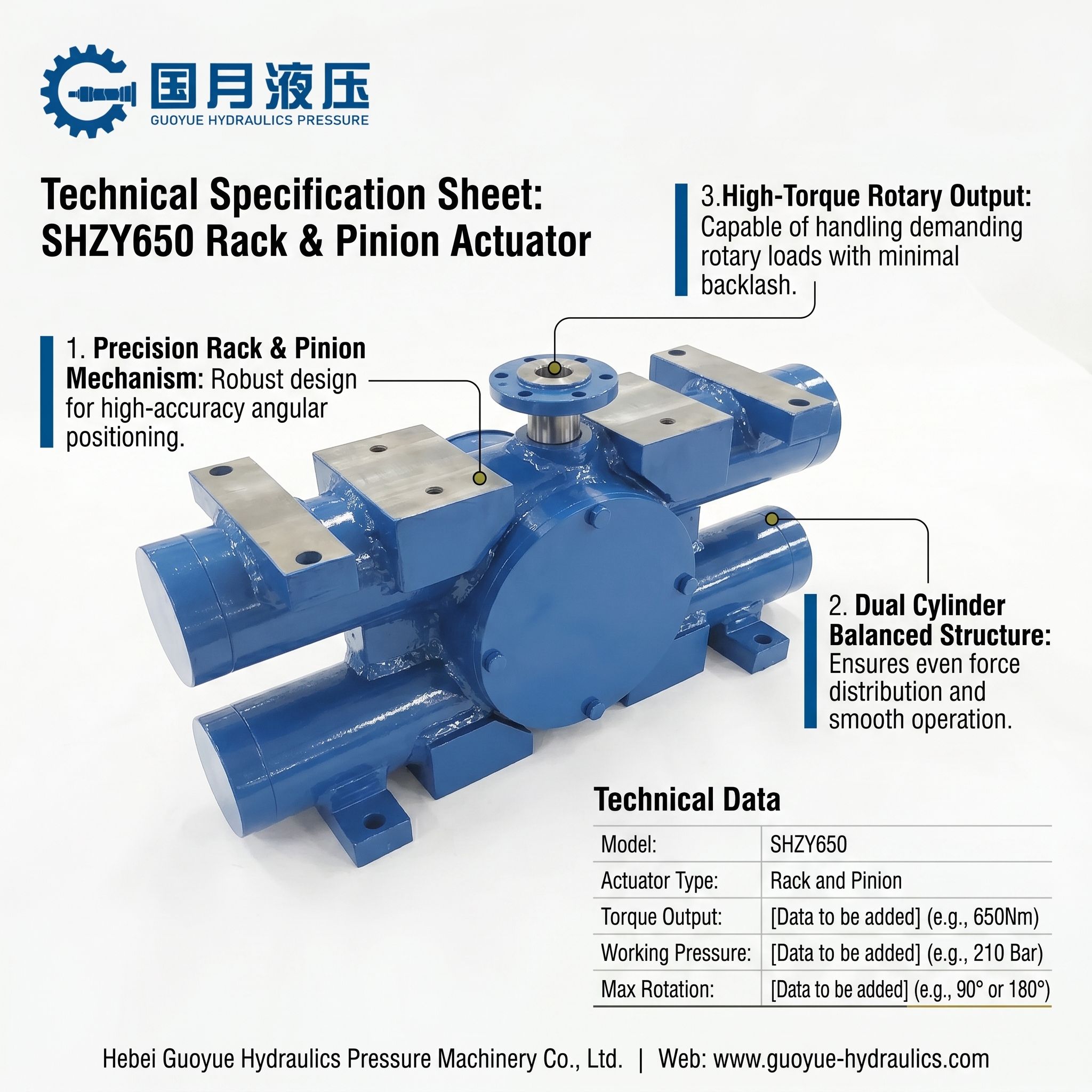

Mechanical Design: Utilizes a precision-machined rack and pinion mechanism to convert linear piston motion into high-torque rotary output.
Torque Capability: Designed for heavy-duty applications requiring stable and powerful rotational force.
Standard Operating Pressure: Nominal pressure 16 MPa (160 Bar); Static test pressure up to 21 MPa.
Rotation Control: Available in standard rotation angles of 90°, 180°, or 360°, with optional stroke adjustment for precise angle limit control.
Balanced Force Structure: Features a symmetrical dual-cylinder or multi-rack design to minimize internal friction and balance axial loads.
Material & Durability: Housing is constructed from high-strength ductile iron or forged steel; the rack and pinion are induction hardened for maximum wear resistance.
Sealing System: High-pressure industrial seals combined with low-friction wear rings ensure zero internal leakage and smooth low-speed operation.
Application: Ideal for metallurgical ladle turning, shipyard deck cranes, large valve automation, and construction machinery steering.
| Item | Specifications |
| Model | SHZY650 |
| Type | Rack & Pinion Rotary Actuator |
| Rated Pressure | 16 MPa (160 Bar) |
| Max Pressure | 21 MPa (210 Bar) |
| Rotation Angle | 90째 / 180째 / 360째 (Customizable) |
| Theoretical Torque | High Output (Calculated by Bore & Ratio) |
| Housing Material | High-Strength Ductile Iron / Steel |
| Pinion/Rack Hardness | HRC 50-55 (Induction Hardened) |
| Operating Temp | -20째C to +80째C |
| Mounting Position | Any Position (Universal Mounting) |
