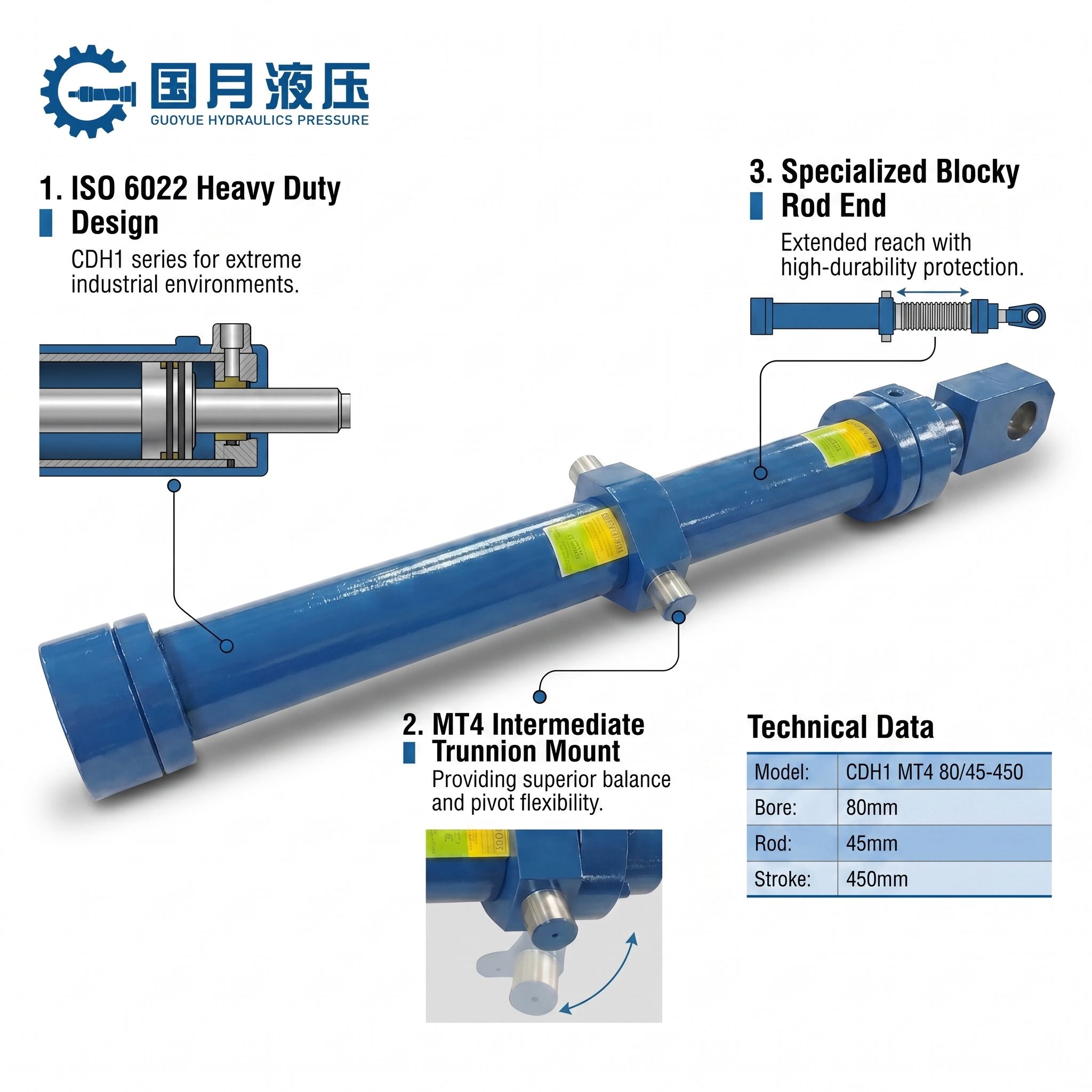

CDH1 MT4 80/45-450 Hydraulic Cylinder

2 month ago

2 0

Guoyue Hydraulic Equipment Manufacturing (jiangsu) Co., Ltd.

 2 year year

Product details

Specification: Heavy Duty Mill Cylinder / CDH1 MT4 / ISO 6022 / Trunnion Mount / Industrial Hydraulic

CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder

Standard Compliance: Manufactured strictly according to ISO 6022 / DIN 24333 standards. Designed for high-frequency, heavy-duty industrial cycles.

Pressure Rating: Nominal working pressure 250 Bar (25 MPa); Maximum static test pressure 375 Bar.

Dimensions: Bore 80mm / Rod 45mm / Stroke 450mm.

Mounting Style: MT4 Intermediate Trunnion provides superior load balancing and pivot flexibility, minimizing internal friction caused by misalignment.

Heavy-Duty Build: Bolted head and flange construction ensure high shock resistance and facilitate easy on-site maintenance in mill environments.

Rod Quality: C45 steel piston rod, induction hardened and hard chrome plated (30-50μm, Ra ≤ 0.4μm) for peak wear resistance.

Interchangeability: Fully interchangeable with Rexroth CDH1, Parker, and Eaton mill-type series in all dimensions.

Sealing System: Equipped with high-pressure composite seals (NBR/Viton) to ensure zero internal leakage under peak loads.

Item	Specifications
Model	CDH1 MT4 80/45-450
Series	CDH1 Mill Type Heavy Duty
Standard	ISO 6022 / DIN 24333
Bore Size	80 mm
Rod Size	45 mm
Stroke	450 mm
Mounting Style	MT4 (Intermediate Trunnion Mounting)
Nominal Pressure	250 Bar (25 MPa)
Piston Rod	Hard Chrome Plated (HRC 55-60)
Sealing System	High-Pressure Multi-lip System
