DIN 41612 M TYPE-Flat Femde 24+8P 180 CIP

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

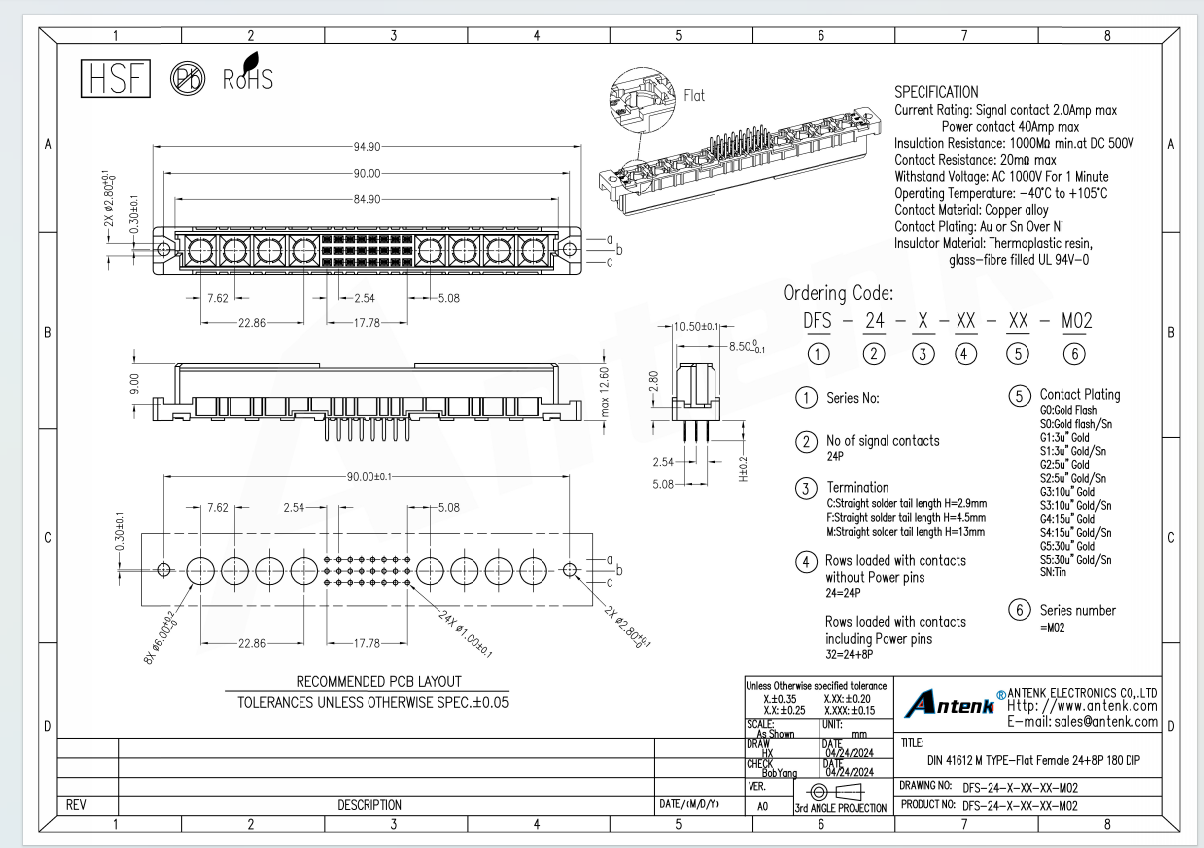

Our DIN 41612 M Type Flat Female 24+8P 180 DIP connector is engineered to deliver stable signal and power transmission for diverse industrial electronic connection scenarios. This connector adopts a 24 signal contact plus 8 power pin integrated layout with a rated signal current of 2.0 Amp and maximum power contact current of 40 Amp, supporting up to DC 500V insulation resistance with a minimum value of 1000MΩ and 1000V AC one-minute withstand voltage capacity. Manufactured with copper alloy contacts and thermoplastic glass filled UL94 V 0 insulation housing, it works reliably within a wide operating temperature range from minus 40 degrees Celsius to 105 degrees Celsius. Designed for 180-degree through hole PCB soldering installation, it can be directly mounted onto printed circuit boards following our standardized recommended PCB layout specifications, which effectively guarantees assembly precision and connection stability during manual or automated soldering processes. Before installation, users need to confirm the soldering tail specification and contact plating type match the application requirement, avoid overheating during soldering to prevent insulator deformation, and keep the connector contact surface clean to lower contact resistance which is controlled within 20 milliohm for stable signal delivery.

Manufactured by Antenk Electronics, this connector stands out from peer competitors relying on our complete vertical industrial chain and strict quality control system. Our production covers full processes including independent mold development, precision terminal stamping, plastic injection molding, automatic connector assembly and professional laboratory performance testing. Equipped with Taiwan high speed precision stamping machines, imported mold processing equipment and Japanese precision plastic injection machines, we own more than 250 sets of plastic connector molds and 180 sets of precision terminal molds, enabling customized pin count, soldering tail length and contact surface gold plating solutions for global clients. Our factory holds ISO9001, ISO14001 and IATF16949 automotive grade quality certifications, all products comply with RoHS and REACH environmental standards with most items certified by UL, which greatly reduces customer’s product compliance risk compared with small scale manufacturers without complete certification systems. We operate a 10000 square meter production base with 250 plus professional staff, supporting bulk order delivery and flexible OEM customization services.

This industrial heavy duty connector is widely applied in liquid crystal display equipment, digital cameras, industrial control devices, smart home appliances, computer peripheral equipment, automotive electronics, precision instruments and communication network facilities. It serves as a reliable connection bridge between circuit boards for signal collection and high current power supply transmission, widely used by electronic manufacturers across Asia, Europe, North America and Southeast Asia. As the holder of Guangdong Famous Trademark Antenk, we strictly implement full process quality inspection from raw material incoming test to finished product aging testing in our professional laboratory with over 20 testing devices. Over 70 percent of our connector products are exported worldwide, our mature overseas service experience can provide professional technical parameter guidance, PCB layout suggestion and after sales technical support for global buyers to ensure smooth product application in various complex working environments.
