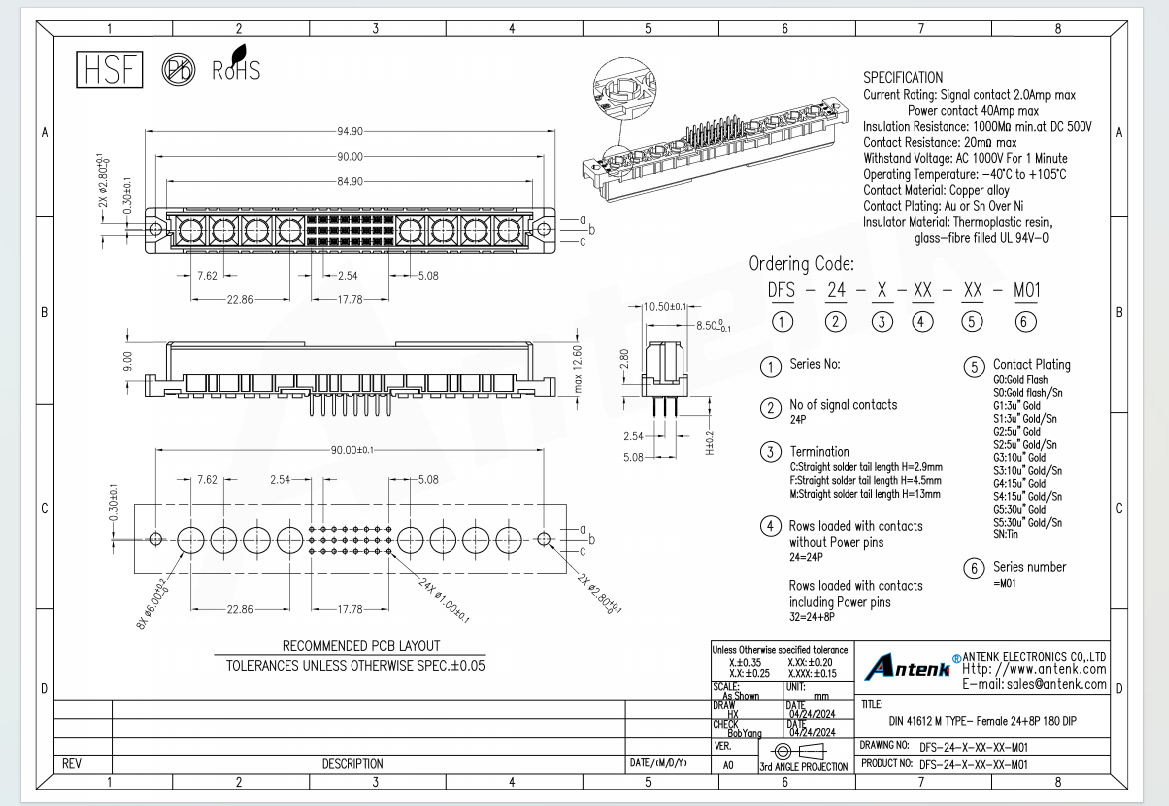

Antenk’s DIN 41612 M Type Female 24+8P 180 DIP connector is designed to achieve stable signal transmission and high power supply connection in industrial electronic systems. This connector adopts a 24 signal contact and 8 power pin integrated structure, with each signal contact supporting a maximum current of 2.0 Amp and each power contact rated up to 40 Amp. It delivers excellent electrical performance including minimum 1000MΩ insulation resistance under 500V DC, maximum 20 milliohm contact resistance and 1000V AC one minute withstand voltage capacity, operating steadily within the temperature range from minus 40 degrees Celsius to 105 degrees Celsius. The copper alloy contacts can be customized with gold or tin over nickel plating to fit different anti corrosion and conduction demands, while the glass fibre filled UL94 V 0 thermoplastic resin insulator guarantees flame retardancy and structural stability. Users need to mount this component onto PCB via 180 degree through hole soldering following the official recommended PCB layout, selecting appropriate solder tail lengths during procurement. Operators should avoid excessive soldering temperature to prevent plastic shell deformation and keep contact surfaces clean to maintain stable electrical performance. This versatile connector can be widely used in industrial control equipment, automotive electronics, liquid crystal display devices, digital home appliances, communication facilities and precision testing instruments.
Benefiting from our complete vertical production chain, Antenk holds obvious competitive advantages over small scale connector manufacturers. Our whole production workflow covers independent mould development, precision terminal stamping, plastic injection moulding, automatic connector assembly and professional laboratory performance testing. We operate a 10000 square meter production base with 250 experienced employees, equipped with Taiwan high speed precision stamping machines, Japanese precision plastic injection equipment and over 20 sets of professional testing instruments. Owning more than 250 plastic connector moulds and 180 precision terminal moulds, we support flexible customization on pin arrangement, solder tail dimension and contact plating thickness. All our products comply with RoHS and REACH environmental regulations, most items are certified by UL, and our factory has passed ISO9001 ISO14001 and IATF16949 automotive grade quality management certifications, effectively helping global clients simplify product compliance verification and reduce market access risks. As a general tax payer enterprise with independent import and export rights, we can issue 13 percent VAT invoices and deliver bulk orders smoothly to worldwide markets, with over 70 percent of our products exported globally.
As a core industrial connector product of Antenk the Guangdong Famous Trademark brand, this DIN series connector serves as a reliable connection medium between circuit boards for signal collection and high current power delivery. It has gained wide recognition among electronics manufacturers across domestic major cities and overseas regions including Europe Southeast Asia North America and Oceania. Before installation users must confirm plating specification current load and operating temperature match actual application scenarios to extend service life. Supported by our professional engineering and quality assurance teams we provide clients with detailed dimension drawings PCB layout guidance and after sales technical support. We can supply more than 10000 types of connector specifications to meet diversified customization needs, strictly conducting full range incoming process and finished product inspections to eliminate defective goods, which helps our partners achieve stable product performance and long term market competitiveness in various complex industrial application environments.
