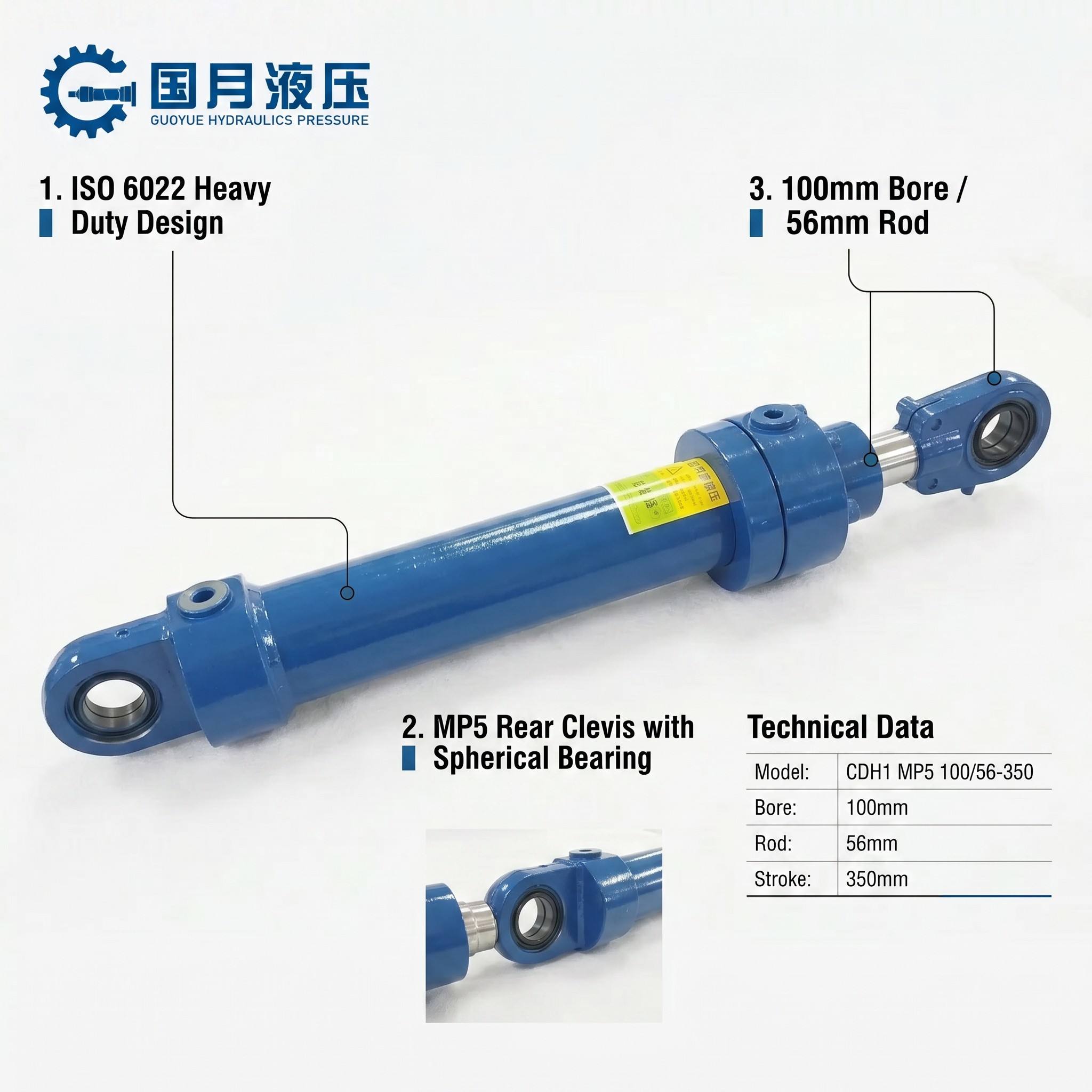

Specification: Heavy Duty Mill Cylinder / CDH1 MP5 / ISO 6022 / 250 Bar Industrial Actuator
CD Series Cylinder, Differential Mill Cylinder, Round Body Cylinder, Bolted Cylinder, Fast Speed Cylinder
Standard Compliance: Manufactured strictly to ISO 6022 / DIN 24333 standards. Designed for high-frequency industrial duty cycles.
Core Specifications: Bore 100mm / Rod 56mm / Stroke 350mm.
Pressure Rating: Nominal working pressure 250 Bar (25 MPa); Static test pressure up to 375 Bar.
Mounting Style: MP5 Rear Clevis with integrated self-aligning spherical bearings to eliminate side-loading and extend seal life.
Construction: Robust bolted flange head design for maximum impact resistance and simplified field maintenance in mill environments.
Piston Rod: Induction-hardened C45 steel rod, hard chrome plated (30-50μm, Ra ≤ 0.4μm) for superior protection against wear and corrosion.
Sealing System: High-performance multi-lip NBR/Viton composite seals designed for reliability in foundries, steel mills, and mining machinery.
Interchangeability: Guaranteed 100% dimensions interchangeability with international premium brands like Rexroth CDH1 series.| Item | Specifications |
| Model | CDH1 MP5 100/56-350 |
| Series | CDH1 Heavy Duty Mill Type |
| Standard | ISO 6022 / DIN 24333 |
| Bore Size | 100 mm |
| Rod Size | 56 mm |
| Stroke | 350 mm |
| Mounting Style | MP5 (Rear Clevis with Spherical Bearing) |
| Nominal Pressure | 250 Bar (25 MPa) |
| Piston Rod | Hard Chrome Plated (Induction Hardened) |
| Operating Temp | -20°C to +80°C |
