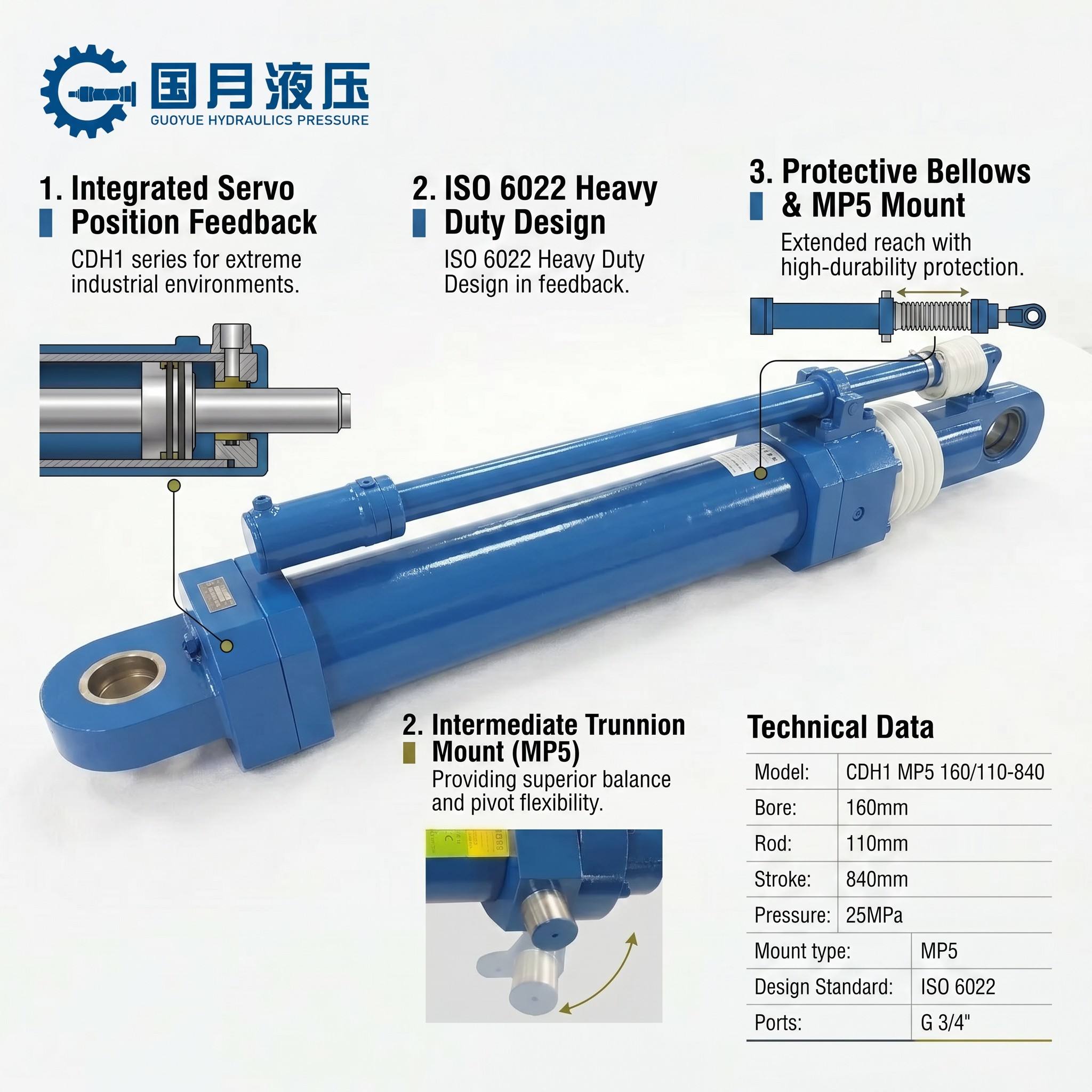

CS Series Hydraulic Cylinder, Mill Type with Position System, Sensing Round Cylinder, Linear Feedback Cylinder, Smart Mill Cylinder
Standard Compliance: Manufactured to ISO 6022 and DIN 24333 standards. Specifically engineered for high-precision servo-hydraulic applications in heavy industry.
Precision Control: Equipped with an Integrated External Displacement Transducer (Position Sensor) assembly, providing real-time high-accuracy position feedback for closed-loop control.
Core Specifications: Bore 160mm / Rod 110mm / Stroke 840mm.
Pressure Rating: Nominal pressure 250 Bar (25 MPa); Static test pressure 375 Bar.
Mounting Style: MP5 Rear Clevis with spherical bearings to accommodate angular misalignment and ensure smooth linear motion.
Environment Protection: Includes high-durability Protective Bellows (Rod Boot) to shield the hard chrome-plated rod from abrasive dust and heat in smelting/foundry settings.
Rod Quality: C45 steel rod, induction hardened and hard chrome plated (30-50μm, Ra ≤ 0.4μm) to maximize service life under high-frequency operation.
Interchangeability: 100% dimensions interchangeability with Rexroth CDH1/CGH1 servo series.
| Item | Specifications |
| Model | CDH1 MP5 160/110-840 (Servo) |
| Series | CDH1 Heavy Duty Mill Type |
| Standard | ISO 6022 / DIN 24333 |
| Bore Size | 160 mm |
| Rod Size | 110 mm |
| Stroke | 840 mm |
| Mounting Style | MP5 (Rear Clevis with Spherical Bearing) |
| Sensor Type | External Linear Displacement Transducer |
| Protection | High-Temp Resistant Bellows (Rod Boot) |
| Nominal Pressure | 250 Bar (25 MPa) |
| Operating Temp | -20°C to +80°C |
