2.54mm Pitch Dual Row Right Angle Brass Pin Header

3 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

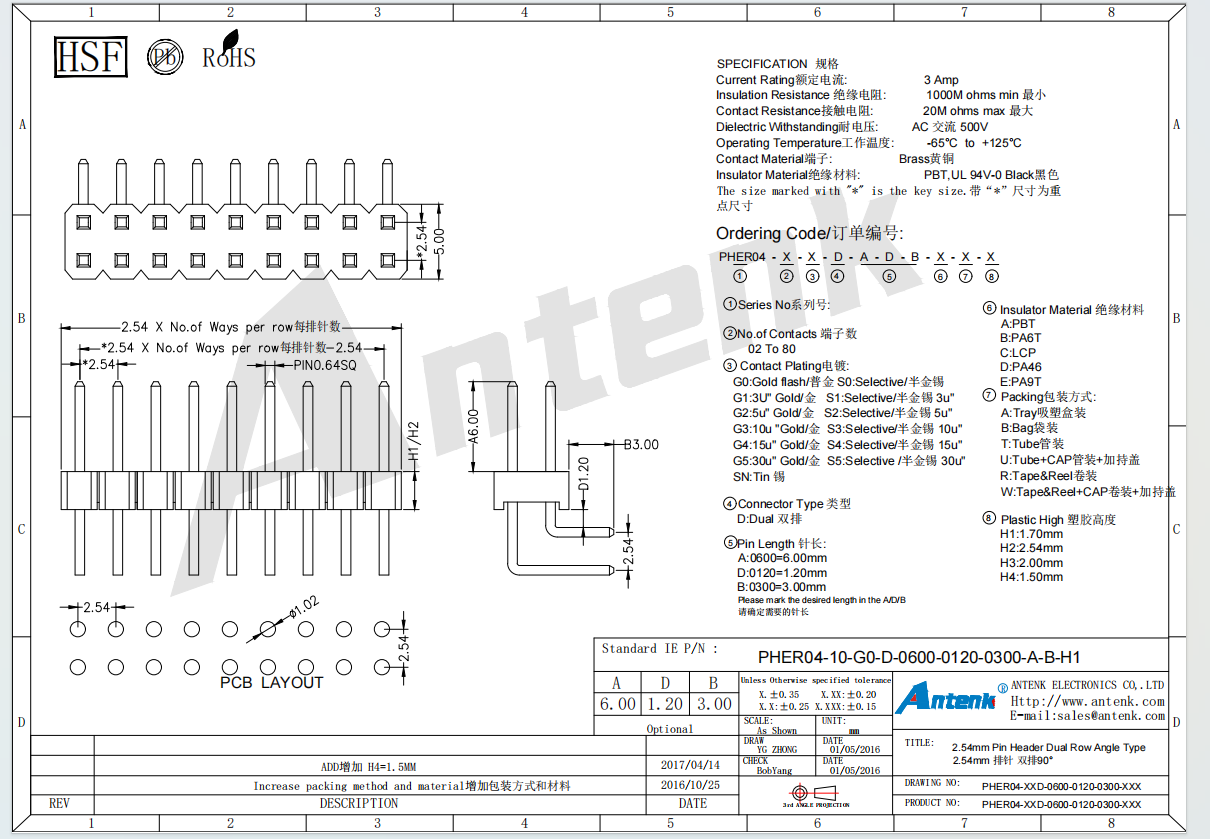

Our 2.54mm Dual Row Right Angle Pin Header is a reliable wire-to-board connecting component engineered to deliver stable electrical transmission between printed circuit boards and wiring harnesses. Designed with a standard 2.54mm pitch, this right angle pin header supports pin counts ranging from 2 to 80 pins to match diverse circuit layout demands. The product features brass contact terminals and black PBT UL94V-0 insulating housing, with insulation resistance reaching a minimum of 1000M ohms, maximum contact resistance of 20M ohms, and a 500V AC dielectric withstand voltage under 3A rated current. It works steadily within a wide operating temperature range from -65℃ to 125℃. Installed via through-hole soldering on PCB boards following the standard PCB layout provided, this pin header ensures firm mechanical locking and stable signal conduction. Users must strictly avoid overloading the rated current and voltage during application, and keep the product away from high temperature, corrosive and humid environments to prevent insulation aging and terminal oxidation.

Manufactured by Antenk, our pin header stands out from peer products with strong manufacturing and quality advantages. Founded in 2007, our firm operates two production bases with over 10,000 square meters of factory space and 250 professional staff. Equipped with Taiwan high-speed precision stamping machines, imported mold processing equipment, precision plastic injection molding machines and automatic assembly equipment, we own more than 250 plastic molds and 180 precision terminal molds, enabling customized development for diverse pin length, plating, packaging and insulator height requirements. All items comply with RoHS and REACH environmental standards, most obtain UL certification, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive quality system certifications. Over 70 percent of our products are exported globally, and our self-owned brand Antenk is recognized as Guangdong Famous Trademark, guaranteeing stable batch quality and professional technical after-sales support unavailable from many small-scale manufacturers.

The complete production process of this pin header covers precision mold design and fabrication, brass terminal stamping, surface electroplating treatment, PBT plastic injection molding, manual and automatic assembly, strict laboratory performance testing and standardized packaging. Widely applied in liquid crystal displays, digital cameras, industrial control equipment, digital home appliances, communication devices, automotive electronics, precision instruments and computer peripheral products, our pin header serves electronic markets across China, Southeast Asia, Europe, North America and other regions. We provide flexible packaging options including tray, bag, tube and tape-and-reel packaging, alongside customizable gold or tin plating solutions, to fully satisfy prototype trial production and mass automated assembly demands for global electronic manufacturers.
