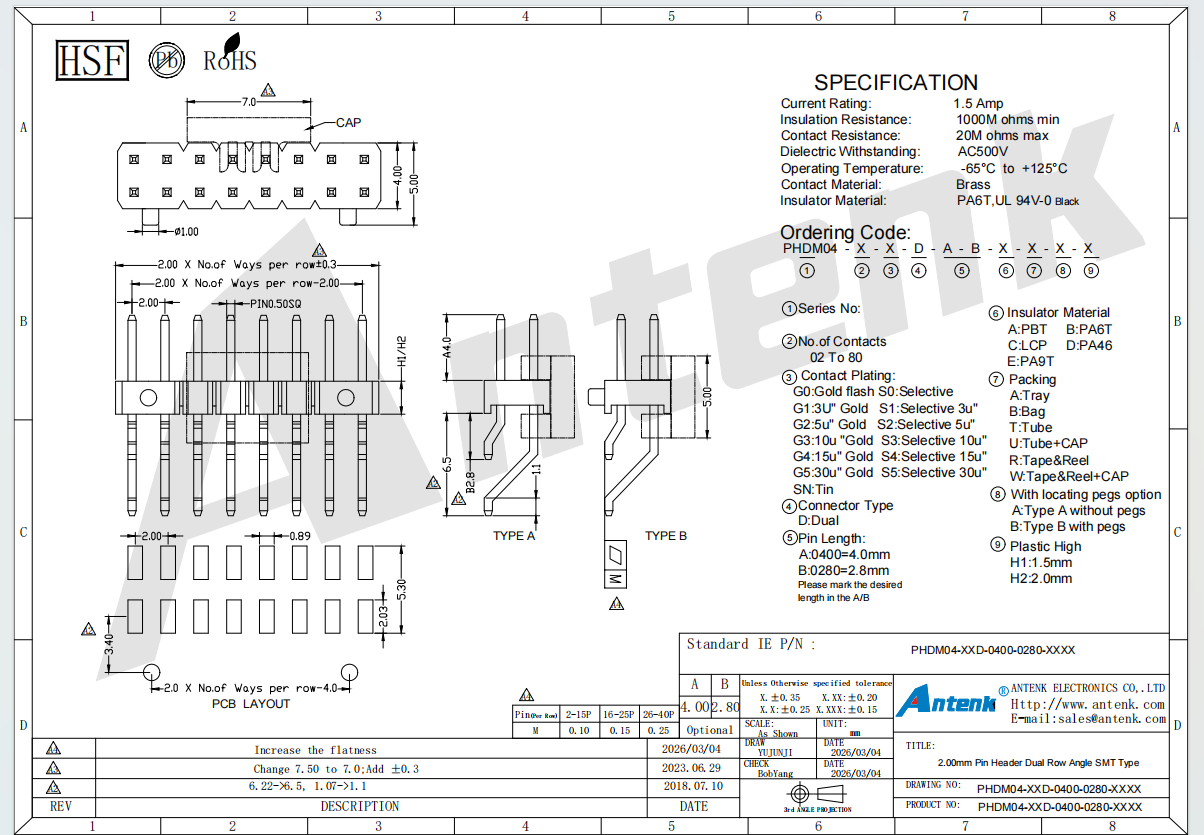

Developed and produced by Antenk, the 2.00mm Dual Row Right Angle SMT Pin Header acts as a core wire to board connecting component to ensure stable power supply and continuous signal transmission between printed circuit boards and wiring harness assemblies. This pin header adopts a standard 2.00mm pitch dual row design, supporting customizable contact quantities ranging from 2 to 80 pins, and provides two structural options with or without positioning pegs to fit precise SMT soldering requirements. It selects brass as conductive terminal material and black PA6T UL94V 0 flame retardant plastic as the insulator material, with a rated current of 1.5 Amp, minimum insulation resistance of 1000M ohms, maximum contact resistance of 20M ohms and 500V AC dielectric withstand voltage. The product can work reliably under an operating temperature ranging from minus 65 degrees Celsius to 125 degrees Celsius. It needs to be mounted on PCB through surface mount technology following the official PCB layout specification to achieve accurate positioning and stable welding connection. Operators should never exceed the rated current and voltage during application, avoid long term placement in high temperature humid or corrosive environments, and regularly check solder joints to prevent terminal oxidation and plastic insulation aging which may cause poor contact or circuit failure.
Antenk possesses prominent competitive edges over most small and medium sized connector manufacturers relying on complete industrial chain layout, mature technical accumulation and strict global quality management system. Founded in 2007, our company operates two large production bases covering over 10000 square meters with more than 250 experienced professional employees. We are equipped with Taiwan high speed precision stamping machines, imported precision mold processing equipment, high precision plastic injection molding machines and fully automatic product assembly equipment, owning more than 250 sets of plastic connector molds and 180 sets of precision brass terminal molds to realize personalized customization on pin length, plating type, insulator height, packaging mode and structural design. All our products comply with RoHS and REACH environmental regulations, most items are certified by UL safety standard. Our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality system certifications, and our independent brand Antenk has won the honor of Guangdong Famous Trademark. More than 70 percent of our products are exported to global markets, allowing us to offer stable mass delivery capacity, one stop technical service and flexible custom solutions that many competitors cannot provide.
The complete production process of this right angle SMT pin header includes precision mold research and manufacturing, brass terminal stamping forming, diversified gold or tin electroplating surface treatment, high temperature resistant PA6T plastic injection molding, automatic product assembly, strict laboratory electrical and environmental performance testing and diversified standardized packaging. Customers can choose tray, bag, tube, tape and reel as well as packaging with protective caps to adapt to small batch sample trial and large scale automated SMT production. This connector is widely applied in liquid crystal displays, digital cameras, industrial control equipment, communication devices, digital household appliances, automotive electronics, precision measuring instruments, computer peripheral equipment and electronic toys. Our products are distributed in major domestic electronic industrial cities and dozens of overseas regions across Europe, North America, Southeast Asia and South America, winning consistent recognition and long term trust from global electronic industry clients.
