Anti-static PVC, also known as anti-static polyvinyl chloride sheet, is an anti-static material based on PVC that is modified through surface coating or the addition of conductive agents. It features a surface resistance range of 10⁶–10⁸ Ω, offers properties such as corrosion resistance, flame retardancy, and wear resistance, and boasts a light transmission rate exceeding 73%. It is suitable for industrial environments requiring anti-static capabilities, such as cleanrooms and semiconductor clean workshops.
The material is available in several series—including standard anti-static, FM4910-certified, and ultra-impact-resistant—and comes in various colors, such as transparent and ivory. Certain products utilize a continuous pressing process to enhance impact resistance; the FM series complies with fire safety standards and offers self-extinguishing properties, meeting the specific requirements of the semiconductor industry. Additionally, the material holds UL94 V-0 flame retardancy certification, and its permanent conductive structure allows for the rapid dissipation of static electricity, thereby preventing safety hazards caused by static buildup.
Anti-static PVC sheet achieves a UL 94 V-0 flame retardancy rating and offers resistance to weak acids and chemical corrosion.
A series of antistatic PVC-U composites were prepared using carbon black or graphite as conductive fillers [4]. Antistatic PVC is a material based on polyvinyl chloride (PVC) that has been modified through surface coating or the addition of conductive agents.
Depending on the type of conductive filler used, antistatic PVC materials can be classified into composites incorporating various fillers, such as carbon black or graphite [4]. These materials are available in several product lines—including standard antistatic, FM4910-certified, and ultra-impact-resistant series—and come in a range of colors, such as transparent and ivory.
Key Properties of Anti-static PVC

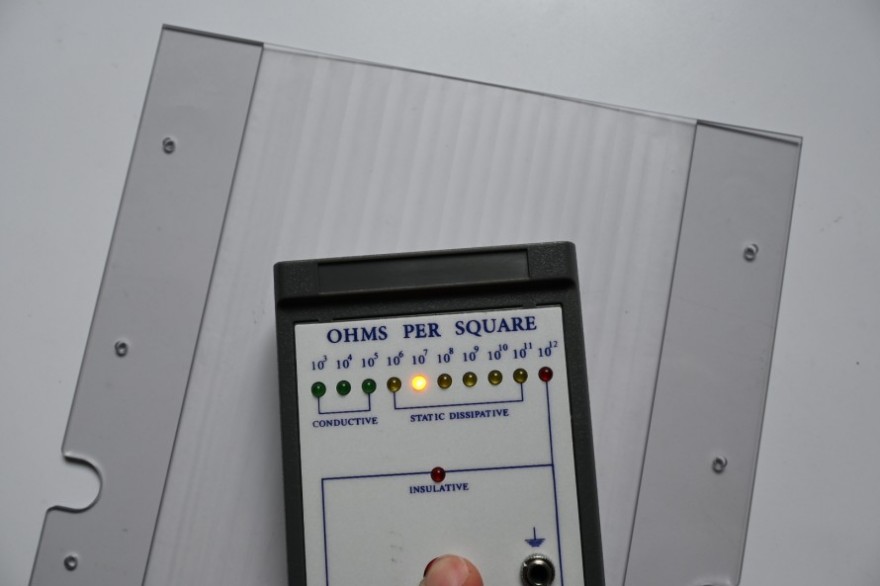

1. Stable Anti-static Performance: Surface resistance is typically controlled within the 10⁶–10⁸ Ω range (reaching up to 10⁹ Ω for some flooring types), effectively dissipating static electricity and preventing charge accumulation; performance remains stable despite fluctuations in temperature and humidity.
2. Excellent Flame Retardancy: Most products meet the UL 94 V-0 flame retardancy standard; they are self-extinguishing, exhibit slow flame spread during combustion, and offer a high level of safety.
3. Chemical Resistance: Highly resistant to weak acids, weak alkalis, and various chemical solvents; not easily corroded, making it suitable for demanding environments such as cleanrooms.
4. High Mechanical Strength: Features high surface hardness and scratch resistance, combined with excellent impact and wear resistance; resistant to cracking and deformation.
Physical and Aesthetic Properties
1.High Light Transmission: The transparent version offers light transmission exceeding 73%; the surface is flat and smooth, with various color options available, including clear, smoke, and ivory.
2.Water and Moisture Resistance: The base material is hydrophobic with a dense structure, resulting in low water absorption (approximately 0.2%) and excellent resistance to moisture and mold.
3.Ease of Processing: Suitable for cold bending, cutting, and splicing/installation; offers a wide range of customizable thicknesses (typically 1–10 mm for sheets and 2–3.5 mm for flooring).
Limitations and Precautions
(1)Limited Stain Resistance: Compared to homogeneous through-body flooring, some anti-static PVC surfaces have slightly inferior stain resistance; they are prone to discoloration or darkening over prolonged use and require regular cleaning and maintenance.
(2)Limited Solvent Resistance: While resistant to weak acids, the material has poor resistance to concentrated oxidizing acids (such as concentrated sulfuric acid and nitric acid), as well as aromatic and chlorinated hydrocarbons; contact with these substances can cause corrosion.
(3)Service Life Limitations: For products with a surface-coated anti-static layer, the anti-static performance may degrade over time. It is generally recommended to evaluate the flooring for replacement every 3–5 years to ensure the continued effectiveness of electrostatic protection.
This material is widely used in semiconductor cleanrooms, electronics assembly lines, data center server rooms, and facilities housing precision instruments sensitive to static electricity.
Anti-static PVC is primarily used in the electronics and semiconductor sectors, cleanrooms, and precision manufacturing, protecting sensitive equipment and products by dissipating static electricity. It is utilized in various forms, ranging from flooring and spatial partitions to auxiliary production materials.
1.Flooring and Spatial Protection
(1)Anti-static Flooring: Widely used in electronics production lines, cleanrooms, telecommunications rooms, and computer server rooms to prevent static electricity from the human body from damaging components. It is also suitable for smart office buildings, hospital laboratories, and other environments requiring contamination control and anti-static properties.
(2)Sheets and Partitions: Used for equipment viewing windows, partition walls, door panels, and equipment enclosures in cleanrooms; they prevent static buildup and dust attraction in semiconductor, LCD, and optical manufacturing processes.
(3)Grid Curtains and Strip Curtains: Used for partitioning cleanrooms in the electronics, food processing, and cold storage industries, effectively blocking static electricity and dust.
2.Production and Packaging Auxiliaries
(1)Conveyor belts: Primarily used in SMT placement, circuit board transfer, and precision component assembly stations to reduce the risk of electrostatic discharge (ESD) damage to components.
(2)Protective films and packaging: Suitable for protecting smooth surfaces—such as glass, lenses, and electronic parts—as well as for industrial packaging applications; they are anti-static and leave no adhesive residue.
(3)Protective gloves: Used in cleanroom environments such as semiconductor manufacturing, hard disk drive production, and biopharmaceuticals; they feature low particle generation and anti-static properties.
Additionally, these materials are utilized in high-risk, static-sensitive sectors—including aerospace and chemical industries requiring explosion-proof measures—to ensure safe system operation.
