Balanced Weave Metal Conveyor Belts are also known as spiral wire link conveyor belts,
is the most commonly used belt for woven wire mesh conveyor belts.

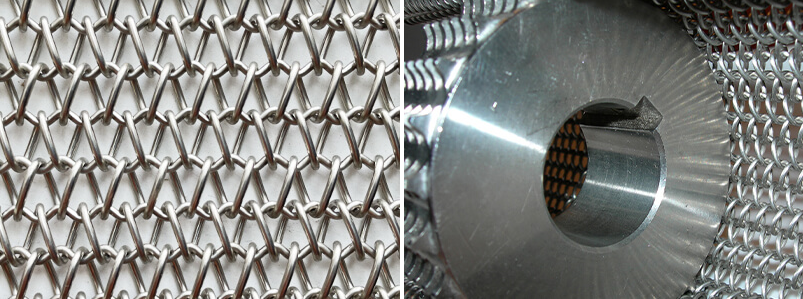

Balanced Weave Conveyor Belt is a stainless steel balanced woven belt with left and right-hand wound spirals, connected by crimped cross wires.
At the sides of the belt, the cross wire is welded to the spiral wire. Balanced weave belts can be used for a virtually infinite number of applications.
Ranging from super strong for conveying heavy loads over large widths or conveying very hot products to very dense weaves for small products,
unsorted goods or products requiring stable support.

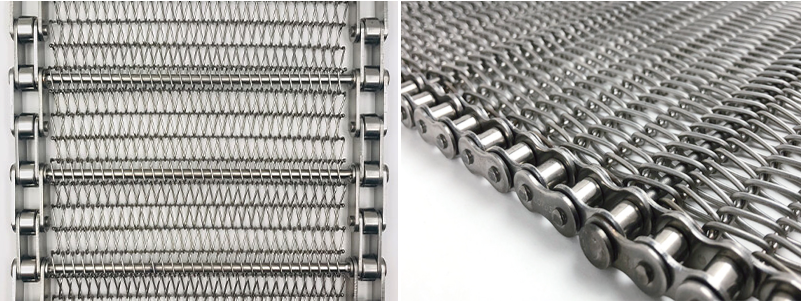

Balanced Weave Conveyor Belts can be executed with chains at both sides. The connection between the chains and the belt is mostly by means of extra cross rods going through the spiral of the belt and trough the chains. The spiral part of the belt will carry the product. The chains will drive and guide the spiral part. Driving this belt is easy by means of chain sprockets.
Balanced Spiral Woven Belts are manufactured in compliance with the latest food safety requirements for food processing equipment such as FDA,
GMP and 1935/2004/EC. This ensures our customers a belt that is fit for use in the most demanding food processing applications.
Spiral wire link belts are suitable for a wide range of active food contact applications
such as:Baking, Frying, Drying, Cooling, Freezing, Pasteurizing,etc.
Balanced Weave Conveyor Belt can be used in the temperature range of -50º to + 1350ºC.
The length and width of the conveyor belt can be customized according to demand.

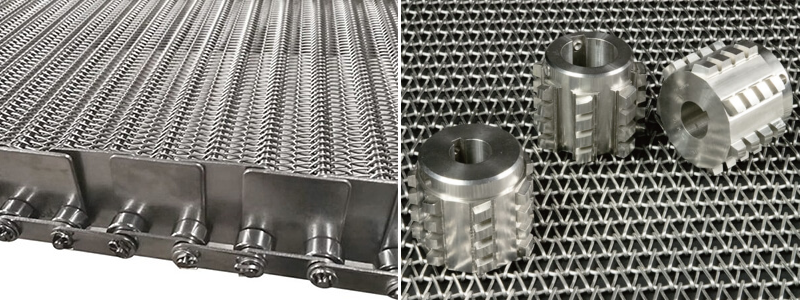

The stainless steel Balanced Weave Conveyor Belts can additionally be equipped with edge plates and flights.
The pins can be bent upwards in some belt types of the spiral wire link belts which will create a standing edge.
If you are interested in the product, contact 2bvideo.com for more information for more information
