Equipment Introduction
An orbital ring wrapping machine is a piece of automated packaging equipment that wraps stretch film around a product by rotating a roll of film around it .Unlike traditional wrappers that rotate the product itself, an orbital wrapper keeps the product stationary on a conveyor while a ring spins around it, making it ideal for long, oddly shaped, or heavy items.
We offer a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.
Specification
|
Rotating ring inner diameter |
1200mm, 1800mm, 2000mm |
|
Wrapping dimension |
Width: 800-1000mm; Height: 600-900mm; Length: 2,000-6,000mm |
|
Rotating ring speed |
Max. 35rpm |
|
Compressed air pressure |
0.5Mpa |
|
Air consumption |
10L/M |
|
Motor power |
rotating ring: 1.5kw 380V, 50HZ, 3phase |
|
Color of powder coating |
Main machine: RAL5010; Film carriage: RAL1021 |
Rotating ring
Inner diameter: 1800mm;
Rotating speed: max. 35RPM, frequency adjustable
Gearbox motor: 1.5kw;
Film carriage
Mechanical stretch film carriage
Width: 250mm;
Core size: 3’’;
Film roll diameter: max 240mm
Thickness: 14-35μm
Auto film feeding and cutting unit
Hold the film head on top of pallet for auto feeding;
Automatically cut the film after wrapping and hold film for the next pallet;
Pneumatic components: Festo brand
Air consumption: 1000ml
Air pressure: 0.4-0.6Mpa
Control System
PLC electric control system, touch screen panel
Ring rotating speed controlled by the inverter
Start and finish cycles are controlled by photocells
the wrapping layers, the wrapping cycles, and the time of top wrapping.
4-8 programs can be set in the PLC system for different packing options.
The safety command can be added on the control program, add PLC extension module to ensure the safety of the machine.
The operating parameter can be set on touch screen, more convenient for operation.
Photo-eye will detect the height and length of the pallet automatically.
Air resource with single direction valve to stop air release when pressure not steady.
The driving speed of rotary ring, conveyor can be adjustable individually.
The wrapping machine is powered with no wrap/manual/automatic wrapping switch function, in order to ensure the better operating.
The machine is equipped with running warning light.
The machine is equipped with Ethernet interface, used for outputting the related information of the wrapping machine (Include the production quantity, mechanical efficiency, fault information etc.)
Option:
Wrap position chain conveyor
Infeed/outfeed conveyor
Ring diameter: 600mm; 800mm; 1000mm; 1200mm up to 2200mm.

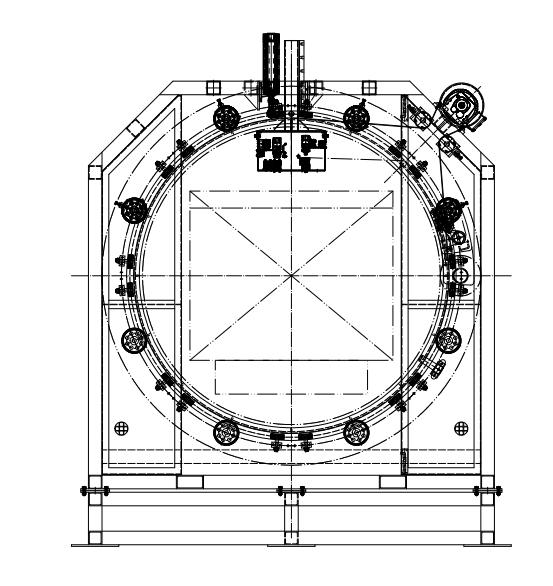

Drawing reference:

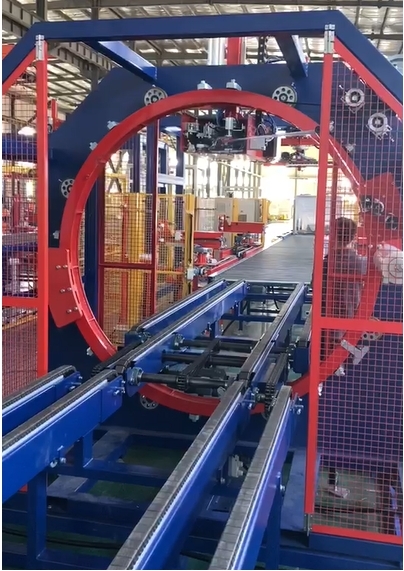

Photo reference:
(The above picture is just for reference. Please refer to the final design)
