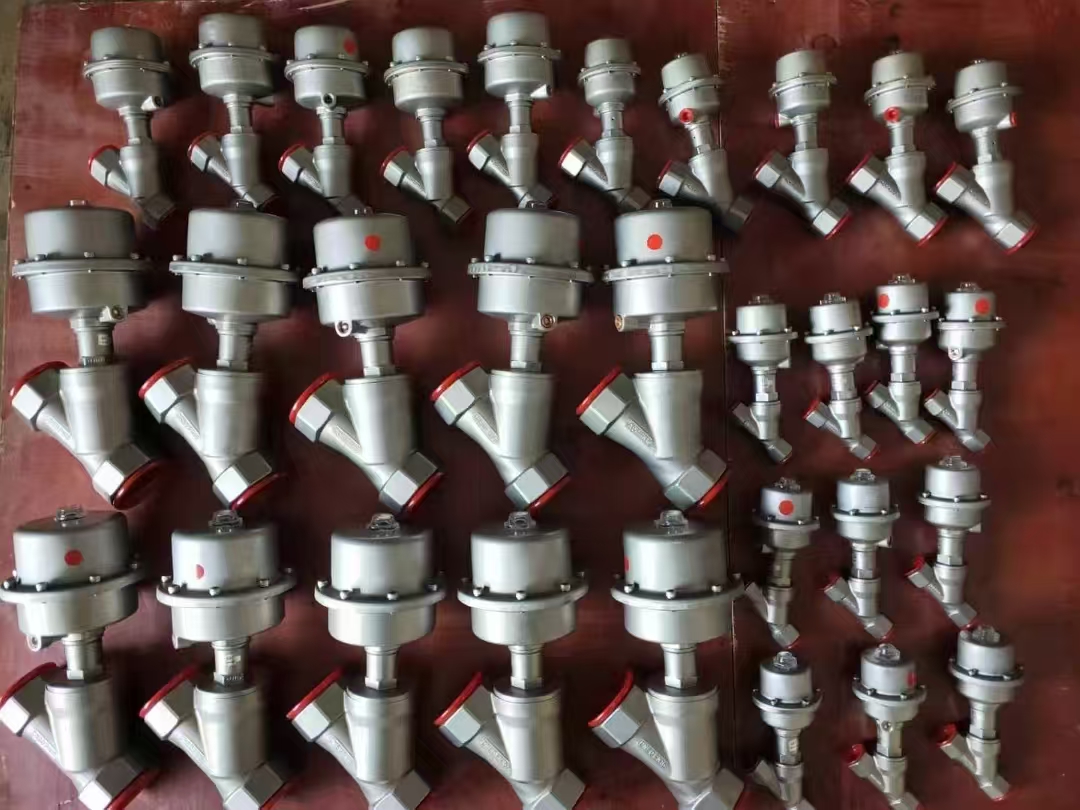

Pneumatic angle seat valvesare particularly well-suited for applications requiring frequent switching or handling media with particulates, viscosity, or a tendency to scale (e.g., in industries such as food and beverage, textile printing and dyeing, wastewater treatment, and chemicals).
1. Smooth Flow Path: Minimal risk of clogging, low resistance, and high flow capacity.
2. Rapid Response: Lightning-fast opening/closing speeds driven by pneumatic cylinders.
3. Reliable Sealing: Long-term resistance to leaks (air or liquid) even after prolonged use.
4. Simple Maintenance: Easy disassembly for cleaning and upkeep, ensuring durability.
Pneumatic Angle Seat Valve: Comprehensive Overview
1. Definition & Structure
Apneumatic angle seat valveis a type of pneumatically actuated angle-seat globe valve that combines the convenience of pneumatic control with a compact, angular design. Its key components include:
• Pneumatic Actuator: Drives valve operation via compressed air, utilizing a piston or diaphragm for rapid opening/closing.
• Angle-Seat Valve Body: Features a 90° angular design, enabling fluid flow with a right-angle turn, ideal for space-constrained piping systems.
• Sealing Assembly: High-wear-resistant materials (e.g., PTFE, stainless steel) ensure long-term sealing performance.
2. Operating Principle
1. Pneumatic Control:
• Compressed air enters the actuator through an air inlet, moving the piston or diaphragm.
• The piston drives a connecting rod to shift the valve plug, enabling opening/closing.
• Remote automation is achieved via solenoid valves or proportional valves.
2. Fluid Control:
• When open, fluid flows from the inlet, makes a 90° turn, and exits through the outlet.
• When closed, the valve plug tightly seats against the valve body, blocking fluid flow.
3. Key Features
• Rapid Response: Millisecond-level switching for high-frequency applications (e.g., filling, cleaning systems).
• High Sealing Performance: Metal or soft-seated designs resist high pressure and corrosion, with low leakage rates (ISO 5208 compliant).
• Compact Design: Angular layout minimizes installation space requirements.
• Durability: Stainless steel (304/316L) or brass bodies withstand harsh conditions (high temperature, pressure, corrosive media).
• Low Maintenance: Modular design simplifies disassembly and cleaning, reducing downtime.
4. Applications
1. Food & Beverage:
• CIP (Clean-in-Place) systems, fillers, sterilization equipment (hygienic designs with dead-space-free structures).
2. Pharmaceuticals & Biotechnology:
• Pure water treatment, sterilization units, fermenter control (GMP-compliant).
3. Chemical & Petroleum:
• Corrosive media handling, reactor control (acid/alkali-resistant materials).
4. Water Treatment & Environmental Protection:
• Wastewater treatment, reverse osmosis systems, chemical dosing (anti-clogging designs).
5. Other Fields:
• Steam systems, gas control, laboratory equipment.
5. Technical Specifications (Example)
【表格】
Parameter Typical Values
Nominal Diameter DN15–DN100 (1/2"–4")
Working Pressure 0–16 bar (up to 40 bar for some models)
Temperature Range -10°C to +180°C (material-dependent)
Media Compatibility Gases, liquids, steam, corrosive fluids
Control Modes Normally Open (NO)/Normally Closed (NC)
Air Supply Pressure 4–8 bar
Protection Rating IP65 (dust/water-resistant)
6. Selection Criteria
1. Media Compatibility:
• Choose valve body and seal materials (e.g., PTFE, EPDM, Viton) based on fluid properties (corrosiveness, viscosity, temperature).
2. Pressure & Temperature:
• Verify rated pressure and temperature ranges meet operational demands.
3. Flow Requirements:
• Select port size based on pipeline diameter and flow rate (e.g., DN25 ≈ 10 m³/h).
4. Control Method:
• Opt for NO/NC configurations or integrate position feedback sensors for precision control.
5. Installation Environment:
• Consider explosion-proof or corrosion-resistant certifications (e.g., ATEX).
7. Maintenance & Troubleshooting
• Regular Inspections:
• Check air supply pressure, actuator sealing, and valve plug wear.
• Cleaning Recommendations:
• Disassemble and clean periodically for food/pharma applications to prevent bacterial growth.
• Common Issues:
• Leakage: Inspect seals for aging or damage.
• Slow Operation: Clean air filters or replace piston seals.
• Failure to Open/Close: Check solenoid valves or air path blockages.
