4WE6E61/CG24N9Z5L Solenoid-Operated Relief Valve

4WE6E61/CG24N9Z5L Solenoid-Operated Relief Valve

5 month ago

2 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

I. Product Overview

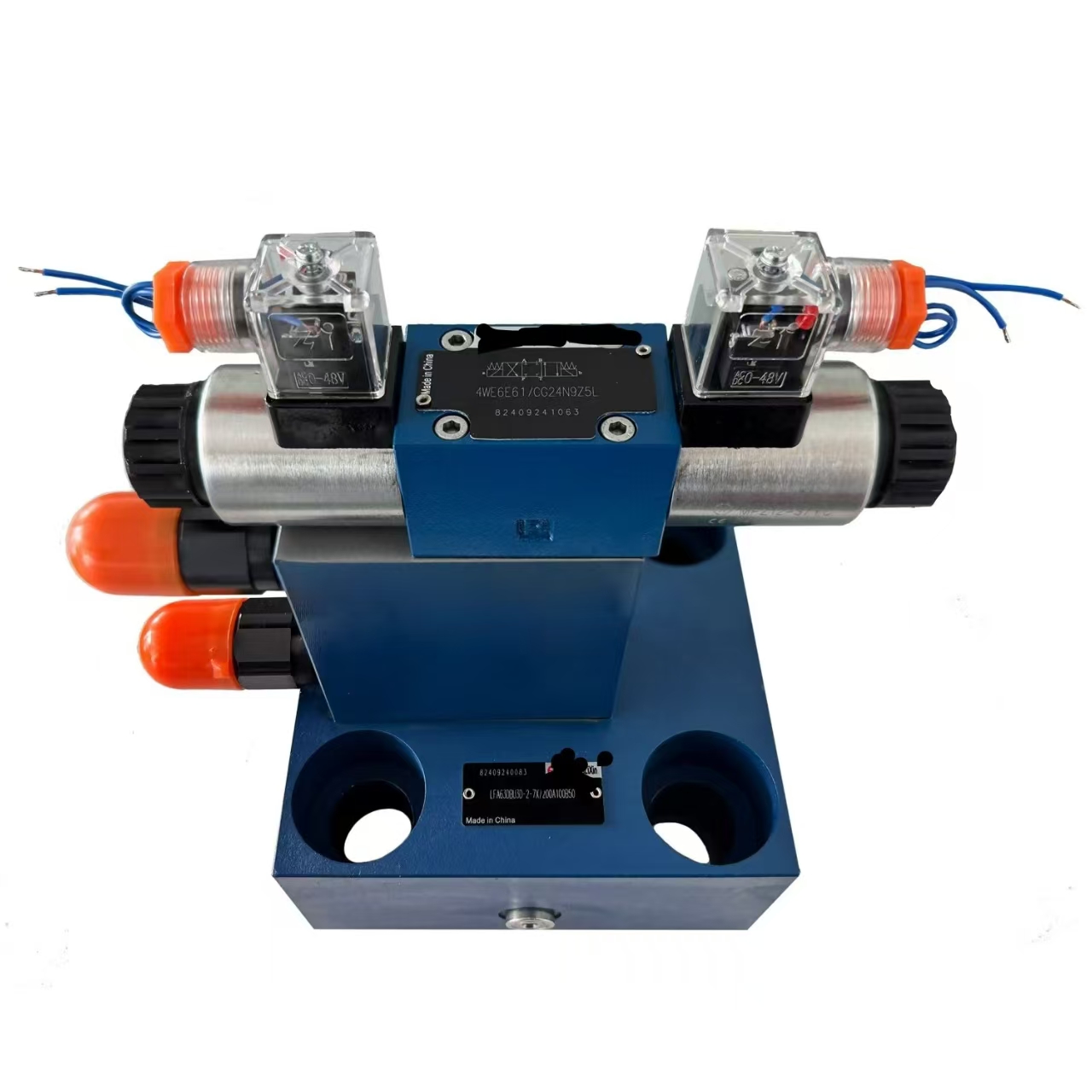

The4WE6E61/CG24N9Z5Lis a solenoid-operated relief valve manufactured by Beijing Huade or other renowned manufacturers, classified as a cartridge valve. This valve integrates electromagnetic control with pressure relief functionality, enabling precise pressure regulation to ensure stable operation of hydraulic systems.

------

II. Product Features

1. Solenoid Control:

• Remote control via solenoid ensures fast response and high control accuracy.

• The solenoid typically features a protection rating (e.g., IP65), making it resistant to oil, dust, and moisture.

2. Pressure Relief Function:

• Automatically opens when system pressure exceeds the set value, diverting excess pressure oil back to the tank to protect the system from overpressure damage.

• Adjustable relief pressure to meet diverse application requirements.

3. Cartridge Design:

• Compact and space-saving, facilitating easy installation in hydraulic systems.

• Modular construction simplifies valve replacement and maintenance.

4. High Reliability:

• Constructed from high-strength materials to ensure stable operation under harsh conditions.

• Precision-machined and rigorously tested for superior sealing performance and durability.

------

III. Technical Specifications

• Model: 4WE6E61/CG24N9Z5L

• Connection Type: Typically flange-mounted for easy installation and removal.

• Applicable Medium: Hydraulic oil or other mineral oil-based fluids.

• Nominal Diameter: Determined based on specific model and application requirements.

• Operating Pressure Range: Designed for medium- to high-pressure hydraulic systems; refer to the product manual for exact range.

• Power Supply: 24V DC (indicated by "CG24"), compatible with most industrial control systems.

• Control Method: Solenoid-operated, enabling remote and automated control via external circuitry.

------

IV. Applications

The4WE6E61/CG24N9Z5Lsolenoid-operated relief valve is widely used in hydraulic systems requiring precise pressure control, such as:

• Machine Tools: For controlling hydraulic system pressure in machining centers to ensure accuracy and equipment safety.

• Plastic Machinery: In injection molding machines, for regulating injection and holding pressures to enhance product quality and production efficiency.

• Metallurgical Equipment: For pressure control in hydraulic systems of metallurgical machinery, ensuring stable operation and safety.

• Construction Machinery: In excavators, loaders, and other equipment, for hydraulic system pressure management to improve operational efficiency and reliability.

------

V. Operation and Maintenance

1. Operation:

• Before operation, carefully read and understand the operating instructions and safety precautions in the product manual.

• Set the appropriate relief pressure value based on actual requirements.

• Conduct necessary commissioning and testing before starting the system to ensure proper valve function.

2. Maintenance:

• Regularly inspect the valve's exterior and connections for damage or leaks.

• Clean the valve's filter screen and filters periodically to prevent contaminants from entering the valve body and affecting performance.

• Periodically check the solenoid's operating status to ensure proper engagement and release.

• For component replacement or repairs, use genuine parts and follow the guidance in the product manual.
