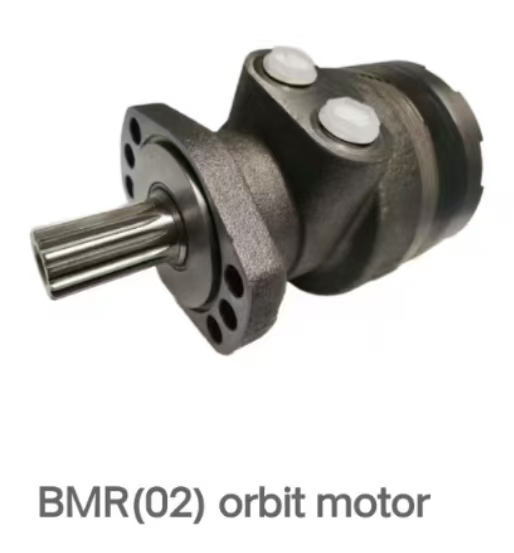

BMR(02) Orbit Motor Hydraulic (BMR Series Gerotor Hydraulic Motors)

The BMR series orbit motors are low-speed, high-torque hydraulic motors featuring an advancedGeroler gear setandshaft-distribution valve design. They are compact, lightweight, efficient, and durable, widely used in agricultural machinery, construction equipment, forestry machinery, and industrial applications.

------

I. Key Features

1. Low Speed, High Torque

• Output speed range:10–2000 RPM(varies by model).

• Maximum torque up to3000 N·m(e.g., BMR-800 model), ideal for heavy-duty starting and continuous high-load operations.

2. High Efficiency & Reliability

• Geroler gear set ensures low starting pressure, smooth operation, and high mechanical efficiency.

• Shaft-distribution valve automatically compensates for leakage under high pressure, ensuring long-term reliability.

3. Compact & Durable

• Cast iron housing for high strength in harsh environments.

• Deep groove ball bearings or tapered roller bearings handle high radial and axial forces.

• Built-in check valve eliminates the need for external drain lines, simplifying system design.

4. Flexible Adaptability

• Supports parallel or series configurations for varying power requirements.

• Interchangeable with similar products from brands likeETN Char-Lynn, M+S, and SAM.

------

II. Technical Specifications (Typical BMR Series Models)

【表格】

Parameter BMR-160 BMR-400

Displacement (cm³/rev) 157.2 410.9

Continuous Speed (rpm) 375 (max 475) 305 (max 365)

Continuous Torque (N·m) 380 (peak 430) 1080 (peak 1260)

Continuous Pressure (MPa) 17.5 (peak 20) 18 (peak 21)

Max Flow Rate (L/min) 60 125

Weight (kg) 8.5 22

------

III. Applications

1. Agricultural Machinery

• Combine harvesters, seeders, irrigation reels (driving harvesting, rotation, lifting).

2. Construction Equipment

• Excavators, loaders, cranes (slewing mechanisms for stable low-speed rotation).

3. Forestry Machinery

• Loggers, wood grabs, winches (high-load and field adaptability).

4. Industrial Equipment

• Plastic injection molding machines, presses, conveyors (precise speed/torque control).

5. Marine & Offshore Engineering

• Winches, anchor handling, oceanographic equipment (corrosion-resistant design for marine use).

------

IV. Selection Guidelines

1. By Load Requirements

• Light-duty (e.g., small sweepers):BMR-50 to BMR-100(51.7–100.5 cm³/rev).

• Heavy-duty (e.g., forestry winches):BMR-250 to BMR-800(252.6–801.8 cm³/rev).

2. By Speed Requirements

• High-speed (e.g., conveyors):BMR-50 to BMR-125(750–960 RPM continuous).

• Low-speed (e.g., presses):BMR-315 to BMR-800(175–310 RPM continuous).

3. By System Pressure

• Medium/low-pressure (≤17.5 MPa):BMR-50 to BMR-200.

• High-pressure (≤21 MPa):BMR-250 to BMR-800.

------

V. Maintenance & Precautions

1. Installation Requirements

• Ensure a flat mounting surface and rigid support to avoid vibration.

• Use flexible high-pressure hoses for inlet lines to eliminate stress and prevent pipe-supported motor operation.

2. Hydraulic Fluid Management

• Use clean, anti-wear, anti-oxidizing hydraulic oil with a filtration rating of≥10–15 μm.

• Fill the drain port with hydraulic oil before initial operation to expel air.

3. Regular Maintenance

• Replace hydraulic oil and clean filters every200 operating hours.

• Inspect shaft seals and bearings for wear; replace damaged components promptly.

4. Avoid Misoperation

• Do not exceed pressure ratings to prevent gear wear or seizure.

• Avoid radial loads exceeding specified limits to prevent output shaft damage.
