a Truck Sideboard Latch Lock is designed for "drop-side" or "flatbed" trucks.
If you have a truck with side panels that fold down (like a utility tray or a flatbed), these are the latches that keep those panels standing upright and locked together.
Direction of Force: Instead of pulling a door into a frame, sideboard latches usually pull two panels together (like the side board and the tailgate) or pull a panel down into the truck bed.
Mechanism: Most use an over-centre (or toggle) design. As you pull the handle down, it passes a "point of no return" where the tension itself keeps the handle locked in place.
Profile: These are much smaller and lower-profile than the long vertical bars seen on enclosed trailers.
Over-Centre Latches (Toggle Latches): The most common type. They have a hook or a loop that catches a "keeper" plate. When you flip the lever, it pulls the two parts tight.
Anti-Luce (Bolt) Fasteners: Often seen on "Ute" (utility) trays. These are T-shaped bolts that you rotate 90 degrees to secure a panel. They are famous for being "anti-rattle."
Spring-Loaded Slam Latches: These allow you to simply push the sideboard up until it "clicks" into place automatically, similar to a car door.
Vibration Resistance: Since truck beds bounce and vibrate, these latches are designed not to "pop" open under stress.
Adjustable Tension: Many have a threaded hook that allows you to tighten or loosen the grip as the truck’s panels age or warp.
Safety Catches: High-quality sideboard locks have a small secondary trigger or pin that prevents the main handle from being accidentally bumped open.
Finishes: Usually Zinc Plated (silver look) for standard rust protection or Stainless Steel for heavy-duty/marine use.
| Feature | Cam-Action Latch | Sideboard Latch |
| Primary Use | Enclosed Trailer Rear Doors | Flatbed/Drop-side Truck Panels |
| Size | Large (usually 3–7 feet tall) | Small (usually 6–10 inches) |
| Locking Style | Padlock through a bridge hasp | Over-centre tension / Safety pin |
| Installation | Bolt-on or Weld-on to door face | Usually mounted at the corners of the bed |

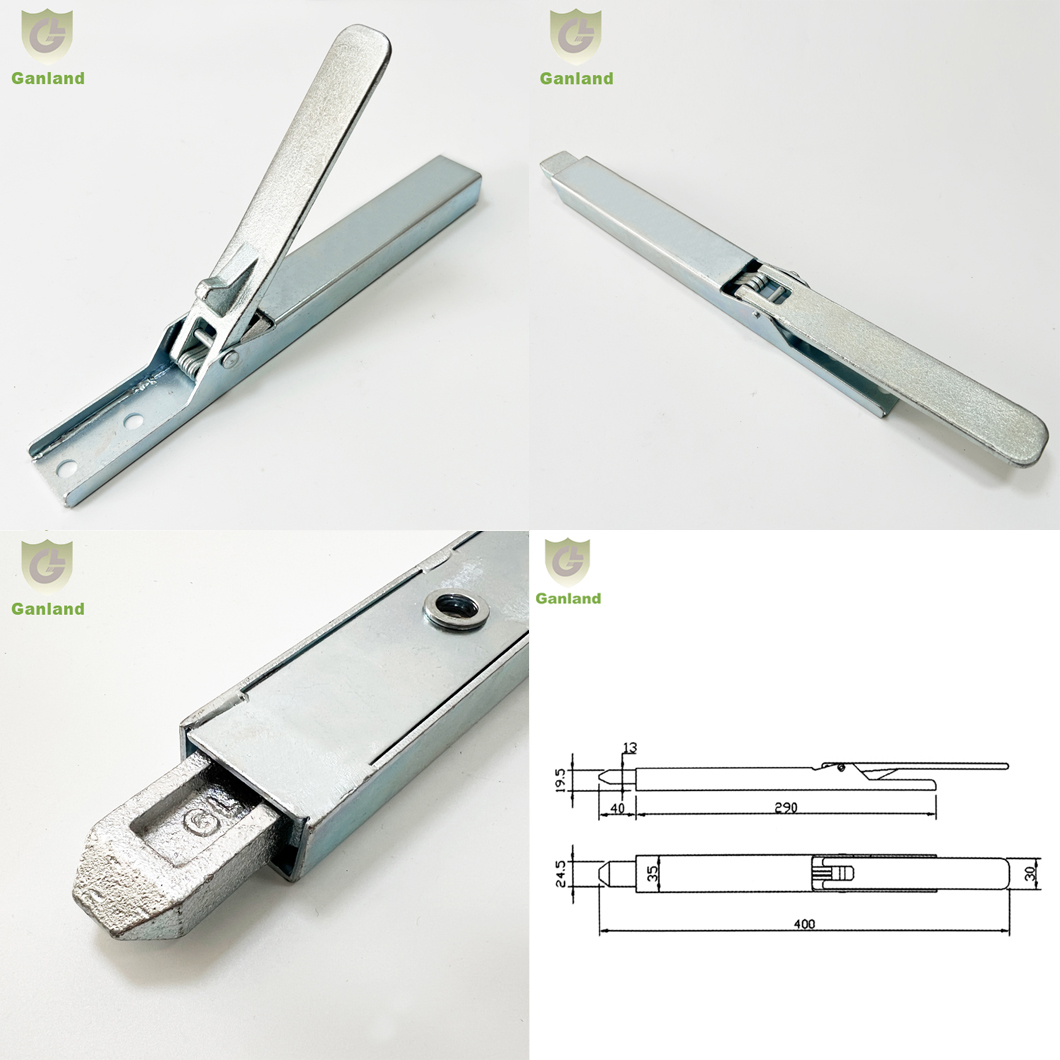

GL-12123 Steel Truck Van Sideboard Latch Lock weight is 1.0kgs, length 400mm.
Jiaxing Ganland Auto Parts Co., Ltd. is a professional manufacturer specializes in designing and producing different types of machinery parts for trucks and other commercial vehicles. Our main products include Truck Trailer Cam Door Locks, Toolbox Serie, Truck Door Hinges, Fastener Serie, Cargo Control, Curtainsider Truck Parts, Wing Opening Van Parts, Rubber Bumpers & Buffers, Trailer Mudguard, Truck Door Seal, Excavator Body Parts, and Other Hardware And Accessories
