I. Product Overview

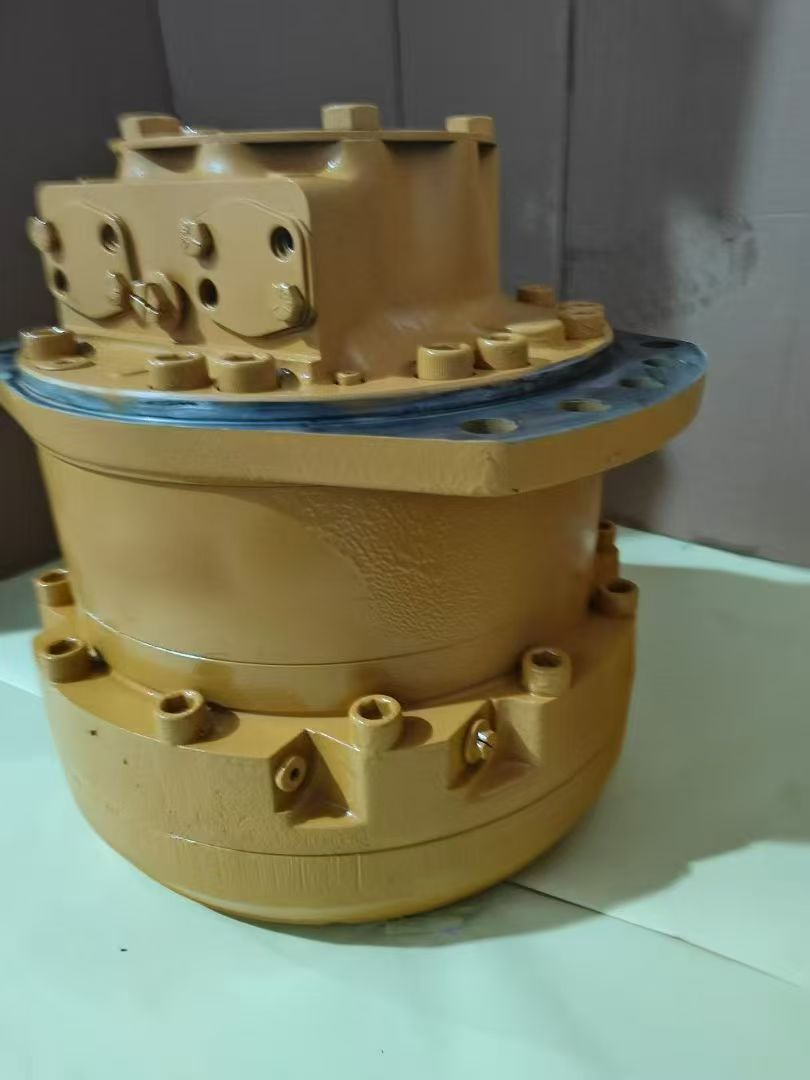

The Road Roller High-Torque Hydraulic Motor MK35/47 is a high-torque hydraulic motor specifically designed for road rollers. It adopts a radial piston structure and features high torque output, high efficiency, and high reliability, meeting the walking drive requirements of road rollers under various working conditions.

II. Product Features

1. High Torque Output: The MK35/47 hydraulic motor can provide powerful torque output, satisfying the high-load demands of road rollers during compaction operations.

2. High Efficiency: Utilizing advanced hydraulic design and manufacturing processes, this motor achieves high mechanical and volumetric efficiencies, reducing energy losses and enhancing overall system efficiency.

3. High Reliability: Key components within the motor, such as pistons and bearings, are crafted from high-quality materials and undergo precision machining and special treatments. They exhibit excellent wear resistance and corrosion resistance, enabling long-term stable operation in harsh working environments.

4. Excellent Low-Speed Stability: The MK35/47 hydraulic motor maintains smooth operation even at low speeds, with a wide speed regulation range, meeting the varying speed requirements of road rollers during different operations.

5. Reversible Rotation: The rotation direction of this motor can be reversed, adapting to different working conditions.

6. Flexible Installation: The motor offers multiple installation methods and interface sizes, facilitating easy connection and integration with the transmission system of road rollers.

III. Application Fields

The MK35/47 hydraulic motor is widely used in various types of road rollers, including but not limited to:

1. Single-Drum Vibratory Road Rollers: Serving as the walking drive motor, it provides strong traction and compaction capabilities.

2. Double-Drum Vibratory Road Rollers: Used for driving both the front and rear drums, enabling smooth travel and efficient compaction of the road roller.

3. Pneumatic Tired Rollers: As the drive motor, it supplies sufficient torque to drive heavy-duty tires for compaction operations.

IV. Technical Parameters (Examples)

The following are some possible technical parameter examples, which may vary depending on different manufacturers and models:

【表格】

Parameter MK35 MK47

Displacement (cc/rev) 35 47

Rated Pressure (bar) 250 250

Peak Pressure (bar) 450 450

Rated Torque (Nm/bar) 0.94 (to be calculated specifically based on displacement) 1.26 (to be calculated specifically based on displacement)

Continuous Speed (rpm) 700 700

Maximum Speed (rpm) 1000 1000

Weight (kg) Approximately 22 Approximately 28

V. Selection and Configuration Recommendations

1. Select the Appropriate Displacement Based on Road Roller Model and Operational Requirements: A larger displacement results in higher torque output and flow rate from the motor, but also increases system energy consumption and costs. Therefore, comprehensive consideration should be given to factors such as the road roller model, operational weight, and compaction requirements when making a selection.

2. Consider the Installation Method and Interface Size of the Motor: Ensure that the selected motor can be well-matched and connected to the transmission system of the road roller.

3. Pay Attention to the After-Sales Service and Spare Parts Supply Situation of the Motor: Choose a manufacturer with good after-sales service and spare parts supply channels to ensure timely technical support and maintenance services during use.
